502790-5091

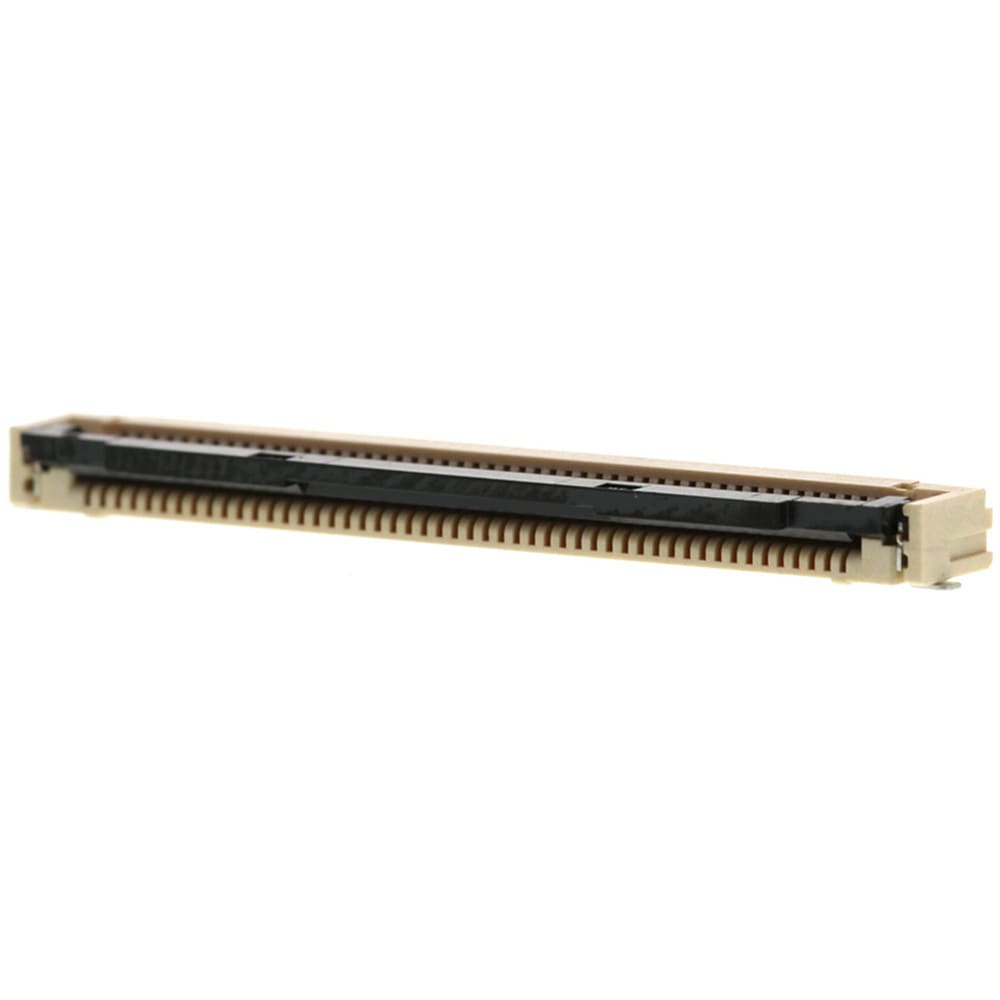

0.5 FPC ZIF E/O BTMHsgAssy50CktEmbsTpPkg | Molex Incorporated 502790-5091
Availability: In Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 502790-5091 by Molex and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 502790-5091
| Part Name | 502790-5091 |
| Manufacturer | Molex |
| Category | Connectors |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Current Rating (A) | 500 (mA) |
| Minimum Operating Temperature | -40 (°C) |
| Mounting Type | Surface Mount |
| Voltage Rating (V) | 50 Vrms ac/dc |
| Gender | Female |
| Termination Method | SMT |
| Contact Position | Bottom |
| Housing Material | Liquid Crystal Polymer |
| Number Of Rows | 1 |
| Series Number | 502790 |
| Termination Type | ZIF |
| Pitch | 0.5 (mm) |
| Insertion Force | ZIF |
| Contact Plating | Gold |
| Number Of Contacts | 50 |
| Maximum Operating Temperature | +105 (°C) |
| Contact Material | Phosphor Bronze |
Inventory for the 502790-5091 by Molex from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
6,164
|
|
Visit Site | |
|
★ Featured
|
1,108
|
|
Visit Site | |
|
★ Featured
|
22,063
|
N/A | Visit Site | |
| Arrow Electronics |
8,000
|
6,000 x $1.35
|
Visit Site | |
| Onlinecomponents |
4,000
|
|
Visit Site | |
| Verical |
4,000
|
2,000 x $1.59
|
Visit Site |
No issues have been reported for the 502790-5091
