503154-1090

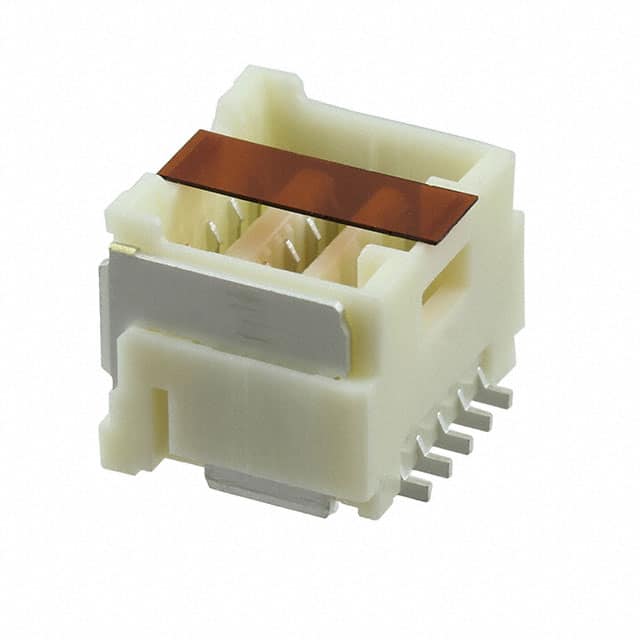

1.5 W/B Dl ST RecAssy10CktEmbsTpPkgBeige | Molex Incorporated 503154-1090
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 503154-1090 by Molex and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 503154-1090
| Part Name | 503154-1090 |
| Manufacturer | Molex |
| Category | Connectors |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Current Rating (A) | 12 (A) |
| Mounting Type | Surface Mount |
| Voltage Rating (V) | 100 V |
| Series | CLIK-Mate |
| Body Orientation | Straight |
| Termination Method | Crimp |
| Number Of Rows | 2 |
| Series Number | 503154 |
| Contact Plating | Tin |
| Pitch | 1.5 (mm) |
| Number Of Contacts | 10 |
| Type | PCB Receptacle |
| Contact Material | Copper |
