503182-1852
Micro SD Normal UltraLowPro8CktEmbsTpPkg; 503182 | Molex Incorporated 503182-1852
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 503182-1852 by Molex and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

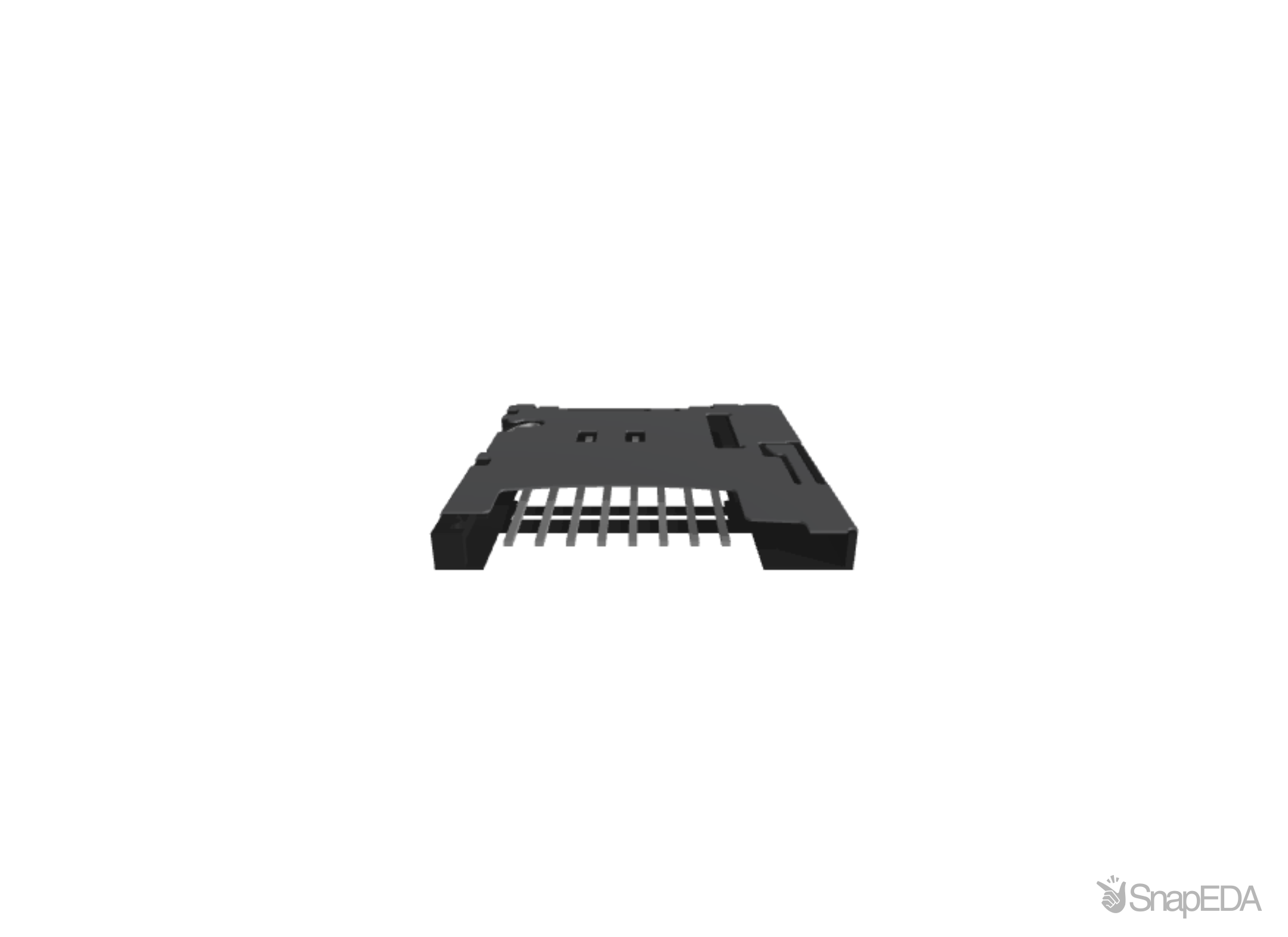

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 503182-1852
| Part Name | 503182-1852 |
| Manufacturer | Molex |
| Category | Connectors |
| RoHS | True |
| Life Cycle Status | Obsolete |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Termination Method | Solder |
| Dimensions | 14.14 x 14.95 x 1.45 (mm) |
| Mounting Type | Surface Mount |
| Gender | Male |
| Series Number | 503182 |
| Depth | 1.45 (mm) |
| Housing Material | Liquid Crystal Polymer |
| Width | 14.95 (mm) |
| Length | 14.14 (mm) |
| Insertion/Removal Method | Push/Push |
| Minimum Operating Temperature | -25 (°C) |
| Pitch | 1.1 (mm) |
| Contact Plating | Gold, Tin |
| Number Of Contacts | 8 |
| Maximum Operating Temperature | +85 (°C) |
| Contact Material | Copper Alloy |
