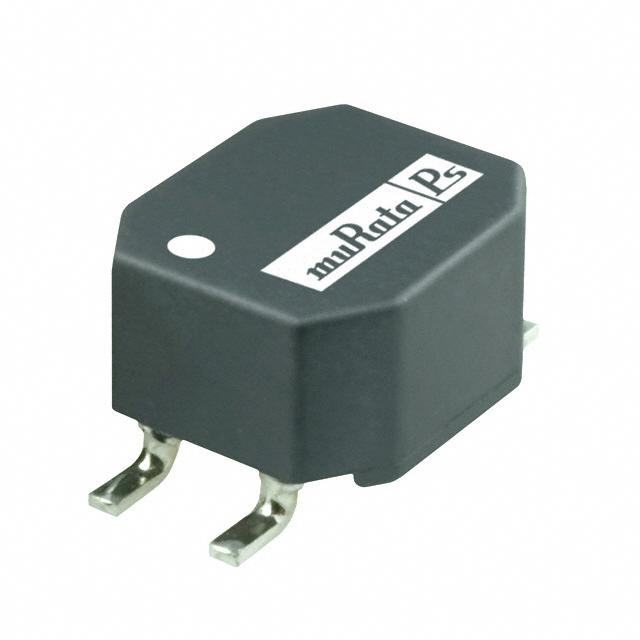

50474C
470 µH @ 100 kHz 2 Line Common Mode Choke Surface Mount 700mA DCR 300mOhm
Availability: In Stock
Package Type: HORIZONTAL-4
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 50474C by Murata and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

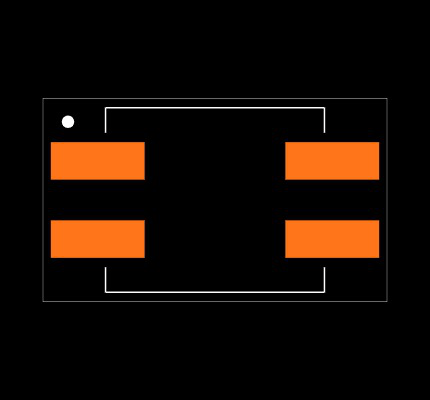

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 50474C
| Part Name | 50474C |
| Manufacturer | Murata Power |
| Category | Surface Mount Inductors |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Dc Resistance | 300 (mΩ) |
| Inductor Construction | Wire-Wound |
| Dimensions | 7 x 5.9 x 3.6 (mm) |
| Maximum Dc Current (A) | 700 (mA) |
| Series | 5000 |
| Depth | 5.9 (mm) |
| Height | 3.6 (mm) |
| Length | 7 (mm) |
| Inductance | 470 μH |
| Maximum Operating Temperature | +85 (°C) |
| Tolerance | -30 → +50 (%) |
| Minimum Operating Temperature | -40 (°C) |
Inventory for the 50474C by Murata from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
15,048
|
|
Visit Site | |
|
★ Featured
|
2,929
|
|
Visit Site | |
|
★ Featured
|
1,000
|
330 x $1.05
|
Visit Site |
No issues have been reported for the 50474C
