505110-5091

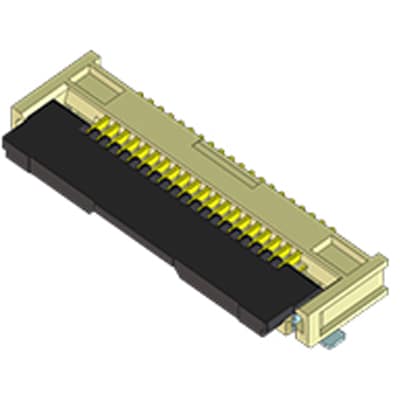

Conn Rect Rt. Angle FFC/FPC 0.50MM Pitch 50 Circuit Bottom Contact ZIF | Molex Incorporated 505110-5091
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 505110-5091 by Molex and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 505110-5091
| Part Name | 505110-5091 |
| Manufacturer | Molex |
| Category | Connectors |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Contact Material | Phosphor Bronze |
| Current Rating (A) | 500 (mA) |
| Minimum Operating Temperature | -40 (°C) |
| Mounting Type | Surface Mount |
| Voltage Rating (V) | 50 Vrms ac/dc |
| Gender | Female |
| Body Orientation | Right Angle |
| Pitch | 0.5 (mm) |
| Contact Position | Bottom |
| Housing Material | Liquid Crystal Polymer |
| Number Of Rows | 1 |
| Termination Type | ZIF |
| Termination Method | Solder |
| Insertion Force | ZIF |
| Contact Plating | Gold over Nickel |
| Number Of Contacts | 50 |
| Maximum Operating Temperature | +105 (°C) |
| Series Number | 505110 |
Inventory for the 505110-5091 by Molex from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
23,136
|
|
Visit Site | |
|
★ Featured
|
18,000
|
775 x $0.45
|
Visit Site | |
| Arrow Europe |
6,000
|
|
Visit Site | |
| Onlinecomponents |
1,800
|
|
Visit Site | |
| Verical |
2,600
|
2,600 x $0.90
|
Visit Site |
No issues have been reported for the 505110-5091
If you experienced any issues with the symbol or footprint, please report it.
