5084618-3
80 Position Connector Receptacle, Outer Shroud Contacts Surface Mount Gold
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 5084618-3 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

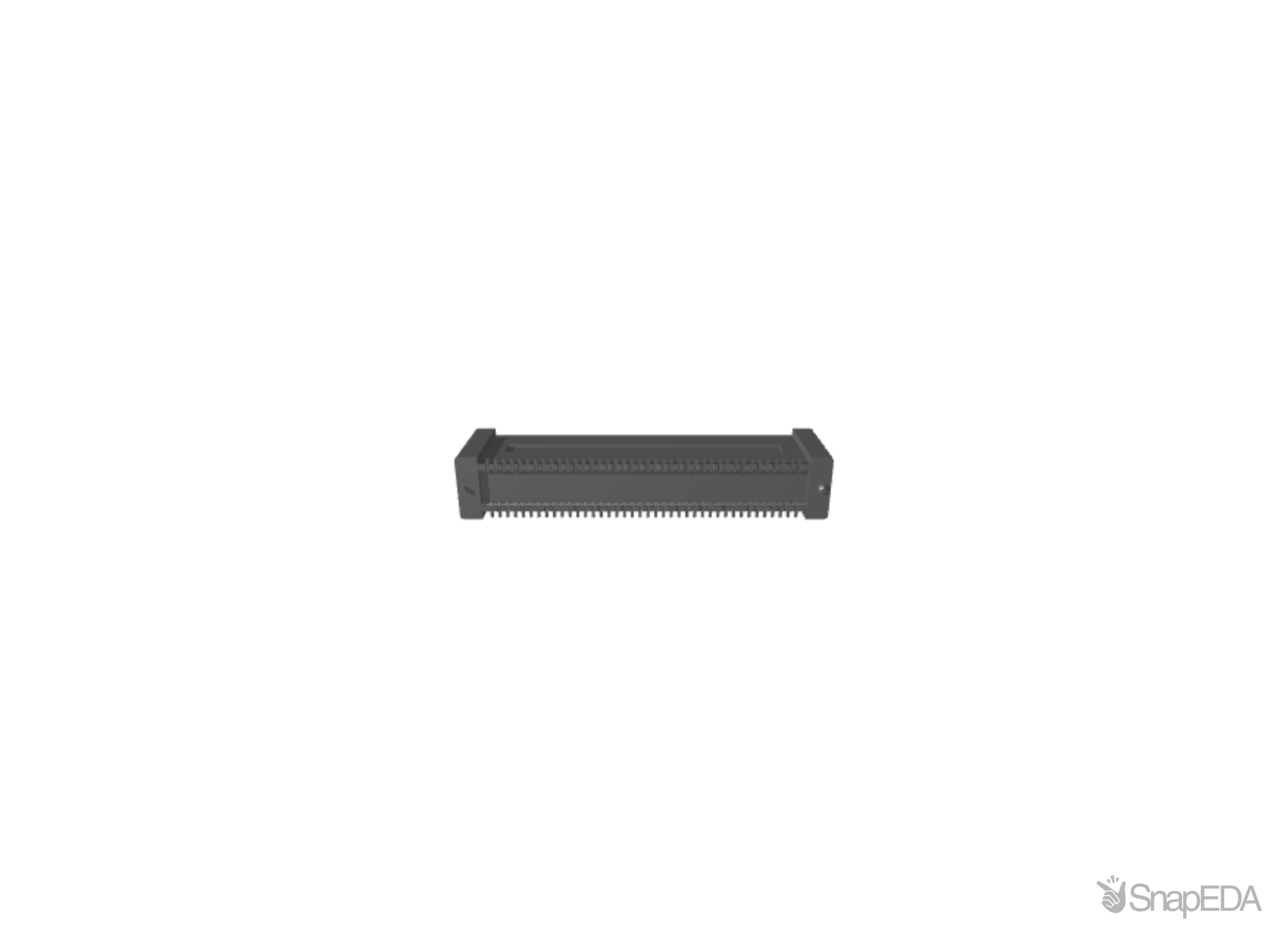

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 5084618-3
| Part Name | 5084618-3 |
| Manufacturer | TE Connectivity |
| Mating Alignment Type | Polarization |
| Centerline (Pitch) | .031 |
| Circuit Application | Signal |
| Stack Height | 16 |
| Housing Material | Matte |
| Insulation Resistance | 2 |
| Operating Voltage (V) | 100 |
| Locating Post Length | .02 |
| PCB Mount Alignment Type | Positioning Bosses |
| PCB Mount Orientation | Vertical |
| Number of Positions | 80 |
| PCB Mount Retention | Without |
| PCB Connector Assembly Type | PCB Mount Receptacle |
| TE Internal Number | 5084618-3 |
| Connector & Contact Terminates To | Printed Circuit Board |
| Connector System | Board-to-Board |
| Connector Height | .512 |
| Number of Rows | 2 |
| Housing Color | Natural |
| Sealable | No |
| Connector Mounting Type | Board Mount |
| Contact Shape | Square |
| PCB Contact Termination Area Plating Material Thickness | 78.74 |
| Dielectric Withstanding Voltage (Max) (V) | 500 |
| Assembly Process Feature | Pick and Place Cover |
| Operating Temperature Range | -40 – 257 |
| Mating Entry Location | Top |
| Packaging Method | Tape & Reel |
| Packaging Quantity | 200 |
| Stackable | Yes |
| Contact Layout | Inline |
| Mating Alignment | With |
| Contact Mating Area Plating Material | Gold |
| RoHS | True |
| Termination Method to Printed Circuit Board | Surface Mount |
| Contact Base Material | Copper Alloy |
| Cover Material | Steel |
| PCB Mount Alignment | With |
| UL Flammability Rating | UL 94V-0 |
| Contact Mating Area Plating Material Thickness | .76 |
| PCB マウント アラインメント タイプ | Positioning Bosses |
| Contact Current Rating (Max) (A) | .5 |
| PCB Contact Termination Area Plating Material Finish | Matte |
| High Temperature Compatible | Yes |
| Contact Type | Socket |
| PCB Contact Termination Area Plating Material | Tin |
| Board-to-Board Configuration | Mezzanine |
| Packaging Reel Diameter | .5 |
