5102321-2
Ejection Pin, Universal. 14-Position, 2 Rows, Through-Hole, AmpLatch Series | TE Connectivity 5102321-2
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 5102321-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

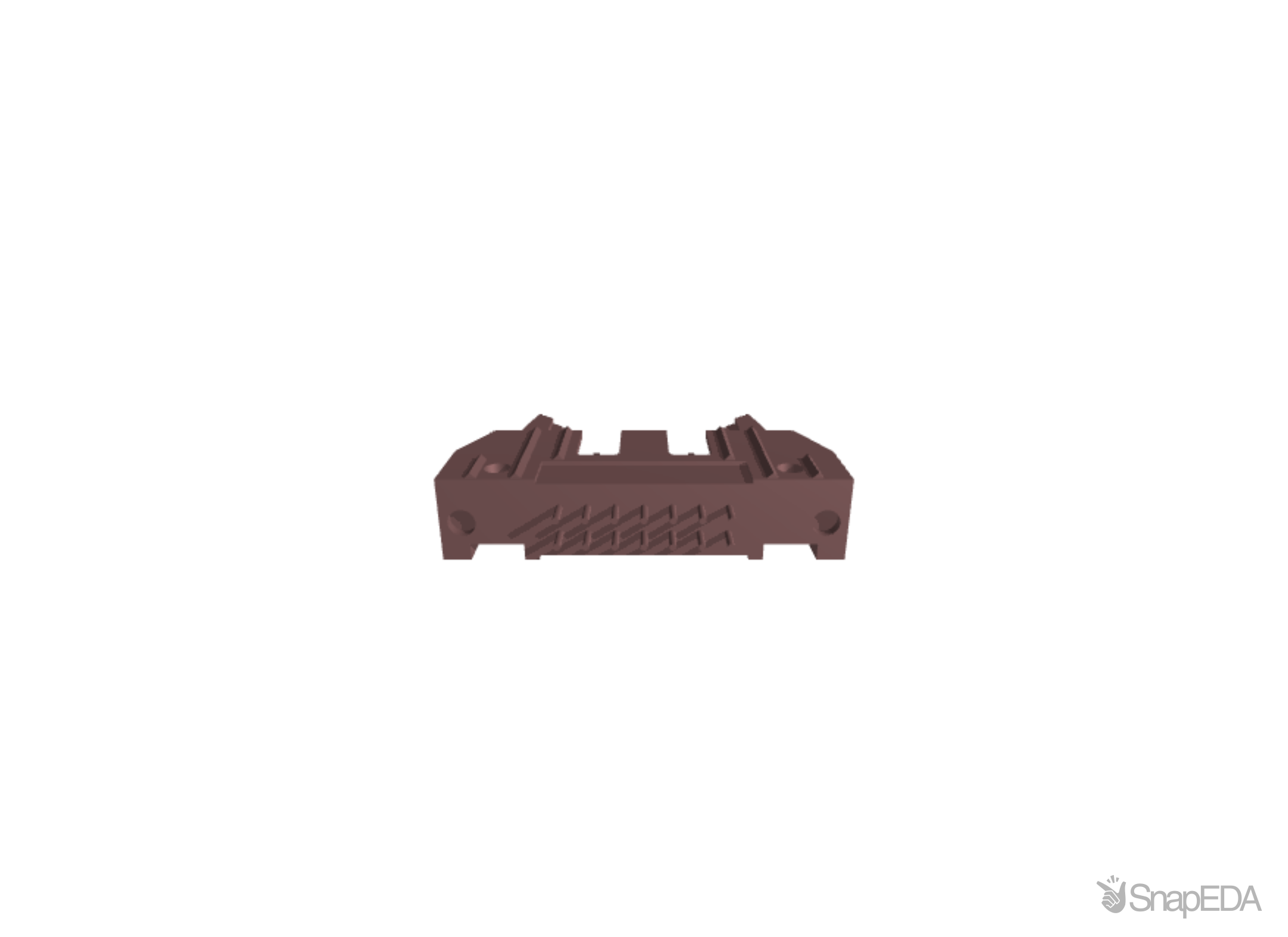

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 5102321-2
| Part Name | 5102321-2 |
| Manufacturer | TE Connectivity / AMP |
| Wire-to-Board | |
| Category | Connectors |
| Mating Alignment Type | Center |
| Centerline (Pitch) | 2.54 |
| Temperature Rating | Standard |
| Circuit Application | Signal |
| Housing Style | 4-Sided |
| Housing Material | Glass Filled Nylon/Polyester |
| Row-to-Row Spacing | 2.54 |
| Insulation Resistance | 5000 |
| PCB Contact Termination Area Plating Material | Tin |
| Operating Voltage (V) | 250 |
| Connector Style | Plug |
| Ejection Latches | With |
| Mating Connector Lock Type | Latch |
| Connector & Contact Terminates To | Printed Circuit Board |
| Profile | Standard |
| PCB Mount Retention | Without |
| PCB Thickness (Recommended) | 3.18 |
| Board Standoff | Without |
| TE Internal Number | 5102321-2 |
| PCB Mount Orientation | Vertical |
| Connector System | Wire-to-Board |
| Termination Method to Printed Circuit Board | Through Hole |
| Number of Rows | 2 |
| Housing Color | Black |
| Header Type | Universal Ejection Pin Headers |
| Contact Underplating Material | Nickel |
| Product Type | Connector |
| Connector Mounting Type | Board Mount |
| Contact Shape | Square |
| Contact Design | Square Post |
| Mating Retention | With |
| Latch Type | Long |
| Operating Temperature Range | -65 to 105 |
| Packaging Method | Tray |
| Connector Type | Header |
| Packaging Quantity | 18 |
| Contact Termination Area Plating Material | Tin |
| Number of Positions | 14 |
| Mating Alignment | With |
| Contact Mating Area Plating Material | Gold Flash over Palladium Nickel |
| Shrouded End Dimension | 3.81 |
| Contact Transmits (Typical) | Signal (Data) |
| RoHS | True |
| Polarization | With |
| Contact Base Material | Copper Alloy |
| Termination Post Length | 3.94 |
| PCB Mount Alignment | Without |
| Post Size | .025 |
| Length | 1.46 |
| Height | 13.94 |
| Panel Mount Feature | Without |
| Contact Current Rating (Max) (A) | 1 |
| Contact Mating Area Plating Thickness | .76 |
| UL Flammability Rating | UL 94V-0 |
| Contact Type | Pin |
| Contact Termination Area Plating Thickness | 100 |
| ??? | Mates with Receptacles |
| Mating Connector Lock | With |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
