5103309-1
SnapVerified
Header Pin Vertical Copper Alloy Thermoplastic 10 0.100 x 0.100 in. Gold | TE Connectivity 5103309-1
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 5103309-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

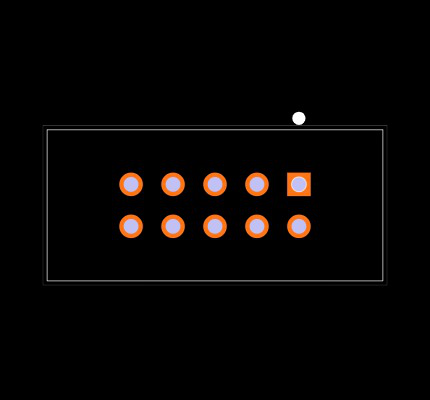

Footprint
No web preview
This Footprint is Available for

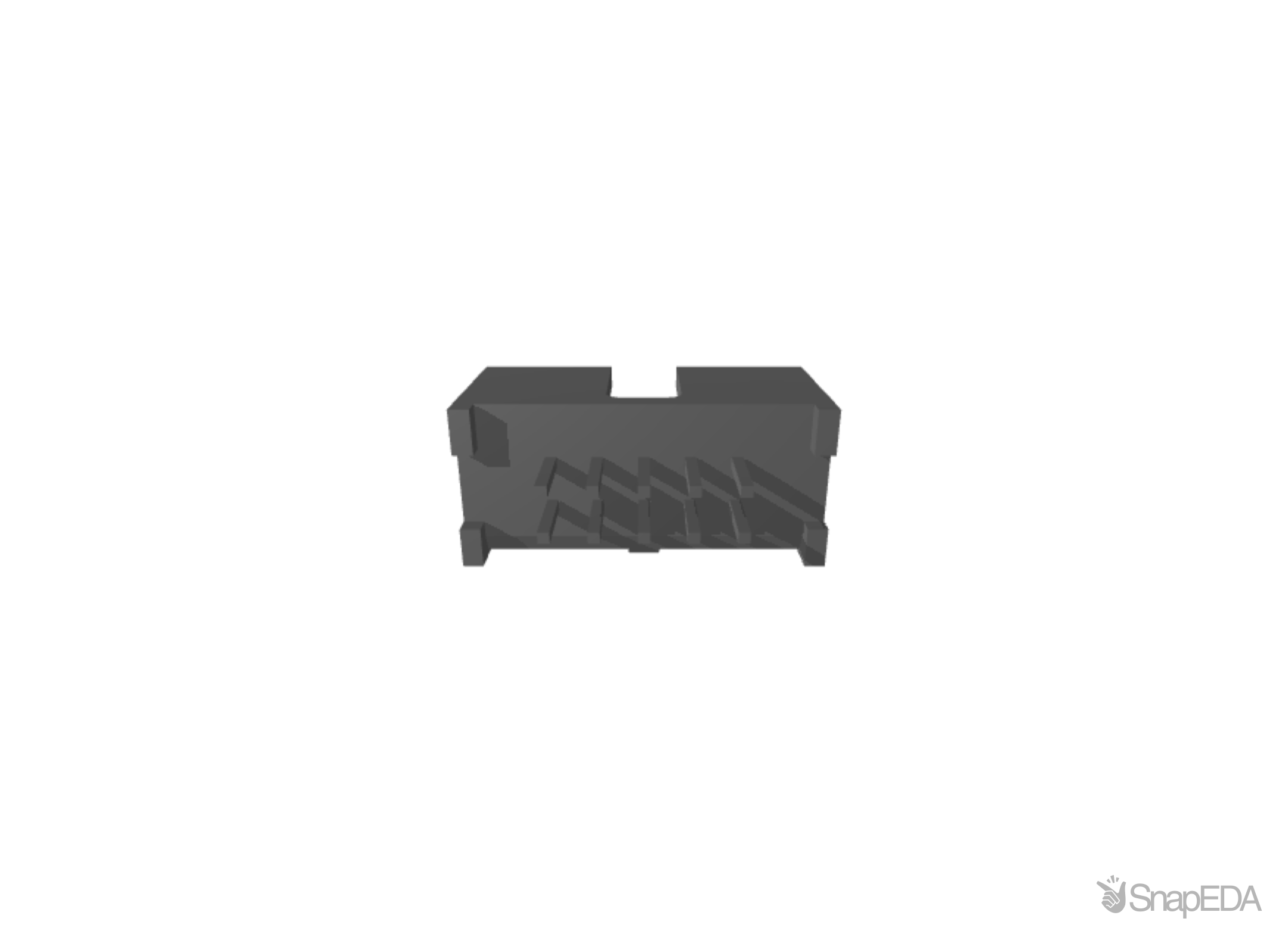

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 5103309-1
| Part Name | 5103309-1 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Mating Alignment Type | Center |
| Centerline (Pitch) | 2.54 |
| Circuit Application | Signal |
| Connector Product Type | Connector Assembly |
| Housing Material | Glass Filled Nylon/PBT |
| Row-to-Row Spacing | .1 |
| Insulation Resistance | 5000 |
| Operating Voltage (V) | 250 |
| Connector & Contact Terminates To | Printed Circuit Board |
| Ribbon Cable Connector Header Type | Pin Header |
| PCB Mount Retention | Without |
| Termination Post & Tail Length | 3.05 |
| Contact Shape & Form | Square |
| Operating Temperature Range | -65 to 105 |
| TE Internal Number | 5103309-1 |
| PCB Mount Orientation | Vertical |
| Connector System | Wire-to-Board |
| Connector Height | .347 |
| Number of Rows | 2 |
| Housing Color | Black |
| Contact Underplating Material | Nickel |
| Contact Base Material | Copper Alloy |
| Connector Mounting Type | Board Mount |
| PCB Contact Termination Area Plating Material Thickness | 2.54 |
| Mating Retention | Without |
| Connector Length | 20.32 |
| Mating Square Post Dimension | .64 |
| Packaging Method | Tube |
| Connector Type | Header |
| Packaging Quantity | 35 |
| Housing Temperature Rating | Standard |
| Contact Type | Pin |
| Square Termination Post & Tail Dimension | .64 |
| Number of Positions | 10 |
| Mating Alignment | With |
| Contact Mating Area Plating Material | Gold |
| Shrouded End Dimension | 3.81 |
| RoHS | True |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Connector & Housing Type | Plug |
| PCB Mount Alignment | Without |
| UL Flammability Rating | UL 94V-0 |
| Contact Mating Area Plating Material Thickness | 30 30 |
| Panel Mount Feature | Without |
| Contact Current Rating (Max) (A) | 1 |
| Connector Profile | Low |
| Solder Process Feature | Board Standoff |
| PCB Contact Termination Area Plating Material | Tin |
| Daisy Chain | With |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Shrouded/Unshrouded | Shrouded |
| Current Rating (A) | 1.0 (A) |
| Mounting Type | Through Hole |
| Series | AMP-LATCH |
| Body Orientation | Straight |
| Pitch | 2.54 (mm) |
| Connector System | Wire to Board |
| Number Of Rows | 2 |
| Contact Plating | Gold |
| Termination Method | Solder |
| Number Of Contacts | 10 |
| Contact Material | Copper Alloy |
Inventory for the 5103309-1 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
5,123
|
|
Visit Site | |
|
★ Featured
|
12,409
|
|
Visit Site | |
|
★ Featured
|
1,670
|
270 x $1.13
|
Visit Site | |
| Arrow Europe |
15,061
|
|
Visit Site | |
| Avnet America |
15,402
|
125 x $0.96
|
Visit Site | |
| Buerklin |
291
|
|
Visit Site | |
| Compona AG |
|
|
Visit Site | |
| Farnell UK |
2,755
|
|
Visit Site | |
| Heilind Europe |
10,500
|
|
Visit Site | |
| Newark |
2,755
|
|
Visit Site | |
| Onlinecomponents |
1,936
|
|
Visit Site | |
| Powell Electronics |
156
|
|
Visit Site | |
| RS UK |
827
|
|
Visit Site | |
| Sager |
2,718
|
|
Visit Site | |
| TME |
54
|
|
Visit Site | |
| TTI Europe |
5,000
|
125 x $0.78
|
Visit Site | |
| Verical |
1,875
|
|
Visit Site | |
| element14 Singapore |
2,715
|
|
Visit Site |
No issues have been reported for the 5103309-1
If you experienced any issues with the symbol or footprint, please report it.
