5103309-8
HEADER, PIN, AMP-LATCH, 40 POS, 2.54 X 2.54, VERTICAL, LOW PROFILE, PCB, BLACK | TE Connectivity 5103309-8
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 5103309-8 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

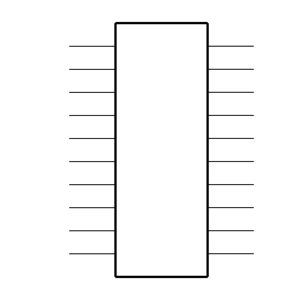

Symbol
No web preview
This Symbol is Available for

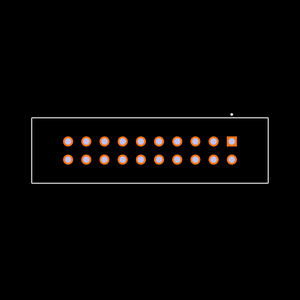

Footprint
No web preview
This Footprint is Available for

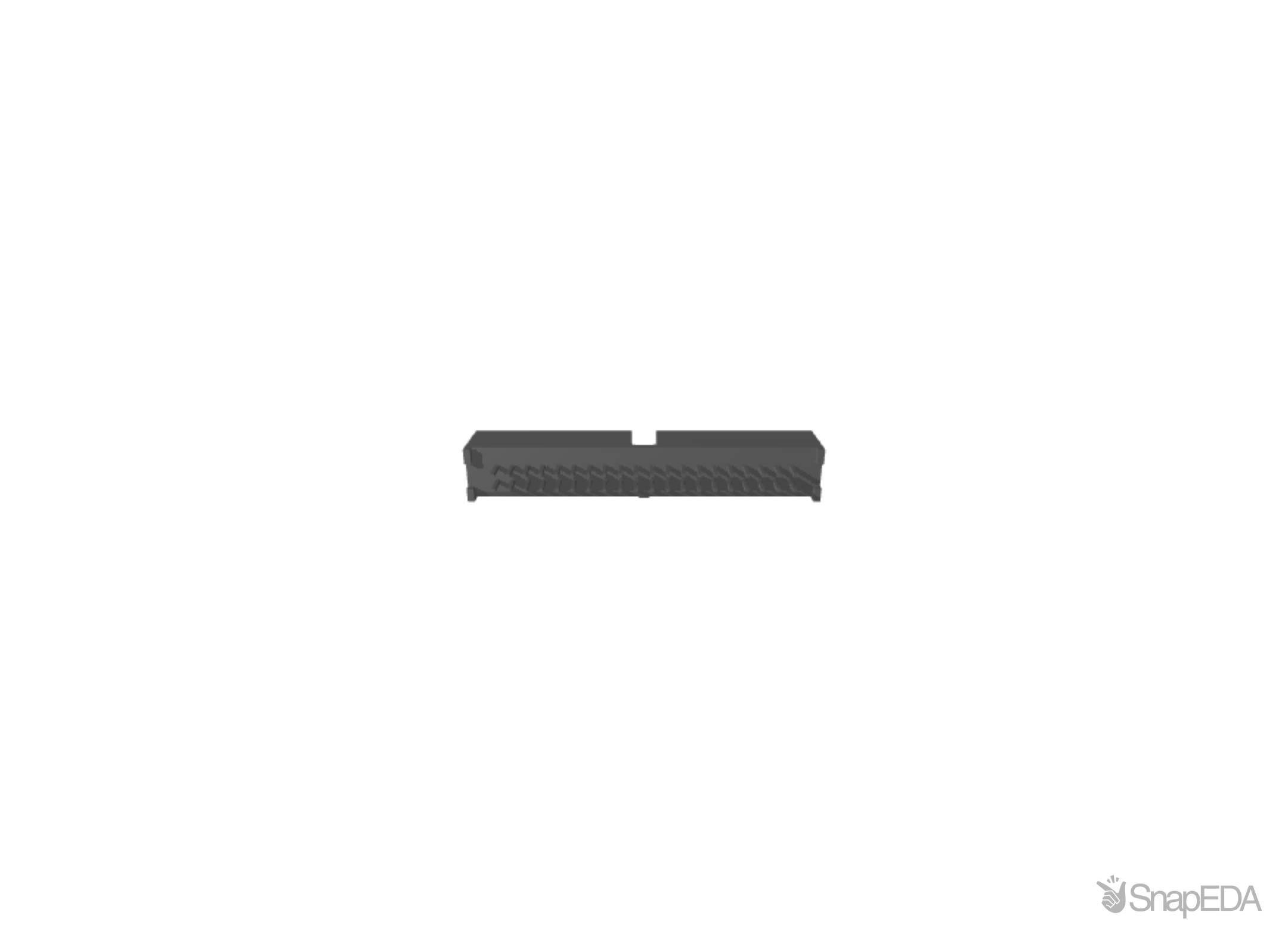

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 5103309-8
| Part Name | 5103309-8 |
| Manufacturer | TE Connectivity / AMP |
| Category | Connectors |
| Mating Alignment Type | Center |
| Centerline (Pitch) | 2.54 |
| Circuit Application | Signal |
| Connector Product Type | Connector Assembly |
| Housing Material | Glass Filled Nylon/PBT |
| Insulation Resistance | 5000 |
| Operating Voltage (V) | 250 |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Retention | Without |
| Termination Post & Tail Length | .12 |
| Panel Mount Feature | Without |
| Contact Shape & Form | Square |
| Mating Square Post Dimension | .64 |
| TE Internal Number | 5103309-8 |
| PCB Mount Orientation | Vertical |
| Connector System | Wire-to-Board |
| Connector Height | 8.813 |
| Number of Rows | 2 |
| Housing Color | Black |
| Contact Underplating Material | Nickel |
| Contact Base Material | Copper Alloy |
| Connector Mounting Type | Board Mount |
| PCB Contact Termination Area Plating Material Thickness | 100 |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Connector Length | 2.3 |
| Operating Temperature Range | -85 to 221 |
| Packaging Method | Tube |
| Connector Type | Header |
| Packaging Quantity | 35 |
| Housing Temperature Rating | Standard |
| Solder Process Feature | Board Standoff |
| Square Termination Post & Tail Dimension | .025 |
| Number of Positions | 40 |
| Mating Alignment | With |
| Contact Mating Area Plating Material | Gold |
| Shrouded End Dimension | .15 |
| RoHS | True |
| Mating Retention | Without |
| Connector & Housing Type | Plug |
| PCB Contact Termination Area Plating Material | Tin |
| PCB Mount Alignment | Without |
| UL Flammability Rating | UL 94V-0 |
| Contact Mating Area Plating Material Thickness | 30 30 |
| Row-to-Row Spacing | 2.54 |
| Contact Current Rating (Max) (A) | 1 |
| Connector Profile | Low |
| Contact Type | Pin |
| Ribbon Cable Connector Header Type | Pin Header |
| Daisy Chain | With |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Current Rating (A) | 1.0 (A) |
| Contact Plating | Gold |
| Mounting Type | Through Hole |
| Series | AMP-LATCH |
| Body Orientation | Straight |
| Pitch | 2.54 (mm) |
| Termination Method | Solder |
| Connector System | Wire to Board |
| Number Of Rows | 2 |
| Shrouded Unshrouded | Shrouded |
| Distrelec Product Id | 14311668 |
| Number Of Contacts | 40 |
| Contact Material | Copper Alloy |
