51281-0694
Easy On FFC FPC, Dual Contact Style, 1.2mm Mated Height, 6 Circuits, Gold | Molex Incorporated 51281-0694
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 51281-0694 by Molex and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

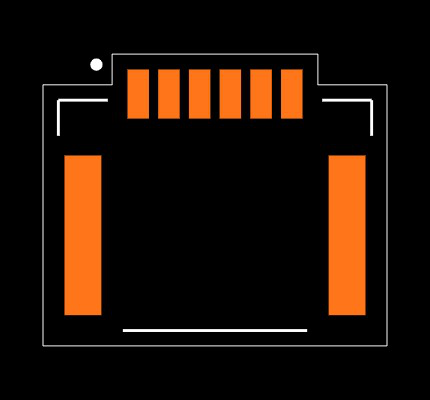

- Symbol and Footprint
- 3D Model

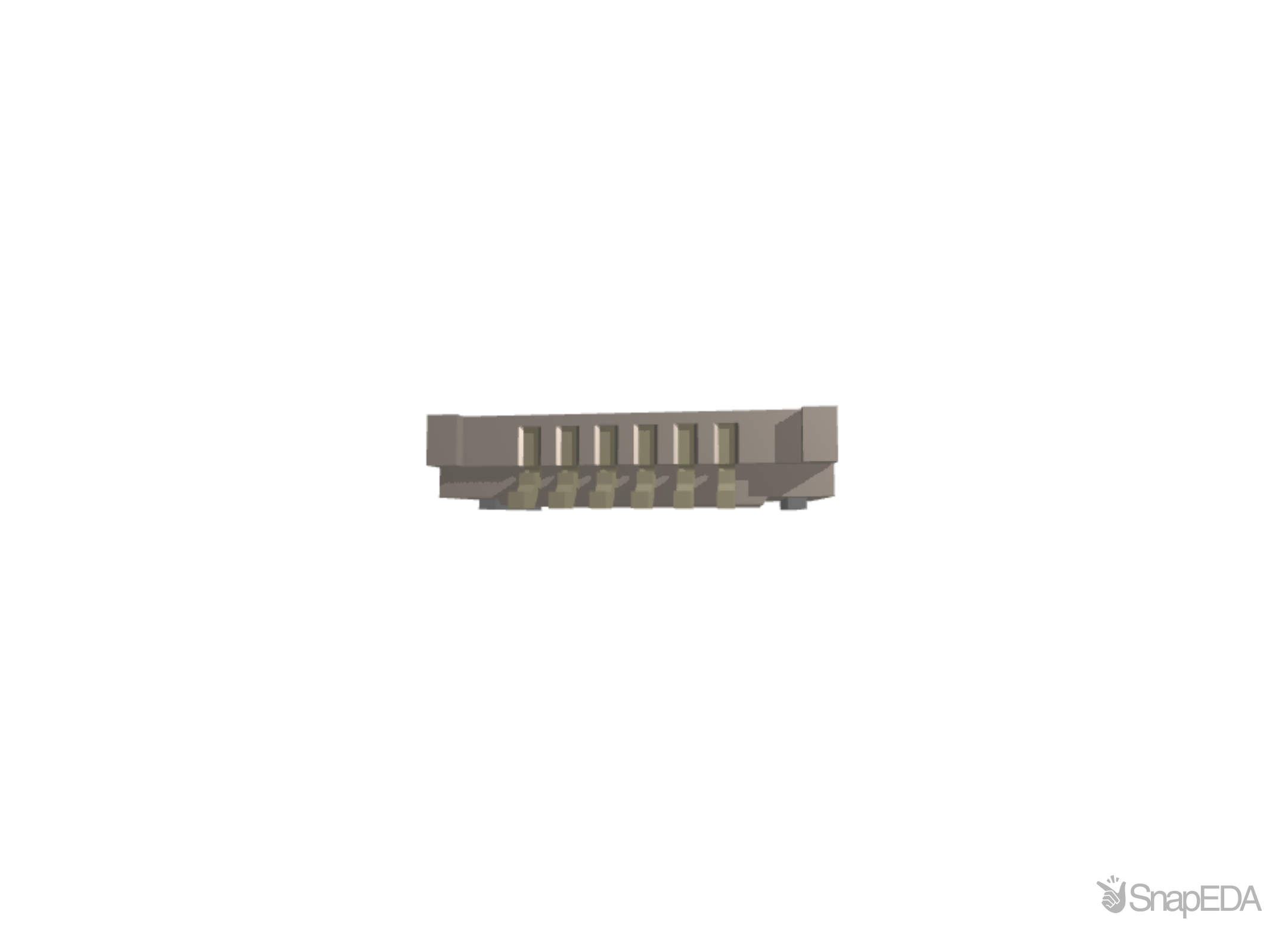

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
Verification | Issues | Specs | Pricing |
Specifications for the 51281-0694
Part Name | 51281-0694 |
Manufacturer | Molex |
Category | Connectors |
Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
Datasheet | See Datasheet PDF |
Contact Material | Phosphor Bronze |
Current Rating (A) | 500 (mA) |
Minimum Operating Temperature | -20 (°C) |
Mounting Type | Surface Mount |
Voltage Rating (V) | 50 V |
Gender | Female |
Body Orientation | Right Angle |
Pitch | 0.5 (mm) |
Housing Material | Liquid Crystal Polymer |
Number Of Rows | 1 |
Termination Type | Non-ZIF |
Termination Method | Solder |
Insertion Force | Non-ZIF |
Contact Plating | Gold, Tin |
Number Of Contacts | 6 |
Maximum Operating Temperature | +85 (°C) |
Series Number | 51281 |
Inventory for the 51281-0694 by Molex from major distributors.
Supplier | Quantity | Price | Purchase | |
---|---|---|---|---|
★ Featured
|
|
|
Visit Site | |
★ Featured
![]() |
19,760
|
N/A | Visit Site | |
Onlinecomponents |
5,400
|
|
Visit Site | |
RS Americas |
2,370
|
1 x $0.14
|
Visit Site | |
Verical |
27,000
|
|
Visit Site |
No issues have been reported for the 51281-0694
If you experienced any issues with the symbol or footprint, please report it.
