5145246-1
SnapVerified
0.05 Series, Female Edge Connector SMT, 184 Way, 2 Row, 1.27mm Pitch | TE Connectivity 5145246-1
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 5145246-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

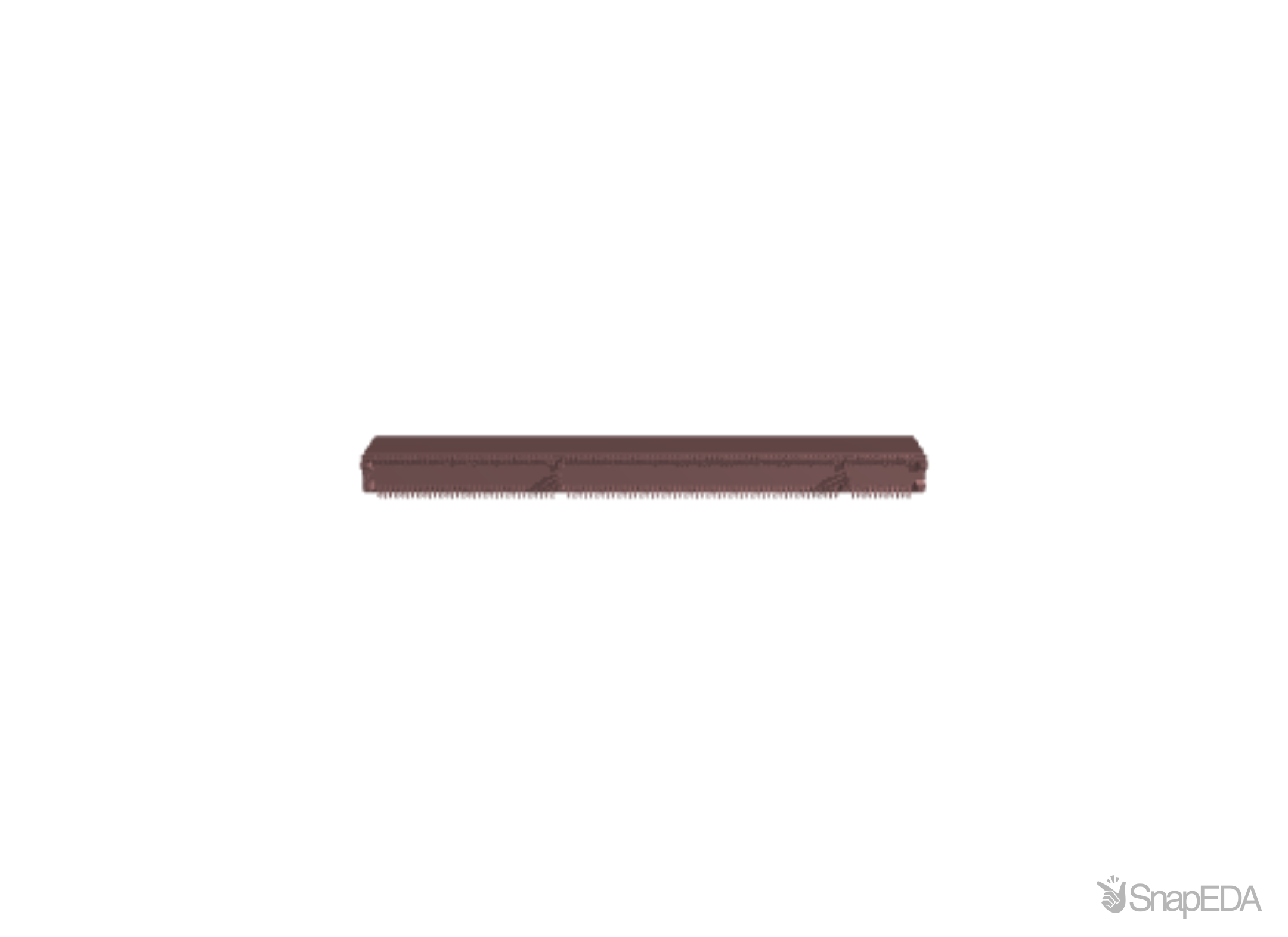

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 5145246-1
| Part Name | 5145246-1 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Centerline (Pitch) | 1.27 |
| Circuit Application | Signal |
| Pick and Place Cover | Without |
| TE Internal Number | 5145246-1 |
| Housing Material | High Temperature Thermoplastic |
| Connector & Contact Terminates To | Printed Circuit Board |
| Operating Voltage (V) | 203 |
| Number of Positions | 184 |
| PCB Mount Retention Type | Hold-Down Post |
| Operating Temperature Range | -55 – 85 |
| Number of Hold-Downs | 3 |
| PCB Mount Orientation | Vertical |
| Connector System | Board-to-Board |
| Connector Height | 13.97 |
| Housing Color | Natural |
| Connector Width | .35 |
| Contact Underplating Material | Nickel |
| Contact Base Material | Phosphor Bronze |
| Connector Mounting Type | Board Mount |
| Hold-Down Plating Material | Tin over Nickel |
| PCB Thickness (Accepted) | 1.57 |
| Connector Length | 5.039 |
| Bus Type | PCI |
| Ejector | Without |
| Packaging Method | Box |
| Hold-Down Material | Brass |
| Packaging Quantity | 32 |
| Contact Mating Area Plating Material | Gold |
| RoHS | True |
| Termination Method to Printed Circuit Board | Surface Mount |
| 端子の下地めっきの材料 | Nickel |
| Weight | 21.025 |
| Contact Mating Area Plating Material Thickness | 30 |
| Contact Current Rating (Max) (A) | .5 |
| Voltage (V) | 203 |
| PCB Contact Termination Area Plating Material | Tin |
| Bus Width | 64 Bit |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Pitch | 1.27 (mm) |
| Current Rating (A) | 1 (A) |
| Minimum Operating Temperature | -55 (°C) |
| Mounting Type | Surface Mount |
| Card Type | PCI |
| Gender | Female |
| Body Orientation | Straight |
| Voltage Rating (V) | 203 V ac |
| Depth | 8.89 (mm) |
| Housing Material | Thermoplastic |
| Width | 15.49 (mm) |
| Length | 128.02 (mm) |
| Number Of Rows | 2 |
| Contact Plating | Gold over Nickel |
| Termination Method | Solder |
| Number Of Contacts | 184 |
| Maximum Operating Temperature | +85 (°C) |
| Contact Material | Phosphor Bronze |
