515-1011F

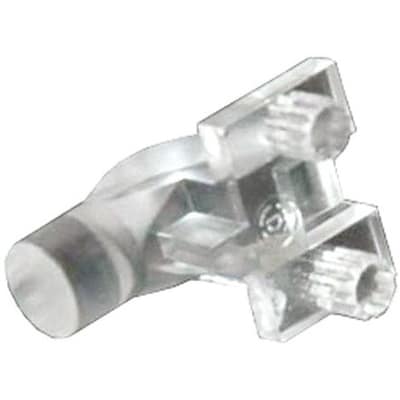

515-1011F, PCB Mounted Right Angle LED Light Pipe, Clear Round Lens | Dialight 515-1011F
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 515-1011F by Dialight and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 515-1011F
| Part Name | 515-1011F |
| Manufacturer | Dialight |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Led Package Size | 3.5 x 2.8 mm |
| Rows | 1 |
| Configuration Rows X Columns | 1 x 1 |
| Orientation | Right Angle |
| Mounting Type | PCB Mounted |
| Series | Optopipeâ„¢ |
| Length | 14.6 (mm) |
| Lens Colour | Clear |
| Led Included | No |
| Flexible Rigid | Rigid |
| Lens Shape | Round |
| Number Of Ways | 1 |
| Outer Diameter | 5 (mm) |
| Columns | 1 |
| Dimensions | 10.71 x 11.6 x 14.6 (mm) |
Inventory for the 515-1011F by Dialight from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
17,649
|
|
Visit Site | |
|
★ Featured
|
1,685
|
770 x $0.45
|
Visit Site | |
| Arrow Electronics |
7,540
|
|
Visit Site | |
| Onlinecomponents |
129
|
|
Visit Site | |
| Verical |
1,144
|
|
Visit Site |
No issues have been reported for the 515-1011F
