515-1064F

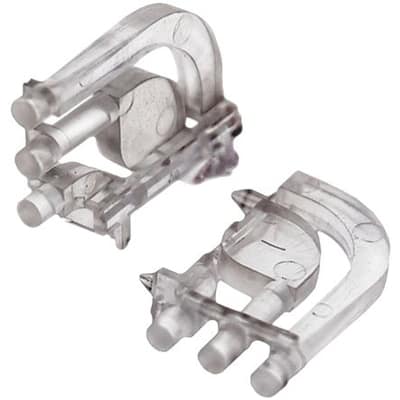

515-1064F,PCB Mounted 3-Way RightAngle LED Light Pipe,Tri-Level Clear Round Lens | Dialight 515-1064F
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 515-1064F by Dialight and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

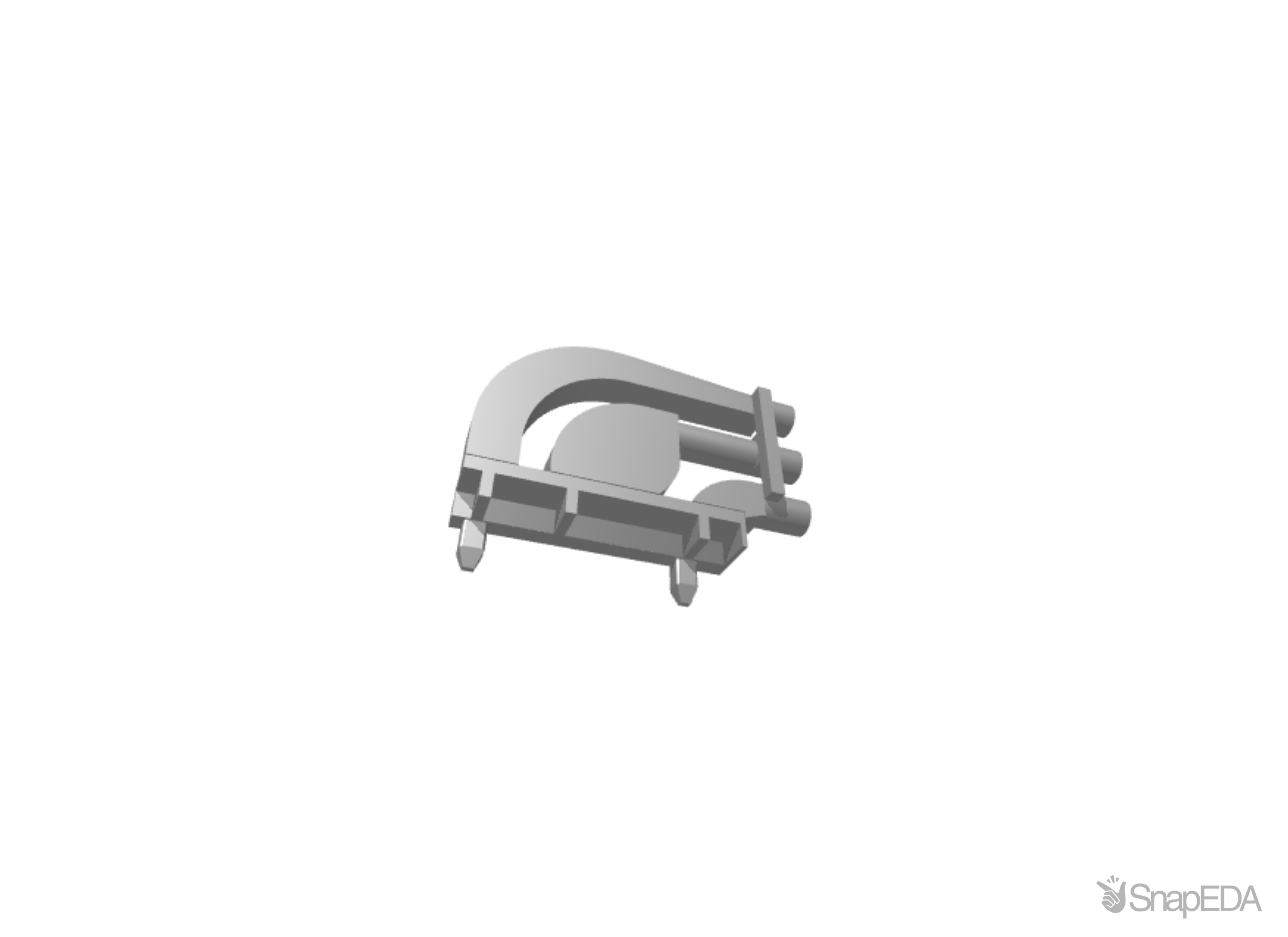

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 515-1064F
| Part Name | 515-1064F |
| Manufacturer | Dialight |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Led Package Size | 3 x 3 mm |
| Rows | 3 |
| Number Of Ways | 3 |
| Orientation | Right Angle |
| Mounting Type | PCB Mounted |
| Series | Optopipeâ„¢ |
| Flexible/Rigid | Rigid |
| Length | 22.9 (mm) |
| Configuration (Rows X Columns) | 3 x 1 |
| Led Included | No |
| Lens Shape | Round |
| Lens Colour | Clear |
| Outer Diameter | 2.5 (mm) |
| Columns | 1 |
| Dimensions | 3.4 x 13.7 x 22.9 (mm) |
No issues have been reported for the 515-1064F
If you experienced any issues with this part, please report it.
