5161390-5
Switch DIP ON OFF SPST 5 Slide 25A 50VDC PC Pins 2.54mm Thru-Hole Box
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 5161390-5 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

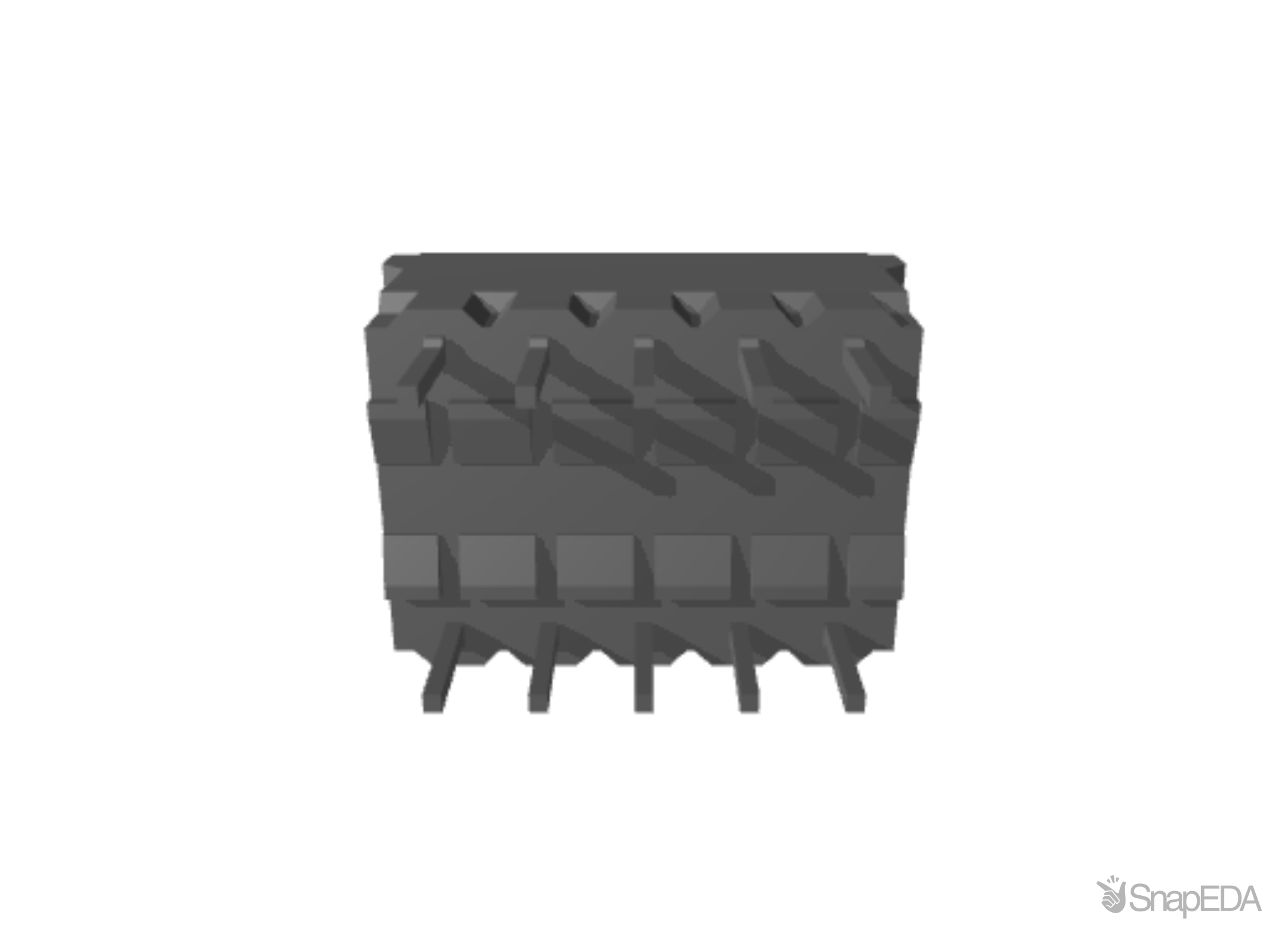

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 5161390-5
| Part Name | 5161390-5 |
| Manufacturer | TE Connectivity |
| UL Flammability Rating | UL 94V-0 |
| Housing Material | Nylon - GF |
| Sealed | No |
| Actuator Color | Red |
| Centerline | .1 |
| Number of Positions | 5 |
| Actuator Style | Slide |
| Auto-Insertable | No |
| Solder Tail Contact Plating | Tin |
| Number of Switches | 5 |
| TE Internal Number | 5161390-5 |
| Housing Color | Natural |
| Contact Base Material | Phosphor Bronze |
| Operating Temperature Range | -25 – 70 |
| Packaging Method | Box & Carton |
| Packaging Quantity | 500 |
| Configuration (Pole-Throw) | Single Pole - Single Throw |
| Contact Mating Area Plating Material | Tin |
| RoHS | True |
| Mounting Angle | Vertical |
| Product Type | Switch |
| Mounting Type | Through Hole |
| Termination Post Length | 3.2 |
| Length | 15.24 |
| Height | 8.5 |
| Contact Mating Area Plating Thickness | 98.42 |
| Switch Type | DIP |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
