520249-2
Jack Modular Connector 4p4c (RJ9, RJ10, RJ22) 90° Angle (Right) Unshielded Cat3
Availability: Out of Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 520249-2 by TE Connectivity AMP Connectors and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

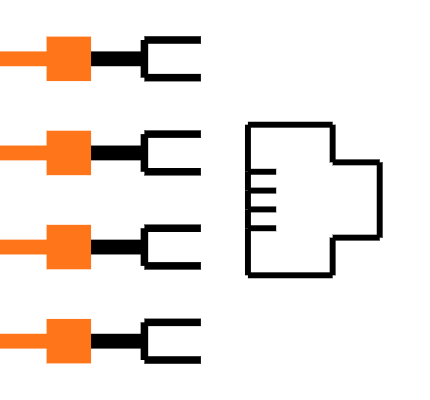

Symbol
No web preview
This Symbol is Available for

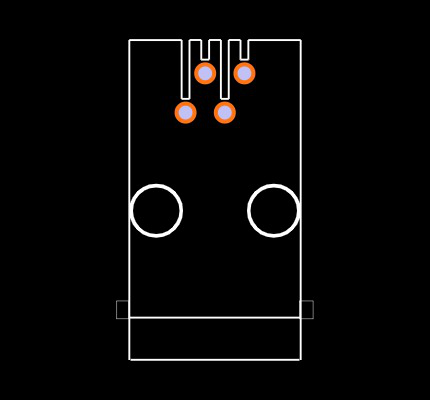

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 520249-2
| Part Name | 520249-2 |
| Manufacturer | TE Connectivity |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Number Of Ways | 4P/4C |
| Orientation | Right Angle |
| Mounting Type | Through Hole |
| Gender | Female |
| Shield Type | UTP |
| Length | 15.88 (mm) |
| Width | 18.3 (mm) |
| Depth | 20.83 (mm) |
| Ethernet Connector Type | RJ14 Connector |
| Series Number | 520249 |
| Series | 520249 |
| Contact Plating | Gold over Nickel |
| Lan Category | Cat3 |
| Contact Material | Phosphor Bronze |
No issues have been reported for the 520249-2
If you experienced any issues with the symbol or footprint, please report it.
