5205738-1
SnapVerified
Conn High Density D-Sub F 25 POS 2.77mm Solder ST Thru-Hole 25 Terminal 1 Port Tube
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 5205738-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates

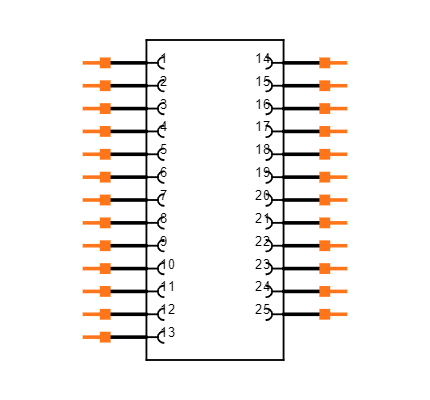

Symbol
No web preview
This Symbol is Available for

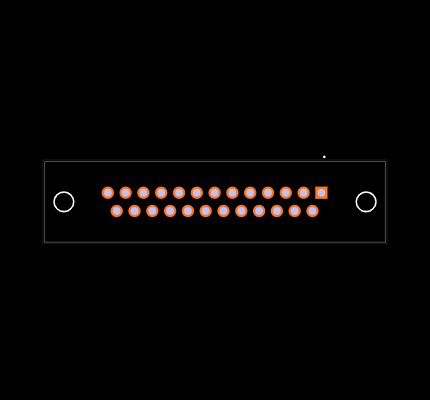

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 5205738-1
| Part Name | 5205738-1 |
| Manufacturer | TE Connectivity / AMP |
| Shell Plating Material | Zinc |
| Centerline (Pitch) | .108 |
| Shell Material | Steel |
| Circuit Application | Signal |
| Insert Flammability Rating | UL 94V-0 |
| Plastic | No |
| Housing Material | Glass-Filled PBT |
| Row-to-Row Spacing | .112 in |
| Connector & Contact Terminates To | Printed Circuit Board |
| Shell Size | 3 |
| Connector Style | Receptacle |
| Number of Positions | 25 |
| Profile | Standard |
| PCB Mount Retention | Without |
| PCB Thickness (Recommended) | .093 |
| TE Internal Number | 5205738-1 |
| PCB Mount Orientation | Vertical |
| Connector System | Board-to-Board |
| Number of Rows | 2 |
| Grounding Straps | Without |
| Housing Color | Black |
| Contact Base Material | Phosphor Bronze |
| Connector Mounting Type | Board Mount |
| Contact Shape | Square |
| Operating Temperature Range | -67 – 221 |
| Mounting Hole Diameter | .12 |
| Packaging Method | Tube |
| Packaging Quantity | 10 |
| Grounding Indents | Without |
| Contact Mating Area Plating Material | Gold Flash over Palladium Nickel |
| Insert Material | Polyamide, GV |
| RoHS | True |
| Life Cycle Status | Factory Special Order |
| PCB Mounting Style | Through Hole |
| Sealable | No |
| Termination Post Length | .125 |
| Shell Type | Full Metal Shell |
| Post Size | .025 |
| Grounding Clips | Without |
| Panel Mount Feature | Without |
| Contact Current Rating (Max) (A) | 6 |
| Contact Mating Area Plating Thickness | 30 |
| Product Type | Connector |
| UL Flammability Rating | UL 94V-0 |
| PCB Contact Termination Area Plating Material | Tin |
| Preloaded | Yes |
| Mating Connector Lock | Without |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
