5205980-1
Screw Retainer Kit, Male, 4-40 UNC, Zinc Plating, Slotted, Amplimite Series | TE Connectivity 5205980-1
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 5205980-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

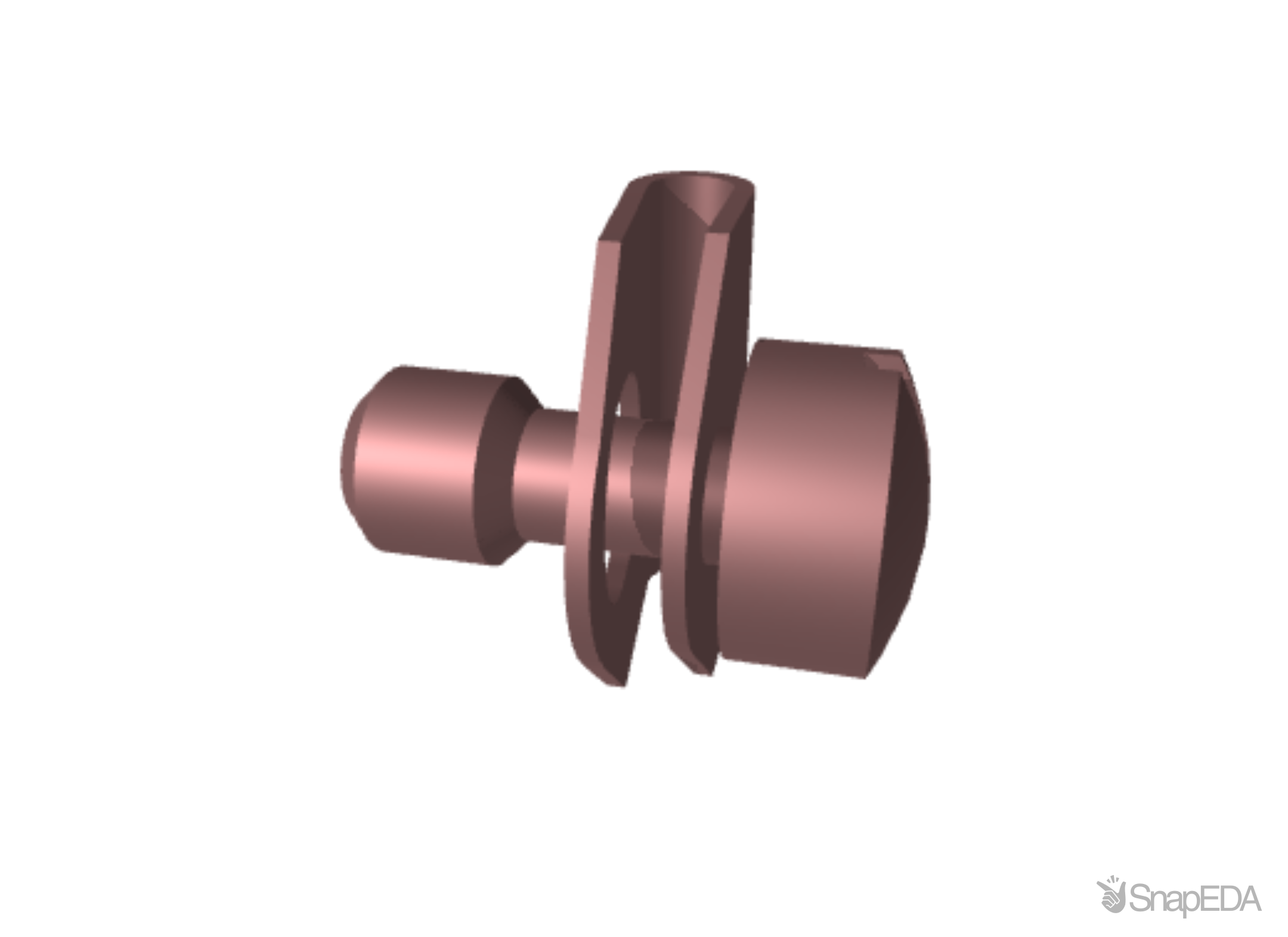

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 5205980-1
| Part Name | 5205980-1 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Packaging Method | Bag |
| Screw & Hole Thread Size | 4-40 |
| Accessory Type | Screw Retainer |
| TE Internal Number | 5205980-1 |
| Packaging Quantity | 1 |
| Screw Material | Carbon Steel |
| Screw Plating Material | Zinc |
| Screw Length | .22 |
| For Use With | Metal Shell Connectors (HDE and HDP) |
| Product Type | Accessory |
| Screw Finish | Yellow Chromate |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| For Use With | D-Sub Connector |
| Series | Series HDF or HDP or HDE |
| Accessory Type | Screw Retainer |
Inventory for the 5205980-1 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
3,309
|
|
Visit Site |
No issues have been reported for the 5205980-1
If you experienced any issues with this part, please report it.
