52207-0860

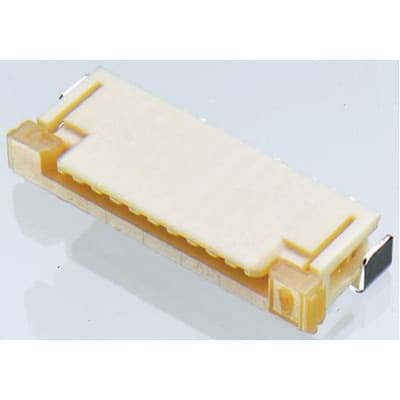

FFC/FPC SMT Series 1mm Pitch 8 Way Right Angle SMT Female FPC Conn,ZIF Contact | Molex Incorporated 52207-0860
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 52207-0860 by Molex and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

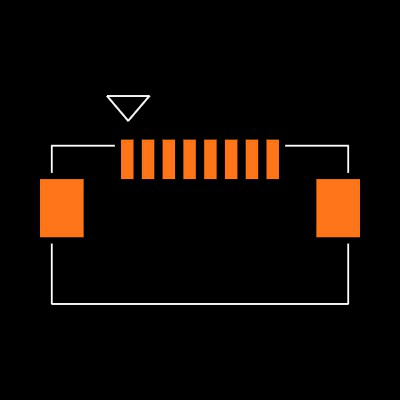

- Symbol and Footprint
- 3D Model

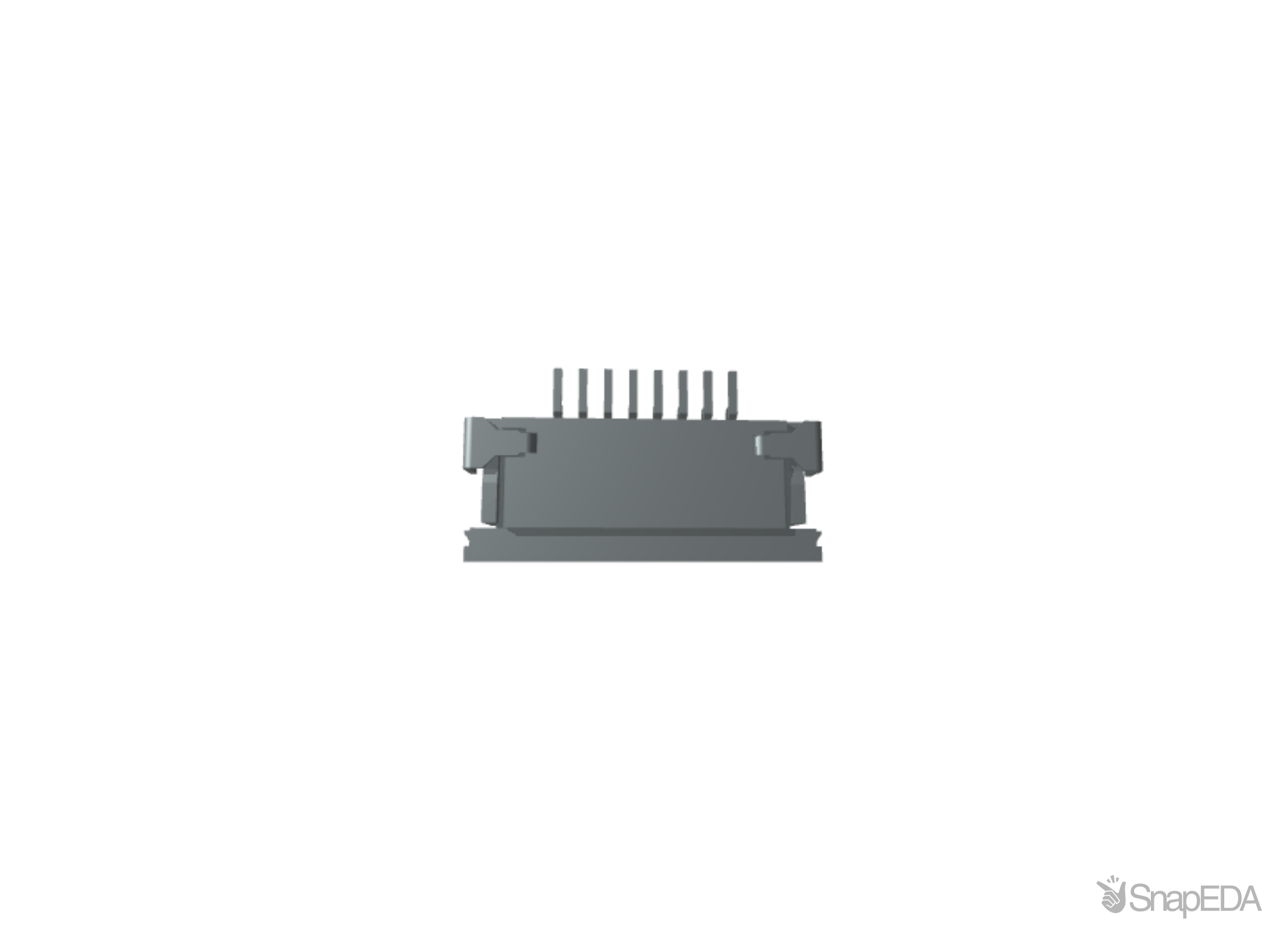

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 52207-0860
| Part Name | 52207-0860 |
| Manufacturer | Molex |
| Category | Connectors |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Contact Material | Phosphor Bronze |
| Series | Easy-On |
| Current Rating (A) | 1 (A) |
| Minimum Operating Temperature | -20 (°C) |
| Mounting Type | Surface Mount |
| Voltage Rating (V) | 125 V |
| Gender | Female |
| Body Orientation | Right Angle |
| Termination Method | Solder |
| Housing Material | Nylon |
| Number Of Rows | 1 |
| Termination Type | ZIF Top Contact |
| Pitch | 1 (mm) |
| Contact Plating | Gold over Nickel |
| Number Of Contacts | 8 |
| Maximum Operating Temperature | +85 (°C) |
| Series Number | 52207 |
Inventory for the 52207-0860 by Molex from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
1,094
|
|
Visit Site | |
|
★ Featured
|
11,800
|
55 x $6.34
|
Visit Site | |
| Onlinecomponents |
9,600
|
|
Visit Site | |
| Verical |
19,000
|
|
Visit Site |
No issues have been reported for the 52207-0860
