52207-0960

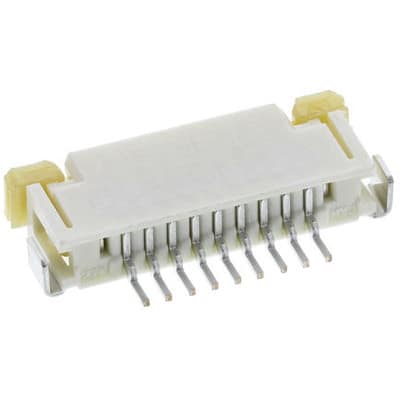

FFC/FPC SMT Series 1mm Pitch 9 Way Right Angle SMT Female FPC Conn,ZIF Contact | Molex Incorporated 52207-0960
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 52207-0960 by Molex and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

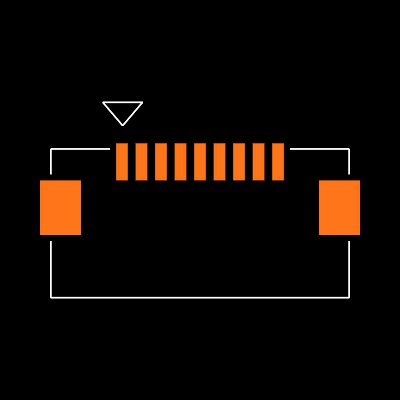

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 52207-0960
| Part Name | 52207-0960 |
| Manufacturer | Molex |
| Category | Connectors |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Current Rating (A) | 1 (A) |
| Termination Type | ZIF Top Contact |
| Mounting Type | Surface Mount |
| Voltage Rating (V) | 125 V |
| Gender | Female |
| Body Orientation | Right Angle |
| Pitch | 1 (mm) |
| Termination Method | Solder |
| Housing Material | Nylon |
| Number Of Rows | 1 |
| Minimum Operating Temperature | -30 (°C) |
| Series | FFC/FPC SMT |
| Contact Plating | Gold over Nickel |
| Number Of Contacts | 9 |
| Series Number | 52207 |
| Maximum Operating Temperature | +85 (°C) |
| Contact Material | Phosphor Bronze |
Inventory for the 52207-0960 by Molex from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Avnet America |
|
|
Visit Site | |
| Chip One Stop |
20,000
|
|
Visit Site | |
| Compona AG |
|
6,000 x $0.50
|
Visit Site | |
| Conrad |
21,301
|
|
Visit Site | |
| Farnell UK |
19,500
|
|
Visit Site | |
| Heilind Europe |
|
|
Visit Site | |
| Newark |
516
|
|
Visit Site | |
| Powell Electronics |
14,059
|
|
Visit Site | |
| RS UK |
240
|
|
Visit Site | |
| Sager |
|
|
Visit Site | |
| TME |
|
|
Visit Site | |
| TTI Europe |
|
1,000 x $0.68
|
Visit Site | |
| element14 Singapore |
516
|
|
Visit Site |
No issues have been reported for the 52207-0960
If you experienced any issues with the symbol or footprint, please report it.
