5223986-3
Universal Power Module (For use with Z-PACK 2mm HM Z-PACK HS3 Z-PACK HM-Zd and MULTI GIG RT2J)
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 5223986-3 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

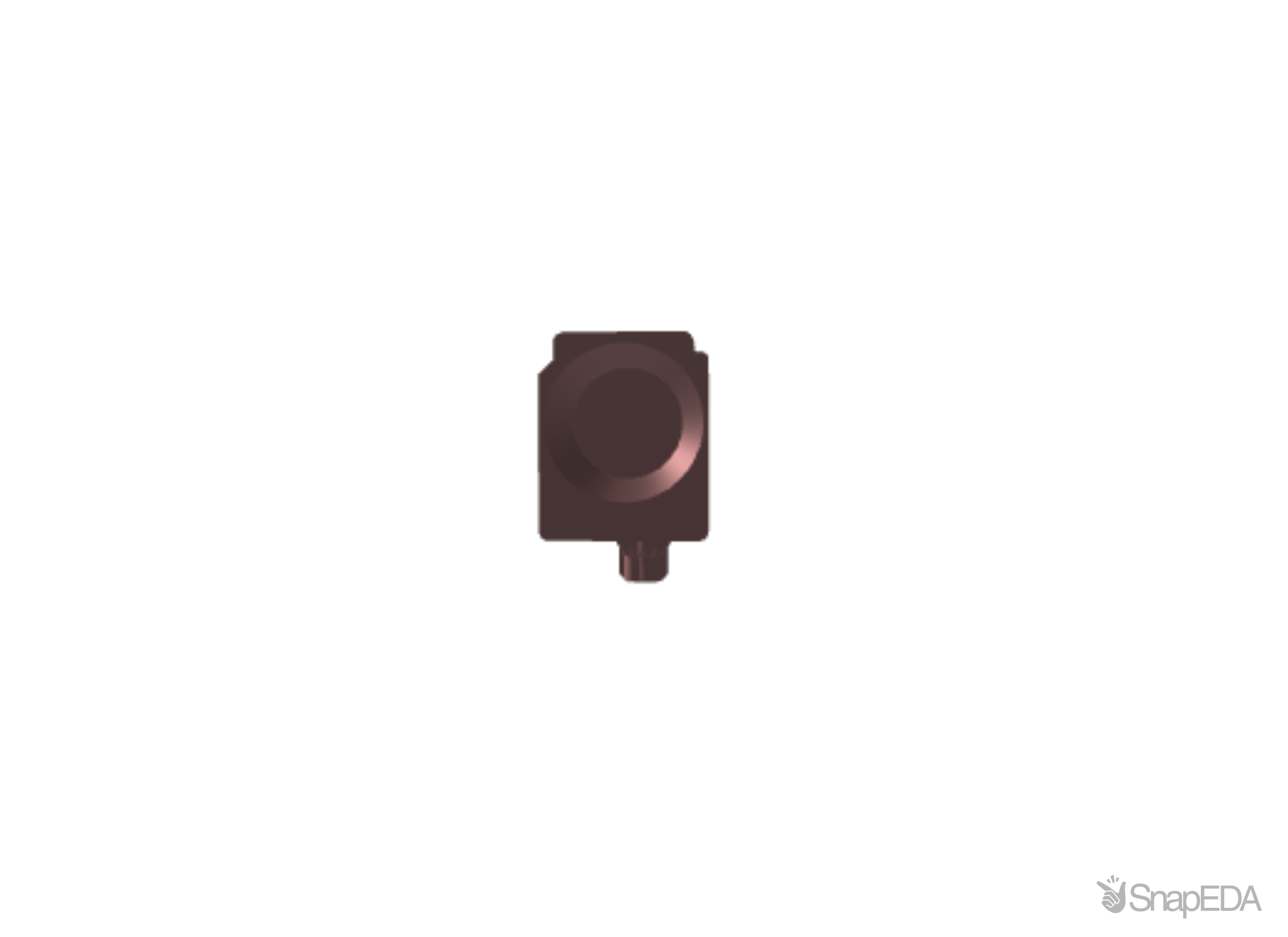

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 5223986-3
| Part Name | 5223986-3 |
| Manufacturer | TE Connectivity |
| Mounting Angle | Right Angle |
| Guide Module Finish | Chromate Conversion |
| Packaging Method | Box |
| TE Internal Number | 5223986-3 |
| Packaging Quantity | 1 |
| Keyed | Yes |
| Housing Material | Polyester PBT |
| Keying & Polarized Position Locations | 90° |
| Length | 34.2 |
| Interface Type | 2mm HM |
| Guide Module Material | Zinc Alloy Die Casting |
| Contact Mating Area Plating Material | Zinc Alloy |
| Guide Hardware | Yes |
| Backplane Guide Hardware Type | Guide Socket Module |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
