5225395-6
BNC PLUG DUAL CP RG142
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 5225395-6 by TE Connectivity AMP Connectors and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

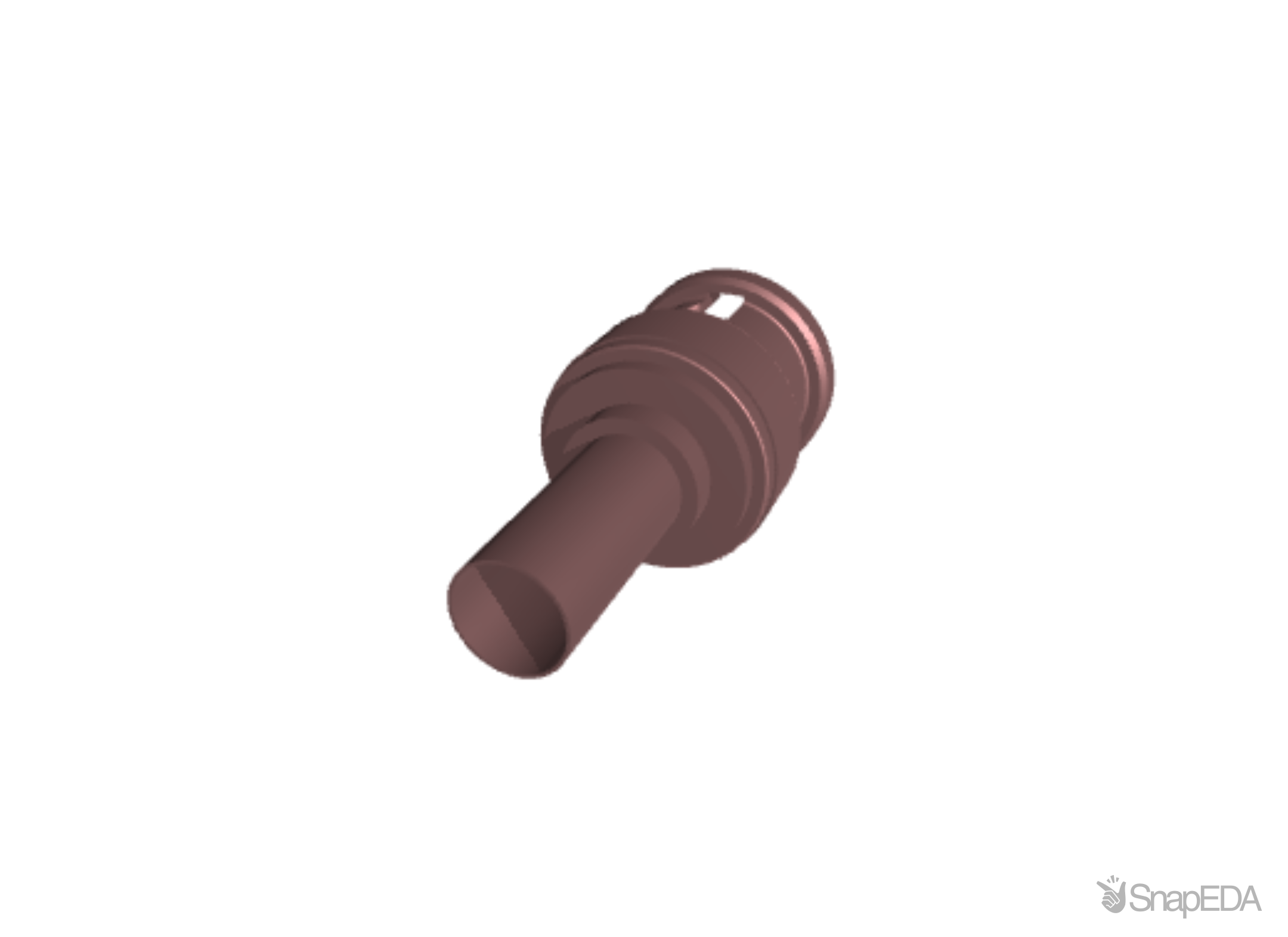

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 5225395-6
| Part Name | 5225395-6 |
| Manufacturer | TE Connectivity |
| RF Contact Captivation Method | Mechanical |
| Cable Connector Orientation | Straight |
| Port Configuration | Single Port |
| Body Insulation | Without |
| RF Connector Style | Plug |
| RF Connector Center Contact Material | Brass |
| Dielectric Material | Fluoropolymer |
| Connector & Contact Terminates To | Wire & Cable |
| Connector System | Cable-to-Cable |
| Part Category | Coax Connectors |
| TE Internal Number | 5225395-6 |
| RF Connector Coupling Mechanism | Bayonet |
| Number of Positions | 1 |
| Coupling Nut Base Material | Brass |
| Body Plating Material | Nickel |
| Number of Coaxial Contacts | 1 |
| Impedance | 50 |
| Sealable | Yes |
| Connector Mounting Type | Cable Mount (Free-Hanging) |
| Termination Method to Wire & Cable | Crimp |
| RF Connector Mated Outer Diameter (Approximate) | .572 |
| RF Connector Center Contact Plating Thickness | 889 |
| Operating Temperature Range | -55 – 85 |
| Packaging Method | Bag |
| RF Interface | BNC |
| Detent | With |
| Body Material | Brass |
| Connector Seal Type | Gasket |
| Operating Frequency | 4 |
| Grade | Military |
| Cable Type | RG 142B |
| Crimp Type | Dual |
| RF Connector Center Contact Plating Material | Gold |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
