52271-0779

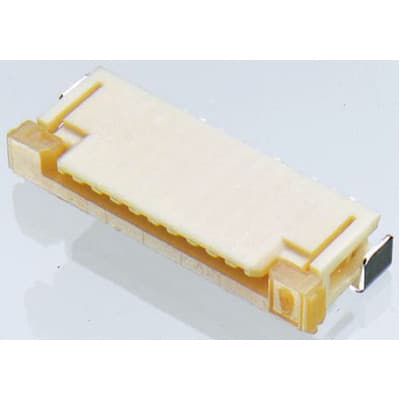

FFC/FPC SMT SER 1mm Pitch 7Way RightAngle SMT Female FPC Conn,ZIF Bottom Contact | Molex Incorporated 52271-0779
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 52271-0779 by Molex and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

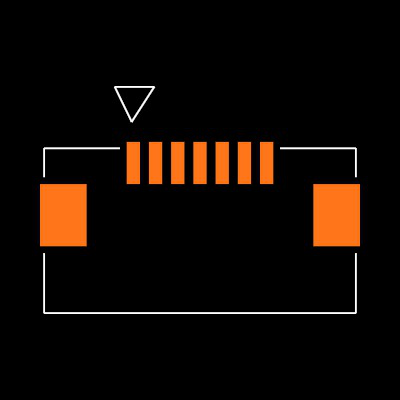

Footprint
No web preview
This Footprint is Available for

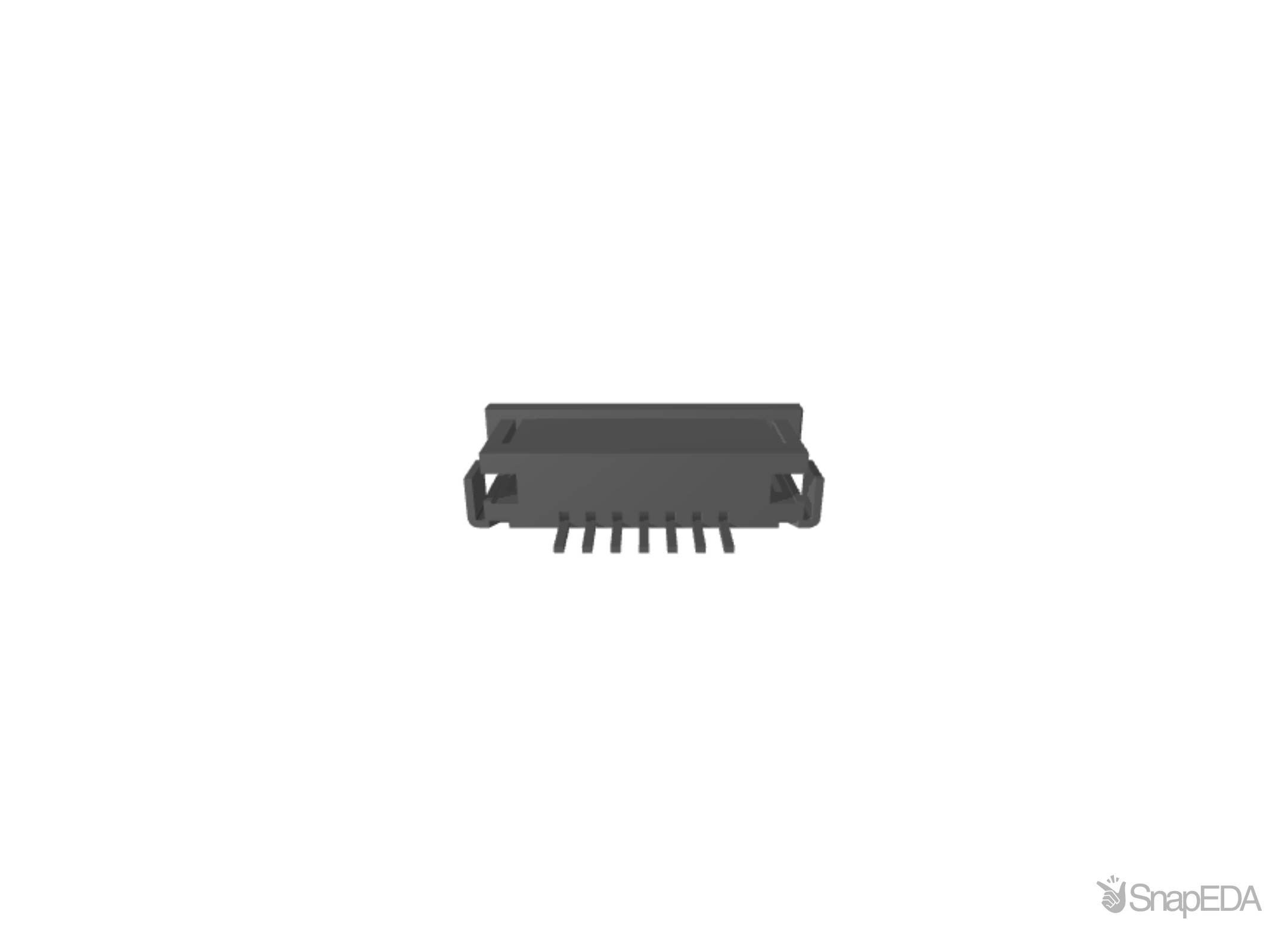

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 52271-0779
| Part Name | 52271-0779 |
| Manufacturer | Molex |
| Category | Connectors |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Contact Material | Phosphor Bronze |
| Series | Easy-On |
| Current Rating (A) | 500 (mA) |
| Minimum Operating Temperature | -40 (°C) |
| Mounting Type | Surface Mount |
| Voltage Rating (V) | 50 V ac/dc |
| Gender | Female |
| Body Orientation | Right Angle |
| Termination Method | Solder |
| Housing Material | Nylon |
| Number Of Rows | 1 |
| Termination Type | ZIF Bottom Contact |
| Pitch | 1 (mm) |
| Contact Plating | Tin Bismuth Alloy |
| Number Of Contacts | 7 |
| Maximum Operating Temperature | +85 (°C) |
| Series Number | 52271 |
Inventory for the 52271-0779 by Molex from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
5,029
|
|
Visit Site | |
|
★ Featured
|
164
|
|
Visit Site | |
| Onlinecomponents |
8,200
|
|
Visit Site | |
| Verical |
1,745
|
|
Visit Site |
No issues have been reported for the 52271-0779
