5227699-3
RF Connector BNC Jack Vertical PCB Mount Commercial Grade 50 Ohm | TE Connectivity 5227699-3
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 5227699-3 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

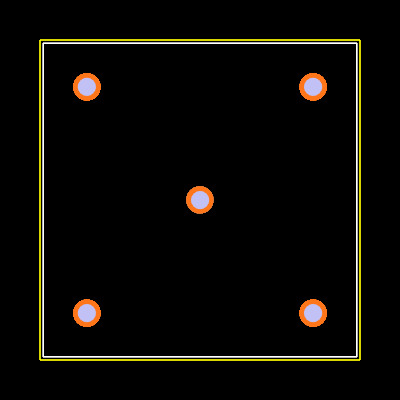

Footprint
No web preview
This Footprint is Available for

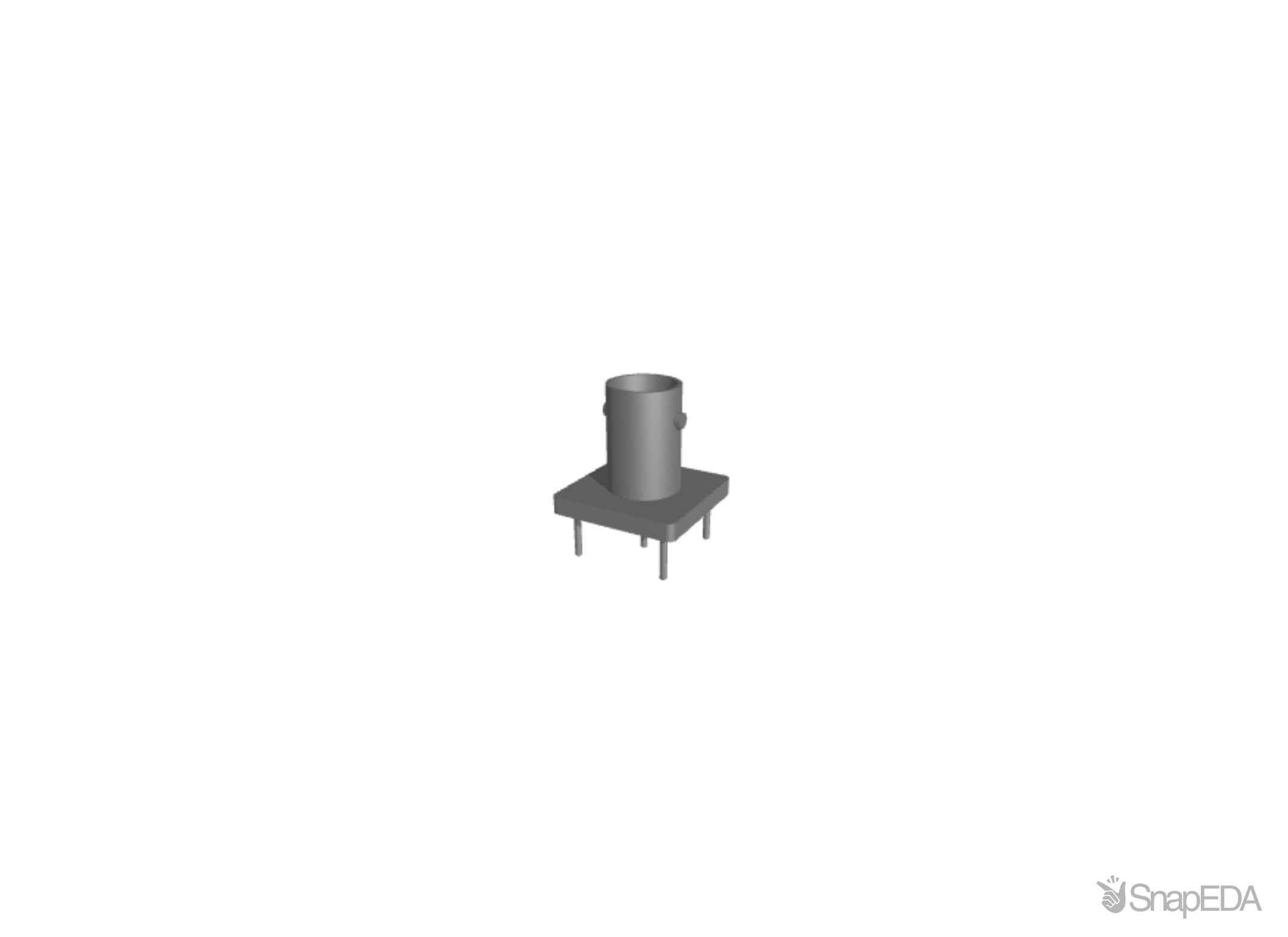

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 5227699-3
| Part Name | 5227699-3 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| RF Contact Captivation Method | Mechanical |
| Port Configuration | Single Port |
| Termination Method to Printed Circuit Board | Through Hole |
| Body Insulation | Without |
| RF Connector Style | Jack |
| PCB Tail Length | .25 |
| RF Connector Center Contact Material | Phosphor Bronze |
| Dielectric Material | VALOX |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Retention | Without |
| TE Internal Number | 5227699-3 |
| RF Connector Coupling Mechanism | Bayonet |
| PCB Mount Orientation | Vertical |
| Connector System | Cable-to-Board |
| Body Plating Material | Nickel |
| Number of Coaxial Contacts | 1 |
| Impedance | 50 |
| Sealable | No |
| Connector Mounting Type | Panel |
| RF Connector Mated Outer Diameter (Approximate) | .572 |
| RF Connector Center Contact Plating Thickness | 5080 |
| Operating Temperature Range | -55 – 85 |
| Packaging Method | Tube |
| RF Interface | BNC |
| Detent | With |
| Body Material | Zinc |
| Number of Positions | 1 |
| Operating Frequency | 4 |
| RoHS | True |
| Grade | Commercial |
| RF Connector Center Contact Plating Material | Tin |
| Height Above PC Board | 15.88 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Polarity | Normal |
| Body Plating | Nickel |
| Mounting Type | PCB Mount |
| Gender | Female |
| Body Orientation | Straight |
| Bulkhead | No |
| Coaxial Connector Type | BNC Connector |
| Contact Plating | Tin |
| Termination Method | Through Hole |
| Impedance | 50 (Ω) |
| Contact Material | Phosphor Bronze |
| Size | Standard |
Inventory for the 5227699-3 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
918
|
|
Visit Site | |
|
★ Featured
|
394
|
|
Visit Site | |
|
★ Featured
|
3,480
|
112 x $3.11
|
Visit Site | |
| Arrow Electronics |
1,020
|
30 x $2.69
|
Visit Site | |
| Onlinecomponents |
537
|
|
Visit Site | |
| RS Americas |
24
|
|
Visit Site | |
| Verical |
1,020
|
30 x $2.69
|
Visit Site |
No issues have been reported for the 5227699-3
If you experienced any issues with the symbol or footprint, please report it.
