5227835-1
TNC Connector Jack, Female Socket 50 Ohms Panel Mount, Through Hole Solder
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 5227835-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

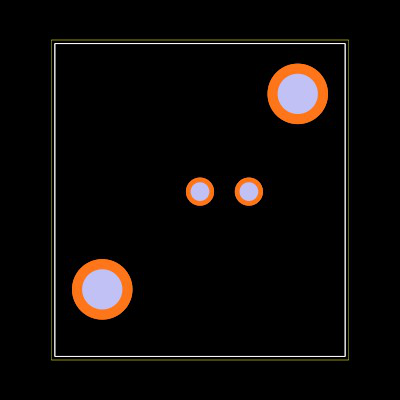

Footprint
No web preview
This Footprint is Available for

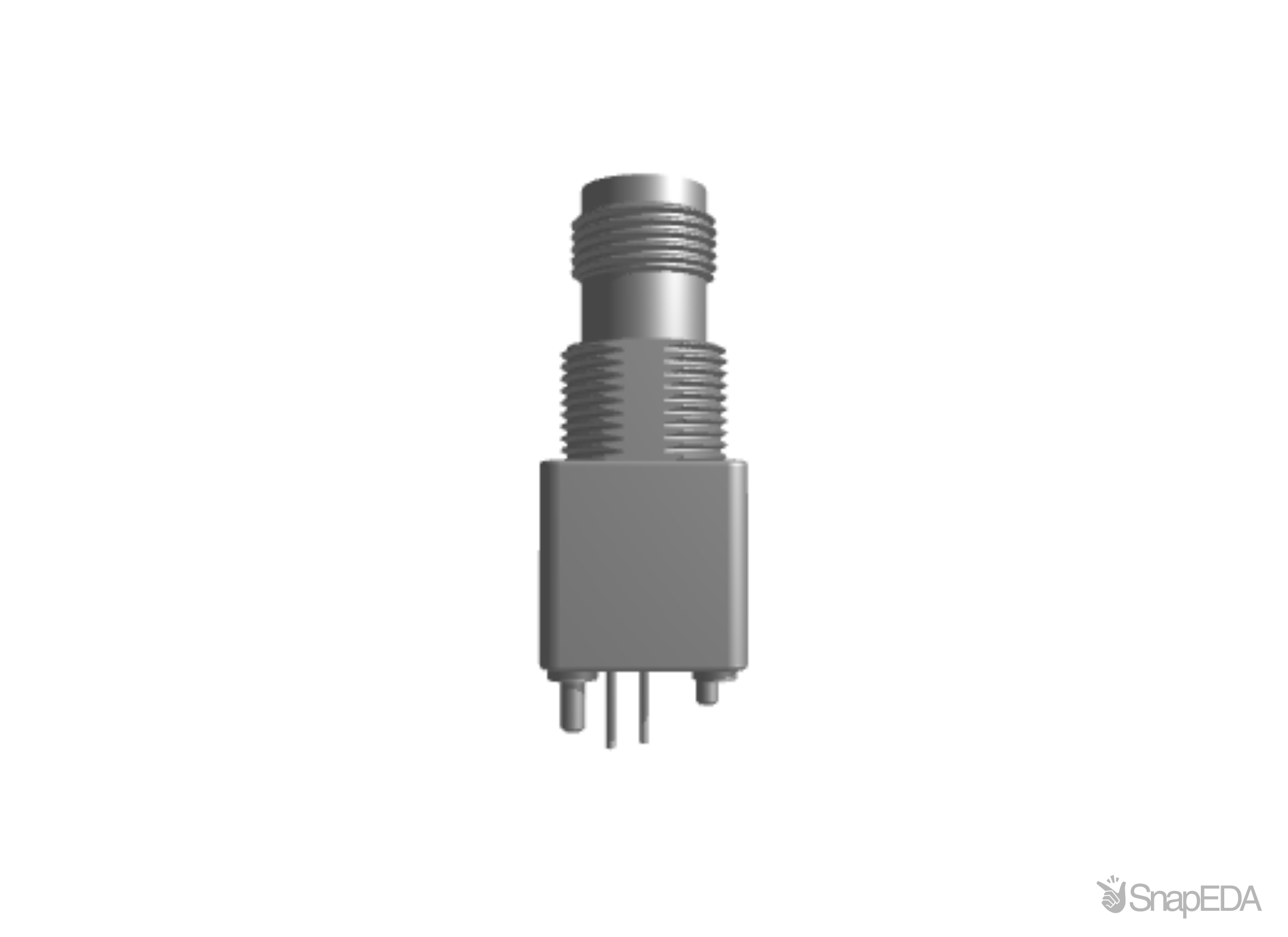

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 5227835-1
| Part Name | 5227835-1 |
| Manufacturer | TE Connectivity |
| RF Contact Captivation Method | Mechanical |
| Port Configuration | Single Port |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| RF Connector Style | Jack |
| PCB Tail Length | 5.33 |
| RF Connector Center Contact Material | Phosphor Bronze |
| Dielectric Material | Polymethylpentene |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Retention | With |
| TE Internal Number | 5227835-1 |
| RF Connector Coupling Mechanism | Screw |
| PCB Mount Orientation | Vertical |
| Connector System | Cable-to-Board |
| Body Plating Material | Nickel |
| Number of Coaxial Contacts | 1 |
| Impedance | 50 |
| Sealable | No |
| Connector Mounting Type | Panel |
| RF Connector Mated Outer Diameter (Approximate) | 16.256 |
| Operating Temperature Range | -55 – 85 |
| Packaging Method | Tray |
| RF Interface | TNC |
| Detent | Without |
| Body Material | Zinc |
| Number of Positions | 1 |
| Operating Frequency | 11 |
| RoHS | True |
| RF Connector Center Contact Plating Material | Gold |
| Height Above PC Board | 1.4 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 5227835-1 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
423
|
35 x $10.80
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Chip One Stop |
420
|
|
Visit Site | |
| Farnell UK |
388
|
|
Visit Site | |
| Heilind Europe |
|
|
Visit Site | |
| Newark |
|
500 x $11.26
|
Visit Site | |
| Onlinecomponents |
421
|
|
Visit Site | |
| Powell Electronics |
279
|
|
Visit Site | |
| Sager |
|
525 x $10.31
|
Visit Site | |
| TE Store |
|
|
Visit Site | |
| Verical |
420
|
|
Visit Site |
No issues have been reported for the 5227835-1
If you experienced any issues with the symbol or footprint, please report it.
