52745-1597
15 Position - Connector Contacts, Top 0.020" (0.50mm) Surface Mount, Right Angle
Availability: Out of Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 52745-1597 by Molex and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

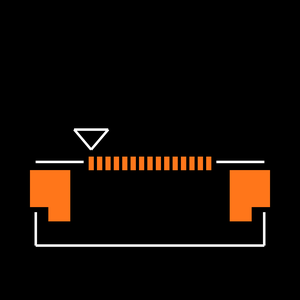

Footprint
No web preview
This Footprint is Available for

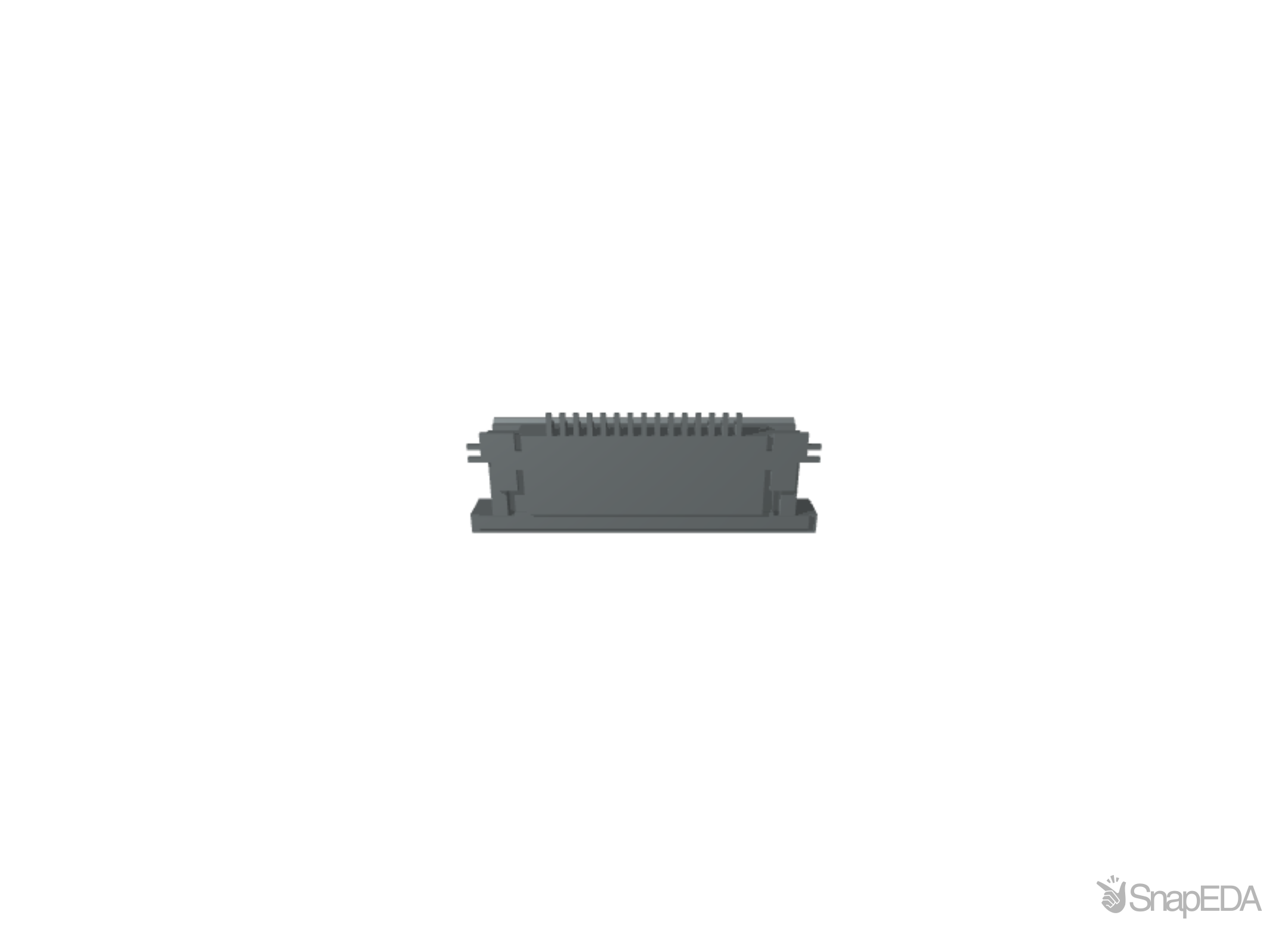

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 52745-1597
| Part Name | 52745-1597 |
| Manufacturer | Molex |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Current Rating (A) | 500 (mA) |
| Termination Type | ZIF |
| Mounting Type | Surface Mount |
| Voltage Rating (V) | 50 V |
| Gender | Female |
| Body Orientation | Right Angle |
| Series Number | 52745 |
| Contact Position | Top |
| Termination Method | Solder |
| Housing Material | Polyamide 46 |
| Number Of Rows | 1 |
| Minimum Operating Temperature | -40 (°C) |
| Pitch | 0.5 (mm) |
| Insertion Force | ZIF |
| Contact Plating | Gold |
| Number Of Contacts | 15 |
| Maximum Operating Temperature | +85 (°C) |
| Contact Material | Phosphor Bronze |
No issues have been reported for the 52745-1597
