52793-0470

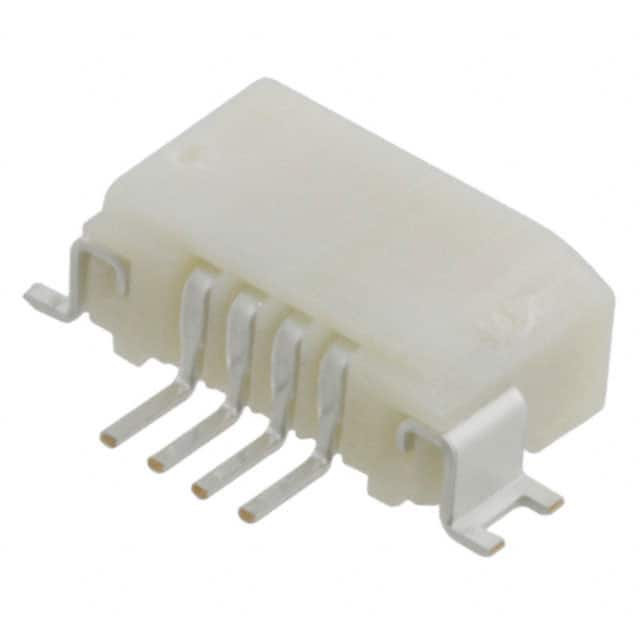

10 FFC Non ZIF HsgAssySMT 4CktEmbsTpPkg | Molex Incorporated 52793-0470
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 52793-0470 by Molex and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 52793-0470
| Part Name | 52793-0470 |
| Manufacturer | Molex |
| Category | Connectors |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Contact Material | Phosphor Bronze |
| Current Rating (A) | 500 (mA) |
| Minimum Operating Temperature | -20 (°C) |
| Mounting Type | Surface Mount |
| Voltage Rating (V) | 50 V |
| Gender | Female |
| Body Orientation | Right Angle |
| Pitch | 1 (mm) |
| Contact Position | Top |
| Housing Material | PPS |
| Number Of Rows | 1 |
| Termination Type | Non-ZIF |
| Termination Method | Solder |
| Insertion Force | Non-ZIF |
| Number Of Contacts | 4 |
| Maximum Operating Temperature | +85 (°C) |
| Series Number | 52793 |
