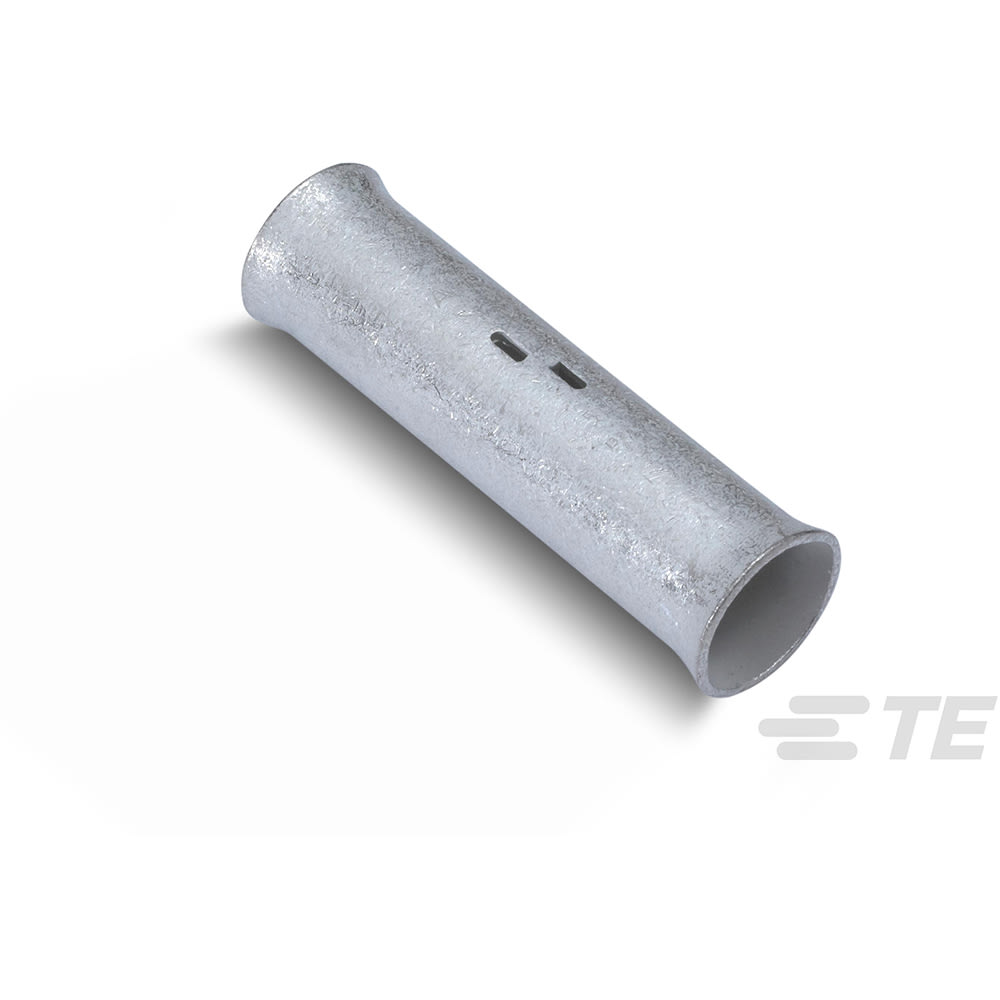

AMPOWER;SPLICE,AMPOWER BUTT 500MCM | TE Connectivity 53089
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 53089 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 53089
| Part Name | 53089 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Contact Plating Thickness | 150 |
| Barrel Style | Long |
| Serrated | No |
| Wire/Cable Type | Copper |
| Insulated | No |
| Splice Type | Butt Splice |
| Plating Material | Tin |
| Contact Plating Material | Tin |
| TE Internal Number | 53089 |
| Discrete Wire Type | Stranded |
| Splice Configuration | Single to Single |
| Agency/Standard Number | E13288 |
| Overall Length | 120.65 |
| Sealable | No |
| Wire Insulation Support | Without |
| Terminal & Splice Type | Splice |
| Termination Method | Crimp |
| Packaging Method | Box |
| Packaging Quantity | 25 |
| Agency/Standard | UL |
| Barrel Type | Closed Barrel |
| Splice Material | Copper |
| RoHS | True |
| Barrel Inside Diameter (Min) | .991 |
| Product Type | Splice |
| Weight per Piece | 233.686 |
| Color | Gray |
| Accessory Type | Splice |
| Wire Size | 500 |
