531137-7
SnapVerified
Connector Header Board Edge, Through Hole, Right Angle 210 position 0.100" (2.54mm)
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 531137-7 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

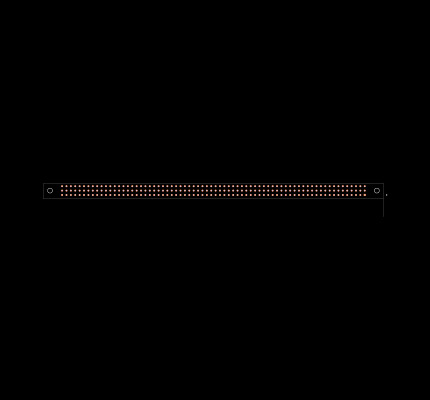

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 531137-7
| Part Name | 531137-7 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Mating Alignment Type | Polarization |
| Centerline (Pitch) | 2.54 |
| Housing Material | Polyphenylene Sulfide (PPS) |
| Connector & Contact Terminates To | Printed Circuit Board |
| Number of Positions | 210 |
| PCB Mount Retention | Without |
| PCB Thickness (Recommended) | 2.44 |
| Termination Post & Tail Length | 3.56 |
| Mating Post Length | .14 |
| TE Internal Number | 531137-7 |
| PCB Mount Orientation | Right Angle |
| Number of Rows | 3 |
| PCB Contact Termination Area Plating Material Thickness | 100 |
| Contact Underplating Material | Nickel |
| Contact Base Material | Brass |
| Contact Shape | Square |
| Housing Color | Brown |
| Packaging Method | Package |
| Packaging Quantity | 1 |
| 端子の下地めっきの材料 | Nickel |
| Mating Alignment | With |
| Contact Mating Area Plating Material | Gold |
| Shrouded End Dimension | .275 |
| RoHS | N |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Strain Relief | Without |
| Post Size | .016 x .018 |
| Panel Mount Feature | Without |
| Contact Mating Area Plating Material Thickness | 30 |
| Row-to-Row Spacing | .1 |
| PCB Connector Assembly Type | PCB Mount Header |
| Connector Contact Load Condition | Fully Loaded |
| Contact Type | Pin |
| PCB Contact Termination Area Plating Material | Tin-Lead |
| Sealable | No |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 531137-7 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
30 x $561.48
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Farnell UK |
16
|
|
Visit Site | |
| Heilind Americas |
|
30 x $598.91
|
Visit Site | |
| Interstate Connecting Components |
|
30 x $598.91
|
Visit Site | |
| Mouser |
|
30 x $580.32
|
Visit Site | |
| Newark |
16
|
1 x $629.62
|
Visit Site | |
| Onlinecomponents |
2
|
|
Visit Site | |
| Powell Electronics |
11
|
|
Visit Site | |
| Sager |
|
3 x $786.06
|
Visit Site | |
| TME |
5
|
|
Visit Site | |
| Verical |
5
|
|
Visit Site |
No issues have been reported for the 531137-7
