53241-2

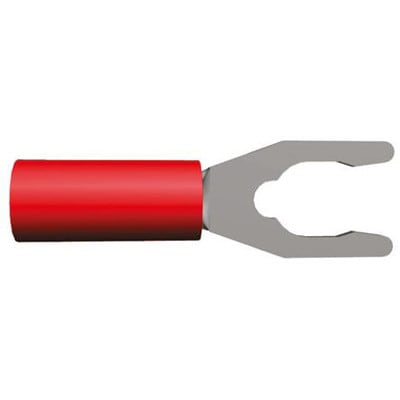

PLASTI-GRIP Series Insulated Crimp Spade Conn, 22 to 16 AWG, M4 (#8), Red Nylon | TE Connectivity 53241-2
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 53241-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

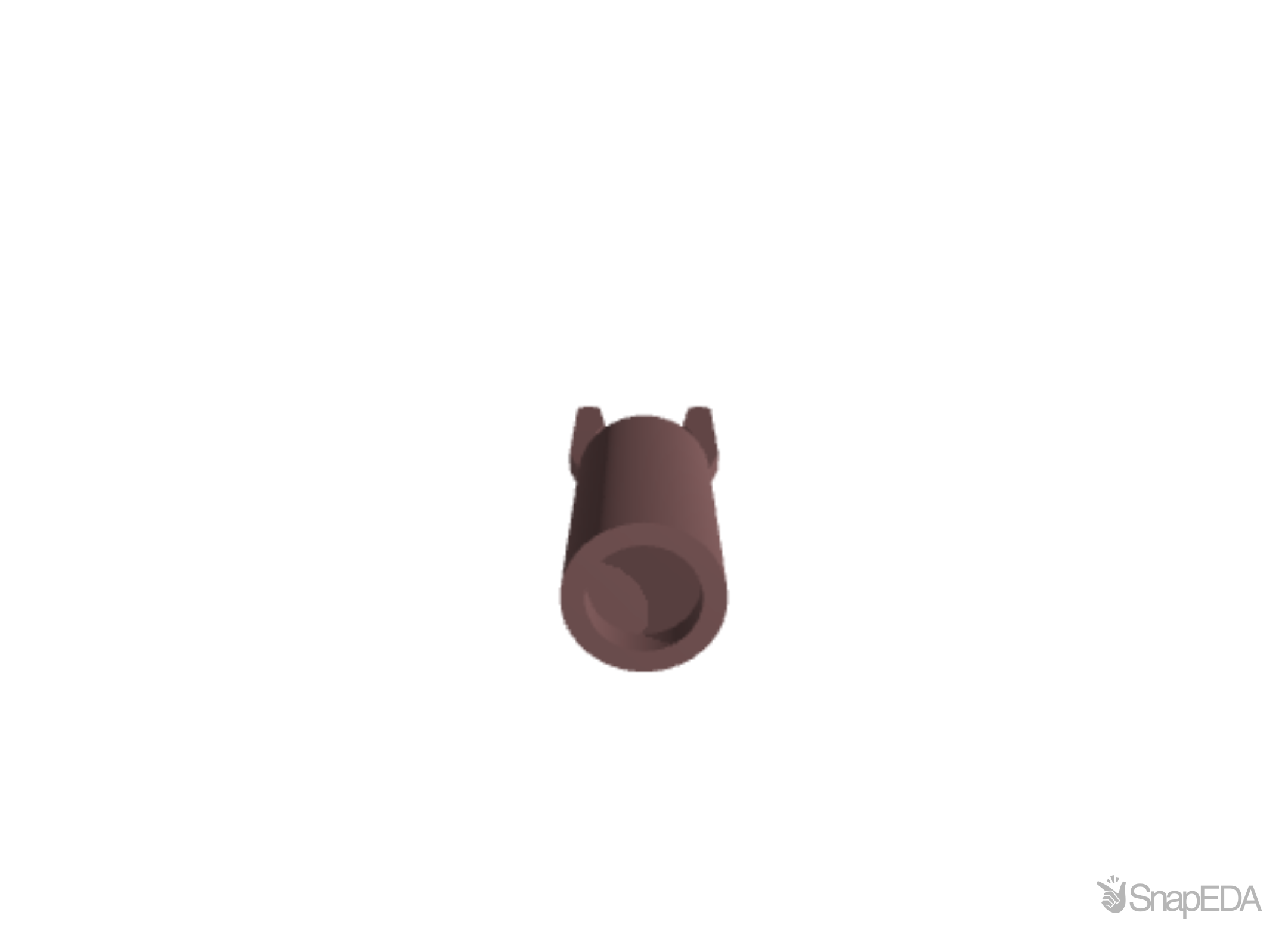

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 53241-2
| Part Name | 53241-2 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Stripe Color | Red |
| Insulation Sleeve Color | Red |
| Wire Insulation Diameter (Max) | 3.56 |
| Wire Insulation Diameter | 2.667 – 3.556 |
| Support Style | Insulation Support |
| Wire/Cable Type | Regular Wire |
| Terminal Angle | Straight |
| Insulated | Yes |
| Plating Material | Tin |
| TE Internal Number | 53241-2 |
| Voltage (Max) (V) | 600 |
| Stud Diameter | .164 |
| Overall Length | 22.15 |
| Sealable | No |
| Wire Insulation Support | With |
| Operating Temperature Range | 105 |
| Terminal & Splice Type | Spring Spade |
| Packaging Method | Tape & Reel |
| Packaging Quantity | 5000 |
| Terminal Orientation | Offset |
| Barrel Type | Closed Barrel |
| RoHS | True |
| Shape Description | SPADE-029 |
| Heavy Duty | No |
| Stud Size | M4 |
| Government Qualified | No |
| Tongue Thickness | .031 |
| Wire Size | 22 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | |
| Minimum Wire Size Mm | 0.26 (mm²) |
| Maximum Wire Size Mm | 1.65 (mm²) |
| Series | PLASTI-GRIP |
| Colour | Red |
| Minimum Wire Size Awg | 22 (AWG) |
| Thickness | 0.79 (mm) |
| Stud Size | M4 (#8) |
| Width | 6.2 (mm) |
| Contact Plating | Tin |
| Overall Length | 22.15 (mm) |
| Insulation | Insulated |
| Maximum Wire Size Awg | 16 (AWG) |
| Insulation Material | Nylon |
| Contact Material | Phosphor Bronze |
