532430-3
SnapVerified
Conn HDI PIN 40 POS 2.54mm Solder ST Thru-Hole Tube
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 532430-3 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

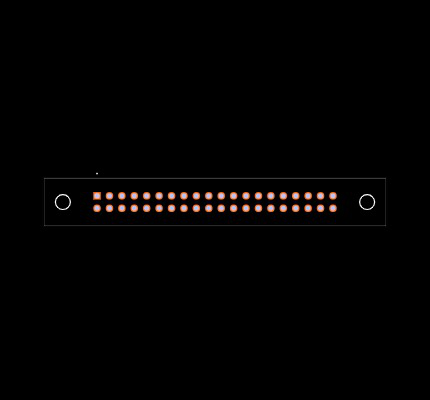

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 532430-3
| Part Name | 532430-3 |
| Manufacturer | TE Connectivity |
| Mating Alignment Type | Polarization |
| Centerline (Pitch) | 2.54 |
| Circuit Application | Signal |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Insulation Resistance | 2 |
| Number of Positions | 40 |
| PCB Mount Retention | Without |
| PCB Thickness (Recommended) | .76 |
| Termination Post & Tail Length | 4.83 |
| Contact Current Rating (Max) (A) | 3 |
| Mating Post Length | .21 |
| TE Internal Number | 532430-3 |
| PCB Mount Orientation | Vertical |
| Connector System | Board-to-Board |
| Connector Height | 11.73 |
| Number of Rows | 2 |
| Housing Color | Black |
| Board-to-Board Configuration | Vertical |
| Connector Mounting Type | Board Mount |
| Operating Temperature Range | -65 – 125 |
| Packaging Method | Tube |
| Packaging Quantity | 8 |
| Contact Configuration | Four-Beam |
| Contact Type | Pin |
| Connector & Contact Terminates To | Printed Circuit Board |
| Mating Alignment | Without |
| Contact Mating Area Plating Material | Gold |
| Stackable | No |
| RoHS | N |
| Life Cycle Status | Factory Special Order |
| Housing Material | Polyphenylene Sulfide (PPS) |
| Contact Base Material | Phosphor Bronze |
| PCB Mount Alignment | Without |
| UL Flammability Rating | UL 94V-0 |
| Contact Mating Area Plating Material Thickness | .76 |
| PCB Connector Assembly Type | PCB Mount Header |
| High Temperature Compatible | Yes |
| Solder Process Feature | Board Standoff |
| PCB Contact Termination Area Plating Material | Tin |
| Sealable | No |
| Make First / Break Last | No |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 532430-3 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
360 x $14.14
|
Visit Site | |
| Mouser |
|
N/A | Visit Site | |
|
★ Featured
|
|
360 x $16.10
|
Visit Site |
No issues have been reported for the 532430-3
