532434-3
SnapVerified
Conn HDI RCP 128 POS 2.54mm Solder RA Thru-Hole Tube
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 532434-3 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

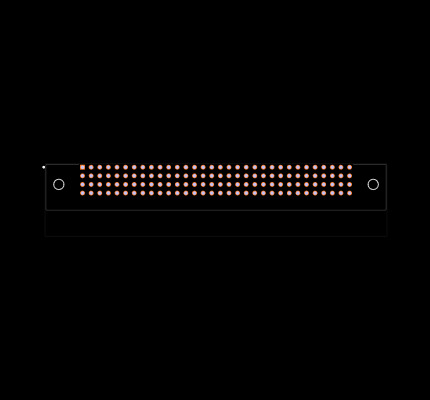

Footprint
No web preview
This Footprint is Available for

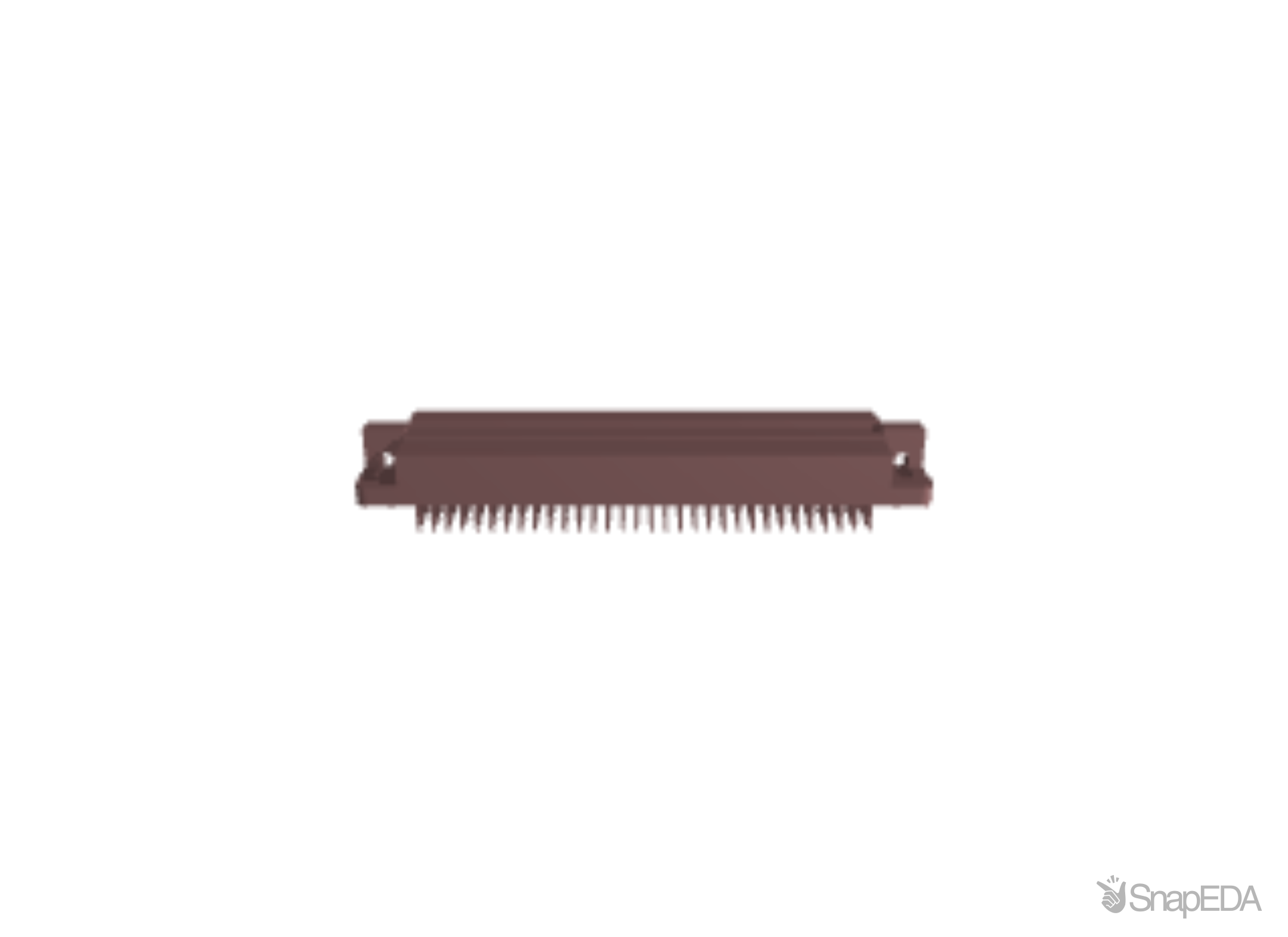

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 532434-3
| Part Name | 532434-3 |
| Manufacturer | TE Connectivity |
| Mating Alignment Type | Keyed |
| Centerline (Pitch) | .1 |
| Circuit Application | Signal |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Insulation Resistance | 4 |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Retention | Without |
| PCB Thickness (Recommended) | .093 |
| Termination Post & Tail Length | 4.57 |
| PCB Connector Assembly Type | PCB Mount Receptacle |
| TE Internal Number | 532434-3 |
| PCB Mount Orientation | Right Angle |
| Connector System | Board-to-Board |
| Connector Height | .46 |
| Number of Rows | 4 |
| Housing Color | Black |
| Sealable | No |
| Connector Mounting Type | Board Mount |
| Assembly Process Feature | None |
| Operating Temperature Range | -85 – 257 |
| Packaging Method | Tube |
| Packaging Quantity | 5 |
| Contact Configuration | Four Beam |
| Contact Layout | Matrix |
| Number of Positions | 128 |
| Mating Alignment | Without |
| Contact Mating Area Plating Material | Gold |
| Stackable | No |
| RoHS | True |
| Housing Material | Thermoplastic |
| Contact Base Material | Copper Alloy |
| PCB Mount Alignment | Without |
| UL Flammability Rating | UL 94V-0 |
| Contact Mating Area Plating Material Thickness | 30 |
| Contact Current Rating (Max) (A) | 3 |
| High Temperature Compatible | Yes |
| Contact Type | Socket |
| PCB Contact Termination Area Plating Material | Tin |
| Board-to-Board Configuration | Right Angle |
| Make First / Break Last | No |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 532434-3 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
N/A | Visit Site |
No issues have been reported for the 532434-3
