533499-1
BOX II 4 ROW RECP ASSY 216 POS
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 533499-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

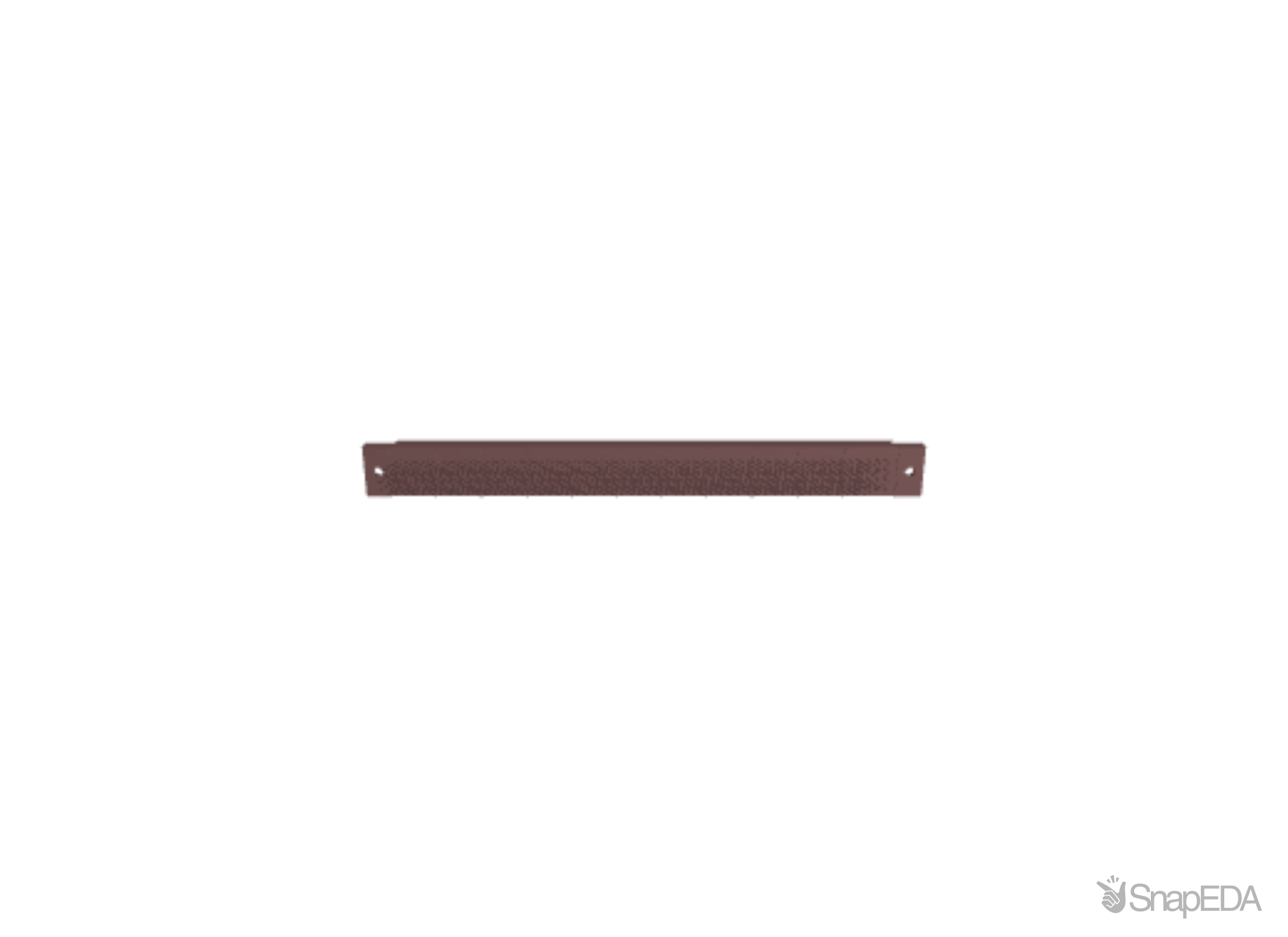

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 533499-1
| Part Name | 533499-1 |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | 2.54 |
| Housing Material | Polyphenylene Sulfide (PPS) |
| Number of Positions | 216 |
| PCB Mount Retention Type | Mounting Hole |
| PCB Mount Retention | Without |
| PCB Thickness (Recommended) | .093 – .125 |
| Termination Post & Tail Length | 4.57 |
| Contact Current Rating (Max) (A) | 3 |
| TE Internal Number | 533499-1 |
| PCB Mount Orientation | Vertical |
| Connector Height | 10.16 |
| Number of Rows | 4 |
| Housing Color | Brown |
| Contact Base Material | Beryllium Copper |
| PCB Contact Termination Area Plating Material Thickness | .6 |
| Operating Temperature Range | -65 – 125 |
| Packaging Method | Tube |
| Packaging Quantity | 3 |
| Contact Configuration | Four-Beam |
| Contact Layout | Matrix |
| Contact Type | Socket |
| Make First / Break Last | No |
| Contact Mating Area Plating Material | Gold |
| Stackable | No |
| RoHS | No |
| Life Cycle Status | Factory Special Order |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Stack Height | .6 |
| Contact Mating Area Plating Material Thickness | 30 |
| Row-to-Row Spacing | .1 |
| PCB Connector Assembly Type | PCB Mount Receptacle |
| High Temperature Compatible | Yes |
| Solder Process Feature | Board Standoff |
| PCB Contact Termination Area Plating Material | Tin-Lead |
| Mating Alignment | Without |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
