53398-1571

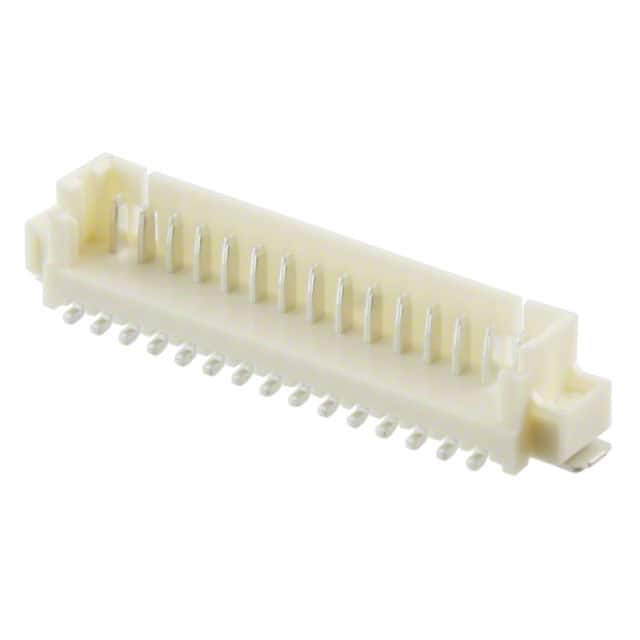

Headers, 1.25MM HDR 15 CKT Vertical | Molex Incorporated 53398-1571
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 53398-1571 by Molex and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 53398-1571
| Part Name | 53398-1571 |
| Manufacturer | Molex |
| Category | Connectors |
| Design Resource | https://www.molex.com/molex/custom-cable-creator/snapeda |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Shrouded/Unshrouded | Shrouded |
| Current Rating (A) | 1.0 (A) |
| Mounting Type | Surface Mount |
| Voltage Rating (V) | 125.0 V |
| Series | PicoBlade |
| Body Orientation | Straight |
| Pitch | 1.25 (mm) |
| Connector System | Wire to Board |
| Number Of Rows | 1 |
| Contact Plating | Tin |
| Termination Method | Solder |
| Contact Material | Phosphor Bronze |
| Number Of Contacts | 15 |
| Series Number | 53398 |
Inventory for the 53398-1571 by Molex from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
5,247
|
|
Visit Site | |
|
★ Featured
|
2,669
|
|
Visit Site | |
|
★ Featured
|
5,174
|
1,385 x $0.25
|
Visit Site | |
| Avnet America |
4,200
|
|
Visit Site | |
| Chip One Stop |
4,553
|
|
Visit Site | |
| Compona AG |
|
5,600 x $0.54
|
Visit Site | |
| Conrad |
995
|
|
Visit Site | |
| CoreStaff |
5,777
|
|
Visit Site | |
| Farnell UK |
11,758
|
|
Visit Site | |
| Heilind Americas |
73
|
|
Visit Site | |
| Interstate Connecting Components |
22
|
|
Visit Site | |
| Newark |
11,758
|
1 x $1.39
|
Visit Site | |
| Sager |
|
|
Visit Site | |
| TME |
|
|
Visit Site | |
| TTI Americas |
6,000
|
|
Visit Site | |
| Verical |
5,777
|
|
Visit Site | |
| element14 Singapore |
11,758
|
|
Visit Site |
No issues have been reported for the 53398-1571
If you experienced any issues with the symbol or footprint, please report it.
