535598-2
SnapVerified
02 MODIV VRT DR CE RCPT ASSY
Availability: Out of Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 535598-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

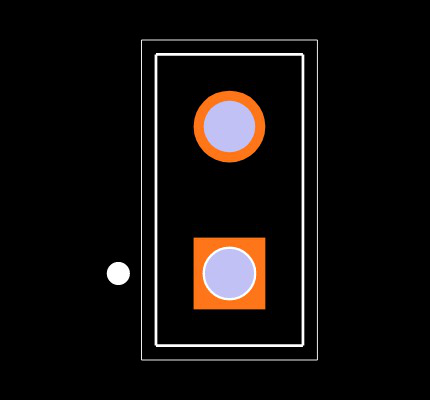

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 535598-2
| Part Name | 535598-2 |
| Manufacturer | TE Connectivity |
| Contact Resistance | 12 |
| Centerline (Pitch) | 2.54 |
| Dielectric Withstanding Voltage (V) | 750 |
| PCB Contact Termination Area Plating Material | Tin-Lead |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Insulation Resistance | 5000 |
| PCB Contact Termination Area Plating Thickness | 3.81 |
| For Use With | Mates with Headers |
| PCB Mount Orientation | Vertical |
| Connector & Contact Terminates To | Printed Circuit Board |
| Profile | Low |
| PCB Mount Retention | Without |
| PCB Thickness (Recommended) | 1.57 |
| TE Internal Number | 535598-2 |
| Boss | No |
| MIL-C-55032 | No |
| Housing Color | Black |
| Applied Pressure | Standard |
| Contact Base Material | Phosphor Bronze |
| Housing Entry Style | Closed Entry |
| Connector Assembly Type | PCB Mount Receptacle |
| Operating Temperature Range | -65 to 125 |
| Number of Rows | 2 |
| Packaging Method | Box & Tube |
| Connector Type | Connector Assembly |
| Packaging Quantity | 220 |
| Tail Length | 3.18 |
| Contact Type | Socket |
| Number of Positions | 2 |
| Contact Mating Area Plating Material | Gold |
| Contact Configuration | Short Point |
| RoHS | N |
| Approved Standards | CSA LR7189 |
| Housing Material | Polyester - GF |
| Product Type | Connector |
| Termination Post Length | .125 |
| UL Flammability Rating | UL 94V-0 |
| Height | 5.03 |
| Row-to-Row Spacing | .1 |
| Contact Current Rating (Max) (A) | 2 |
| Contact Mating Area Plating Thickness | 10 |
| Voltage (V) | 333 |
| High Temperature Compatible | No |
| Solder Process Feature | Board Standoff |
| Stackable | Yes |
| Sealable | No |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
