536366-6
SnapVerified
96 Position Din Connector Plug, Male Pins Gold Through Hole, Right Angle
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 536366-6 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

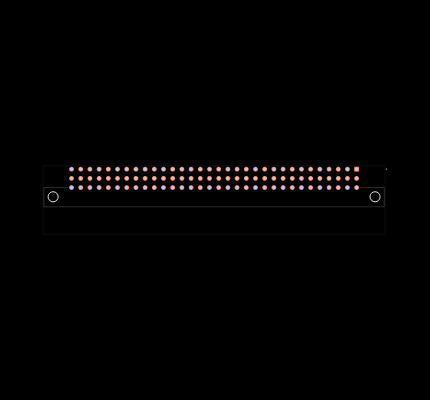

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 536366-6
| Part Name | 536366-6 |
| Manufacturer | TE Connectivity |
| Mating Alignment Type | Polarization |
| Centerline (Pitch) | .1 |
| Circuit Application | Signal |
| Housing Material | Polyester - GF |
| Row-to-Row Spacing | .1 |
| Post Type | Solder Post |
| Connector & Contact Terminates To | Printed Circuit Board |
| Connector Style | Plug |
| Number of Positions | 96 |
| PCB Mount Retention Type | Boardlock |
| PCB Mount Retention | With |
| PCB Thickness (Recommended) | 1.57 |
| Termination Post & Tail Length | .104 |
| TE Internal Number | 536366-6 |
| PCB Mount Orientation | Right Angle |
| Connector System | Board-to-Board |
| Mating Retention | With |
| Connector Height | .495966 |
| Number of Rows | 3 |
| Number of Signal Positions | 96 |
| Sealable | No |
| Connector Mounting Type | Board Mount |
| Contact Transmits (Typical) | Signal (Data) |
| Number of Columns | 32 |
| Operating Temperature Range | -55 – 105 |
| Shielded | No |
| Make First / Break Last Contacts Loaded | Row A - None |
| Packaging Method | Box |
| Contact Termination Area Plating Material | Tin-Lead |
| Interface Type | Eurocard/DIN 41612 |
| Contact Mating Area Plating Material | Gold |
| RoHS | N |
| DIN Size | Standard |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Contact Base Material | Brass |
| Color | Gray |
| Rows Loaded | C |
| Mating Alignment | With |
| PCB Mount Alignment | Without |
| Contact Mating Area Plating Material Thickness | .76 |
| Panel Mount Feature | Without |
| Contact Current Rating (Max) (A) | 1.5 |
| DIN Level | II |
| Contact Cross Section | .02 x .053 |
| Contact Type | Pin |
| Contact Termination Area Plating Thickness | 99.9998 – 199.9996 |
| Board-to-Board Configuration | Right Angle |
| Guides | Without |
| Make First / Break Last | Yes |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
