536405-5
SnapVerified
96 Position Din Connector Plug, Male Pins Gold Through Hole, Right Angle
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 536405-5 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

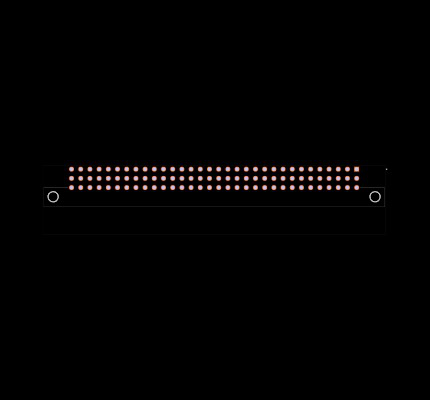

Footprint
No web preview
This Footprint is Available for

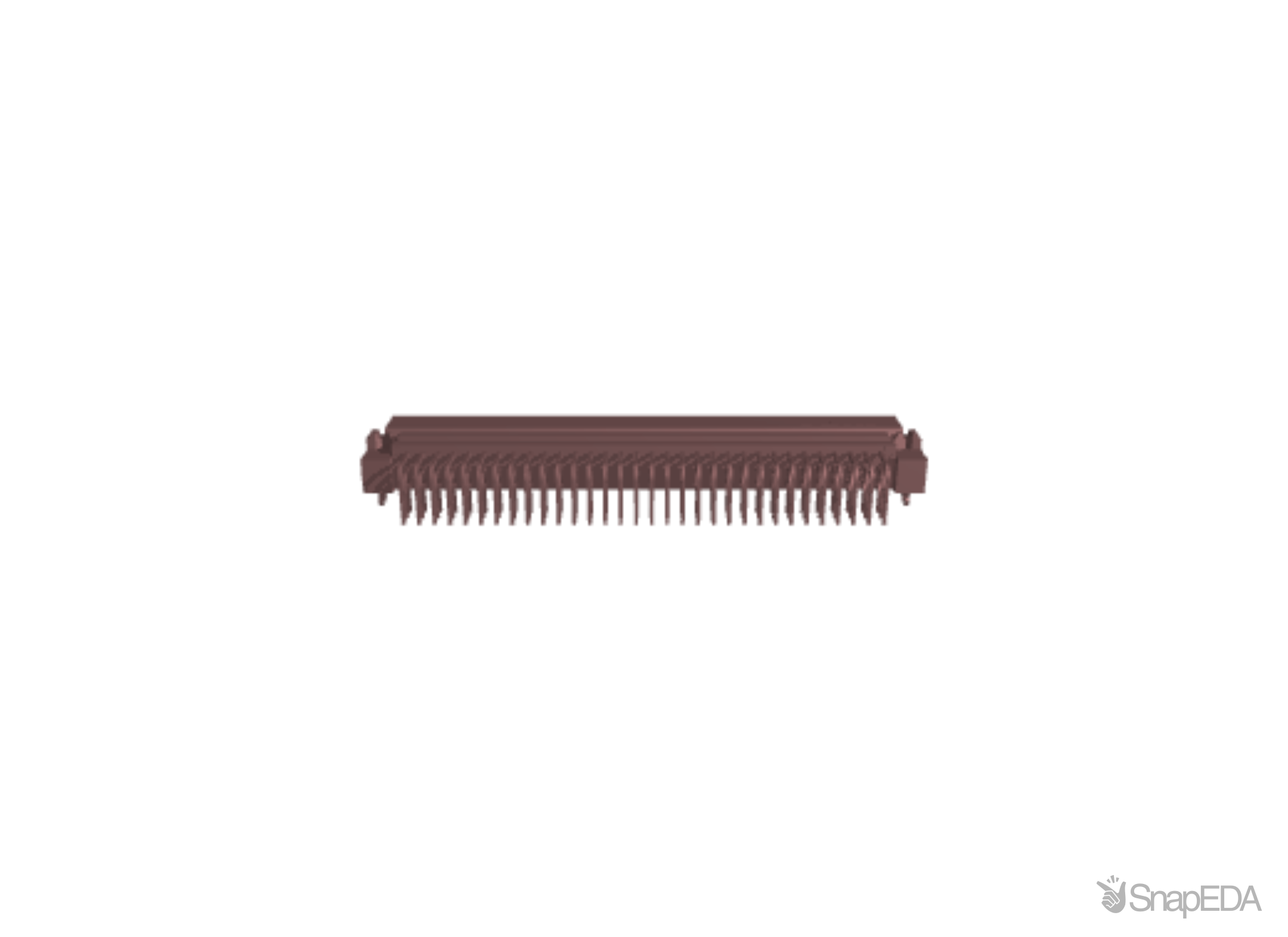

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 536405-5
| Part Name | 536405-5 |
| Manufacturer | TE Connectivity |
| Number of Positions | 96 |
| Connector System | Board-to-Board |
| Board-to-Board Configuration | Right Angle |
| Zeilenanzahl | 3 |
| Centerline (Pitch) | .1 |
| Operating Temperature Range | -67 – 221 |
| Circuit Application | Power |
| TE Internal Number | 536405-5 |
| Connector Mounting Type | Board Mount |
| Housing Material | Glass Filled Polyester |
| Contact Current Rating (Max) (A) | 3 |
| Connector Contact Load Condition | Fully Loaded |
| Row-to-Row Spacing | .1 |
| Connector Style | Plug |
| PCB Mount Orientation | Right Angle |
| Connector & Contact Terminates To | Printed Circuit Board |
| RoHS | N |
| Housing Color | Gray |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 536405-5 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
873
|
|
Visit Site | |
|
★ Featured
|
1,098
|
N/A | Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Buerklin |
|
300 x $8.03
|
Visit Site | |
| Conrad |
|
1 x $7.59
|
Visit Site | |
| Heilind Europe |
|
|
Visit Site | |
| Mouser |
|
|
Visit Site | |
| Sager |
|
600 x $9.09
|
Visit Site | |
| TE Connectivity |
893
|
|
Visit Site |
No issues have been reported for the 536405-5
If you experienced any issues with the symbol or footprint, please report it.
