5406275-3
MJ ASSY,4P,8POS,SH,RVPGT,CAT5
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 5406275-3 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

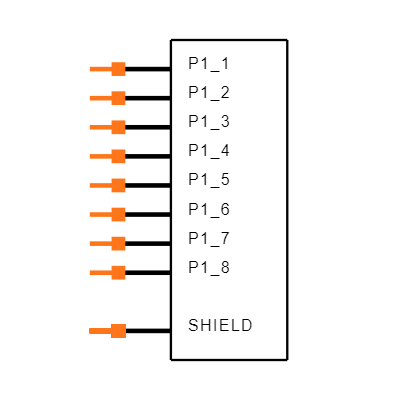

Symbol
No web preview
This Symbol is Available for

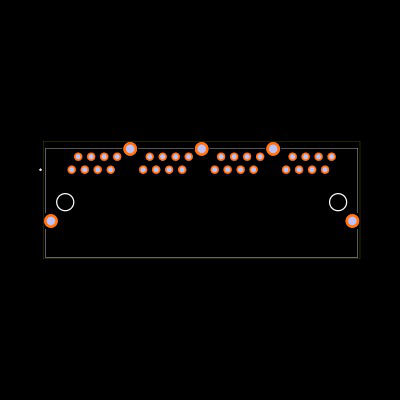

Footprint
No web preview
This Footprint is Available for

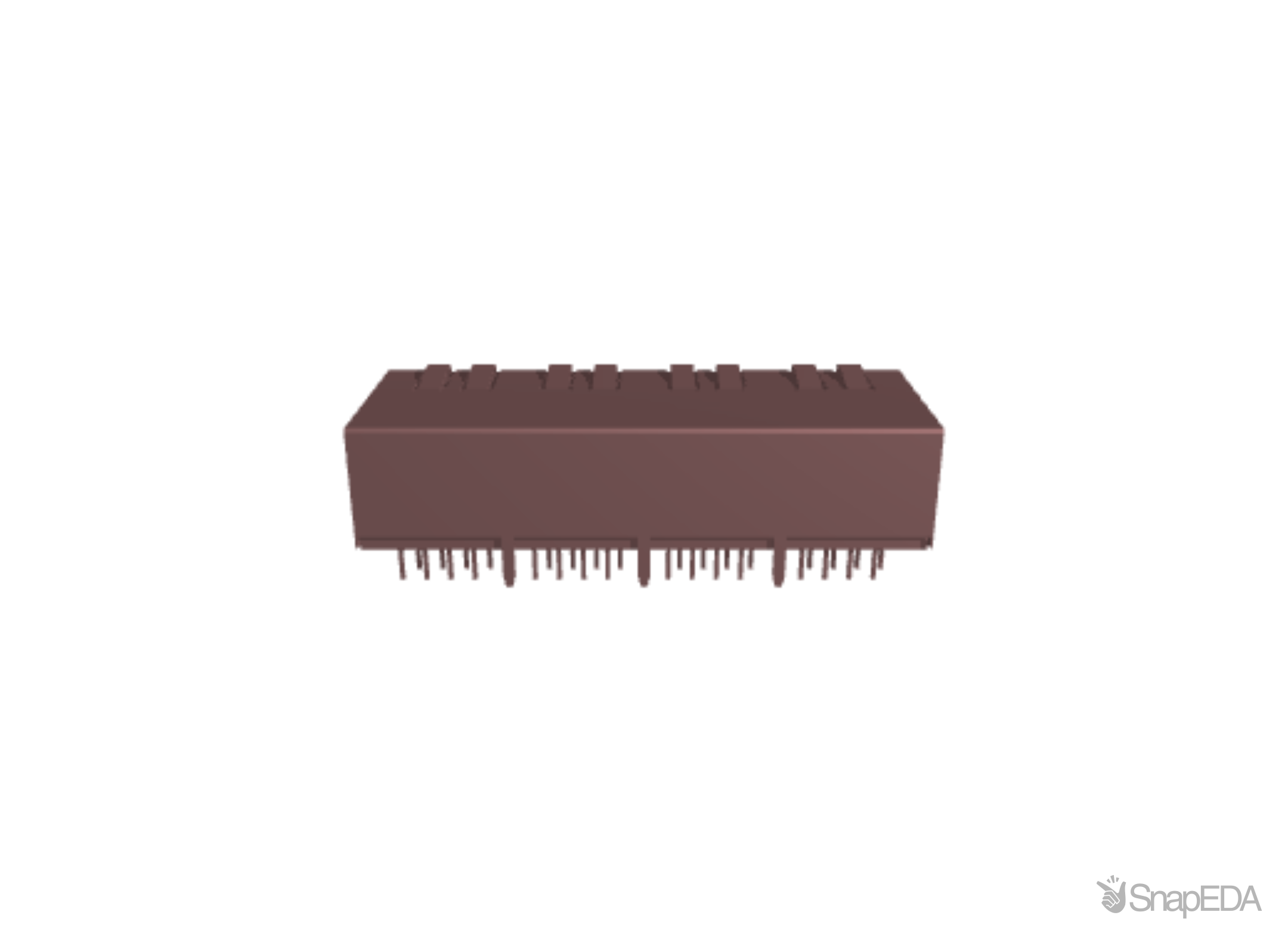

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 5406275-3
| Part Name | 5406275-3 |
| Manufacturer | TE Connectivity |
| コネクタ製品タイプ | Connector Assembly |
| 端子の下地めっきの材料 | Nickel |
| Centerline (Pitch) | .04 |
| Circuit Application | Signal |
| Port Configuration | Multiple Ports |
| Connector Product Type | Connector Assembly |
| Modular Jack Latch Orientation | Standard - Latch Down |
| Housing Material | High Temperature Nylon |
| PCB Ground Tab Location | 3.68 |
| Connector & Contact Terminates To | Printed Circuit Board |
| Number of Positions | 8 |
| Number of Loaded Positions | 8 |
| Panel Mount Feature | Without |
| Connectors & Connector Components Type | Connector |
| Part Category | RJ45 Connectors |
| TE Internal Number | 5406275-3 |
| PCB Tail Length | 3.56 |
| PCB Mount Orientation | Right Angle |
| Status Indicator | None |
| Connector Height | .537 |
| Housing Color | Black |
| Contact Underplating Material | Nickel |
| Contact Base Material | Phosphor Bronze |
| Connector Mounting Type | Board Mount |
| Operating Temperature Range | -40 – 185 |
| Shielded | Yes |
| Mating Entry Location | Side |
| Port Matrix Configuration | 1 x 4 |
| Packaging Method | Box & Tray |
| Packaging Quantity | 20 |
| Keyed | No |
| Multiple Port Configuration | Ganged |
| Modular Jacks & Plugs Products | RJ Type Jacks & Plugs |
| Contact Mating Area Plating Material | Gold |
| Modular Jack & Plug Interface Type | RJ45 |
| RoHS | True |
| Connector Contact Density | Standard |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Shield Plating Material | Tin over Copper |
| Number of PCB Ground Tabs | 5 |
| Modular Connector Style | Jack |
| Shield Material | Copper Zinc Alloy |
| Performance Category | Cat 5 |
| UL Flammability Rating | UL 94V-0 |
| Contact Mating Area Plating Material Thickness | 50 |
| Grounding Options | PCB and Panel Ground |
| Contact Current Rating (Max) (A) | .2 |
| Connector Profile | Standard |
| PCB Contact Termination Area Plating Material | Tin |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 5406275-3 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
1,600
|
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Boersig GmbH |
|
1 x $11.57
|
Visit Site | |
| Chip One Stop |
189
|
1,600 x $11.90
|
Visit Site | |
| Conrad |
189
|
|
Visit Site | |
| Heilind Americas |
|
1,600 x $11.35
|
Visit Site | |
| Newark |
189
|
100 x $15.76
|
Visit Site | |
| Onlinecomponents |
38
|
|
Visit Site | |
| Sager |
|
1,600 x $14.18
|
Visit Site | |
| TE Store |
1,600
|
|
Visit Site | |
| TTI Europe |
|
|
Visit Site |
