5406874-1
Conn IEEE 488 F 50 POS 2.16mm Solder ST Thru-Hole 50 Terminal 1 Port Tray
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 5406874-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
2D Model
The 2D model for this
part is not available

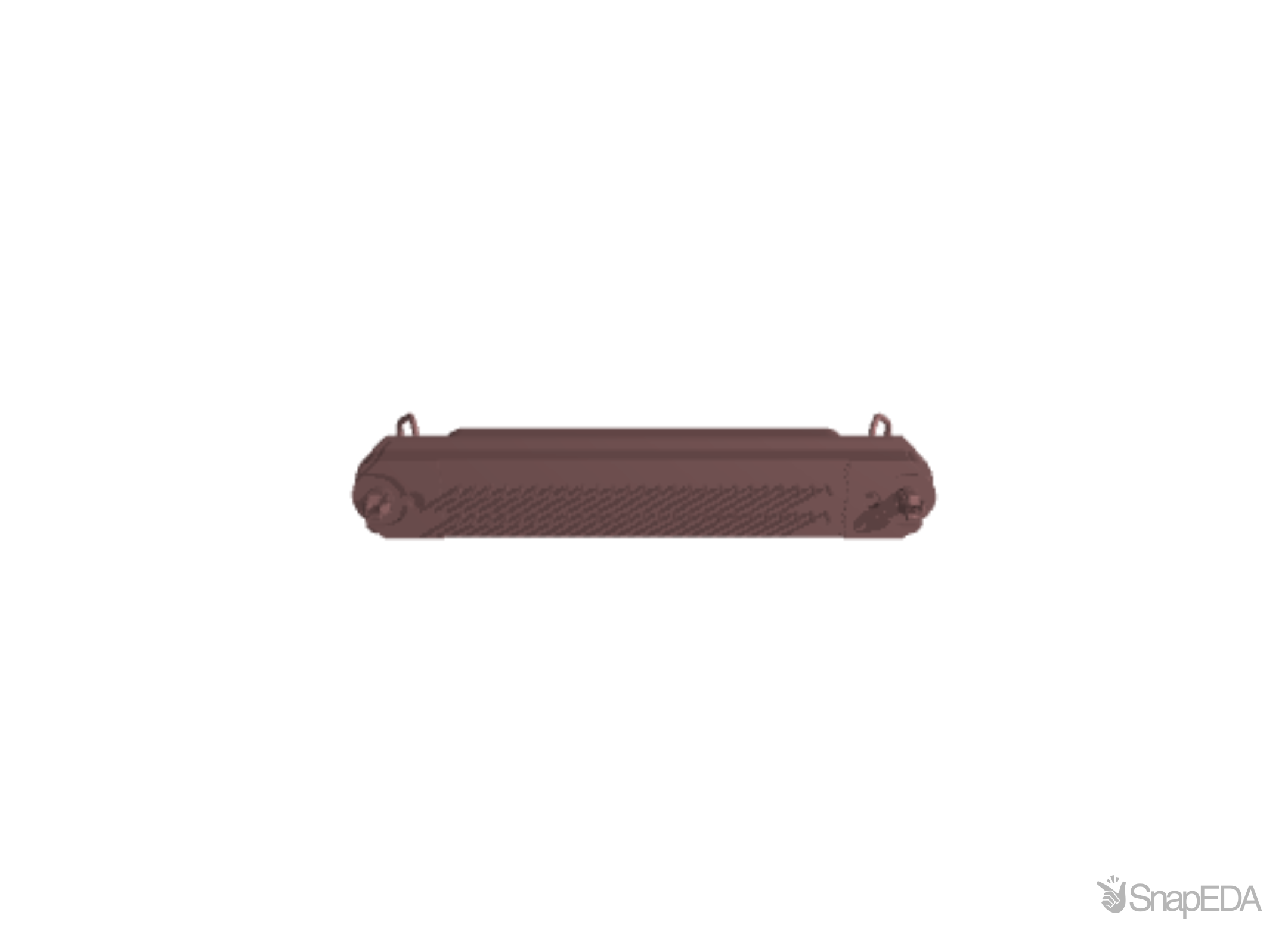

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 5406874-1
| Part Name | 5406874-1 |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | 2.16 |
| Grounded | No |
| Circuit Application | Signal |
| Housing Material | Polyester |
| Row-to-Row Spacing | .085 |
| Boss on Shield | With |
| Connector & Contact Terminates To | Printed Circuit Board |
| Connector Style | Receptacle |
| Mating Connector Lock Type | Bail Lock |
| Number of Positions | 50 |
| PCB Mount Retention Type | Boardlock |
| Profile | Low |
| PCB Mount Retention | With |
| TE Internal Number | 5406874-1 |
| PCB Mount Orientation | Vertical |
| Connector System | Board-to-Board |
| Shielded | Yes |
| Number of Rows | 2 |
| Housing Color | Black |
| Product Type | Connector |
| Connector Mounting Type | Board Mount |
| Panel Attachment Style | Rear Mount |
| Mounting Hole Diameter | .128 |
| Packaging Method | Tray |
| Boardlock Material | Copper Alloy |
| Packaging Quantity | 7 |
| Contact Base Material | Copper Alloy |
| Contact Mating Area Plating Material | Gold |
| PCB Mounting Style | Edge Mount |
| Shield Plating Material | Nickel |
| Sealable | No |
| Orientation | Standard |
| Termination Post Length | .145 |
| Color | Black |
| Shield Material | Carbon Steel |
| Boardlock Plating Material | Tin over Nickel |
| Panel Mount Feature | With |
| Contact Mating Area Plating Thickness | .76 |
| PCB Contact Termination Area Plating Material | Tin |
| Preloaded | Yes |
| Mating Connector Lock | With |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the 5406874-1 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
89
|
|
Visit Site | |
|
★ Featured
|
136
|
|
Visit Site | |
| Arrow Electronics |
4
|
1 x $1.71
|
Visit Site | |
| Avnet Asia |
|
|
Visit Site | |
| Chip One Stop |
905
|
|
Visit Site | |
| Heilind Electronics |
|
1,120 x $9.13
|
Visit Site | |
| Newark |
905
|
1 x $9.60
|
Visit Site | |
| Onlinecomponents |
549
|
|
Visit Site | |
| Sager |
|
1,120 x $10.35
|
Visit Site | |
| TME |
905
|
|
Visit Site | |
| Verical |
4
|
4 x $1.71
|
Visit Site |
No issues have been reported for the 5406874-1
If you experienced any issues with this part, please report it.
