5413631-1
Right Angle 50Ohms Through Hole BNC Connector jack Solder Termination Nickel | TE Connectivity 5413631-1
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 5413631-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

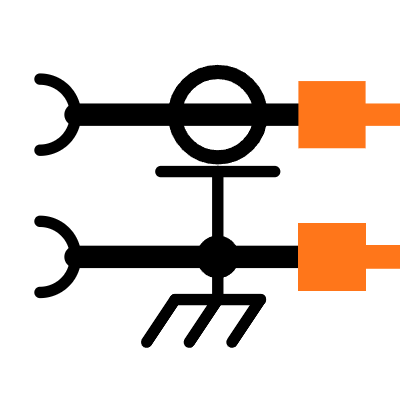

Symbol
No web preview
This Symbol is Available for

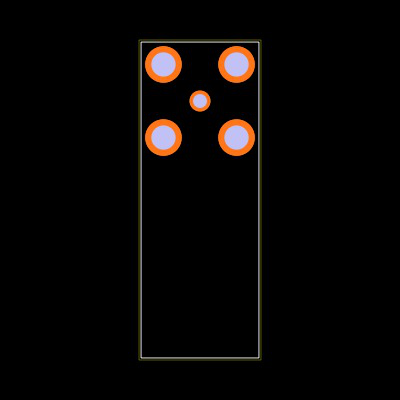

Footprint
No web preview
This Footprint is Available for

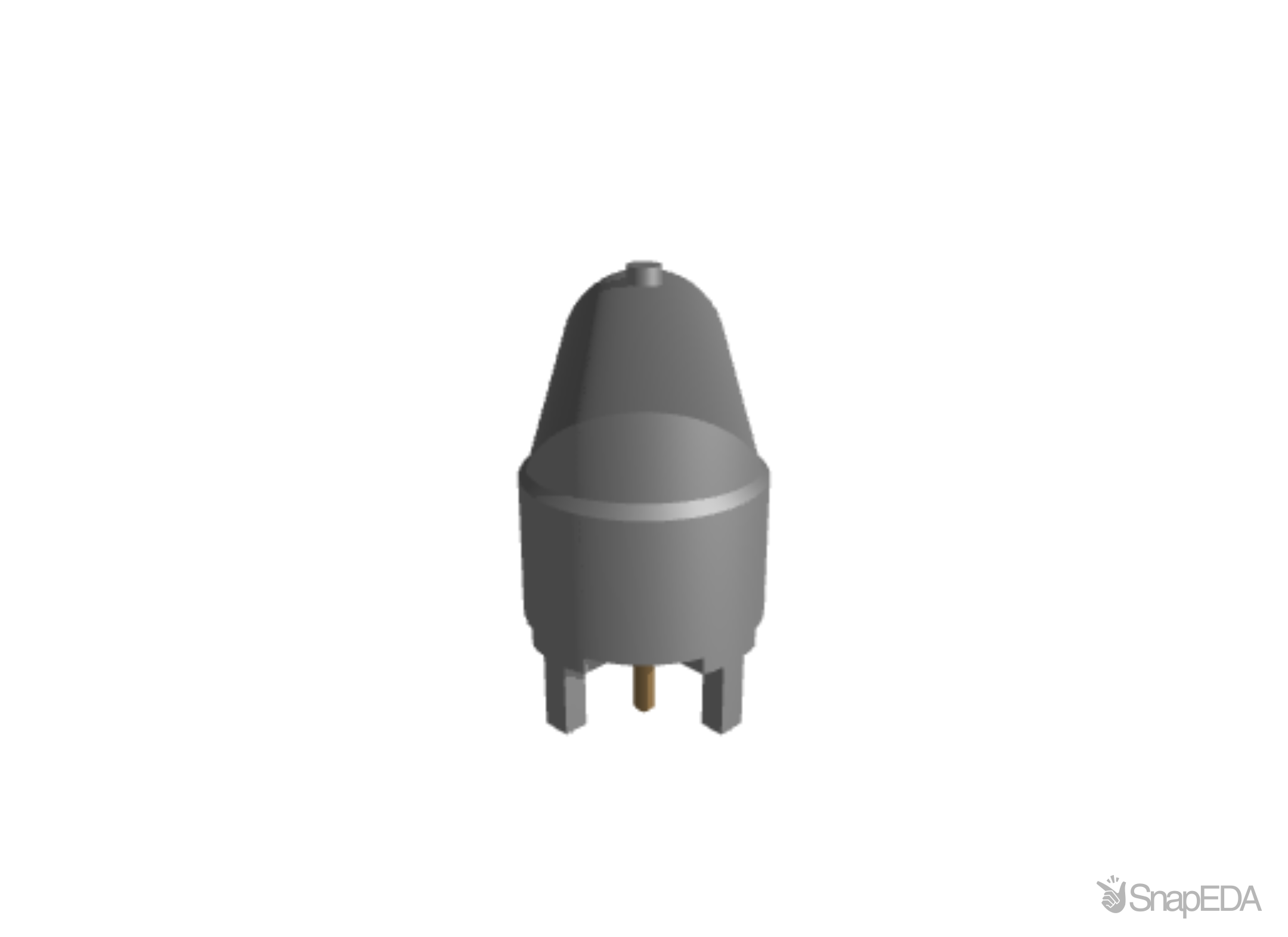

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 5413631-1
| Part Name | 5413631-1 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| RF Contact Captivation Method | Mechanical |
| Port Configuration | Single Port |
| Termination Method to Printed Circuit Board | Through Hole |
| Body Insulation | Without |
| RF Connector Style | Jack |
| PCB Tail Length | 4.34 |
| RF Connector Center Contact Material | Beryllium Copper |
| Dielectric Material | Polymethylpentene |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Retention | Without |
| TE Internal Number | 5413631-1 |
| RF Connector Coupling Mechanism | Bayonet |
| PCB Mount Orientation | Right Angle |
| Connector System | Cable-to-Board |
| Body Plating Material | Nickel |
| Number of Coaxial Contacts | 1 |
| Impedance | 50 |
| Sealable | No |
| Connector Mounting Type | Panel |
| RF Connector Mated Outer Diameter (Approximate) | .572 |
| RF Connector Center Contact Plating Thickness | 1270 |
| Operating Temperature Range | -55 – 85 |
| Packaging Method | Package |
| RF Interface | BNC |
| Detent | With |
| Body Material | Zinc |
| Number of Positions | 1 |
| Operating Frequency | 4 |
| RoHS | True |
| Grade | Commercial |
| RF Connector Center Contact Plating Material | Gold |
| Height Above PC Board | .432 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Body Plating | Nickel |
| Mounting Type | PCB Mount |
| Gender | Female |
| Body Orientation | Right Angle |
| Distrelec Product Id | 30267391 |
| Bulkhead | Yes |
| Coaxial Connector Type | BNC Connector |
| Minimum Operating Temperature | -55 (°C) |
| Termination Method | Through Hole |
| Operating Frequency | 0 to 4 (GHz) |
| Impedance | 50 (Ω) |
| Contact Plating | Gold |
| Maximum Operating Temperature | +85 (°C) |
| Contact Material | Beryllium Copper |
Inventory for the 5413631-1 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
1,046
|
|
Visit Site | |
|
★ Featured
|
66
|
42 x $8.33
|
Visit Site | |
| Arrow Electronics |
4,468
|
1 x $3.64
|
Visit Site | |
| Avnet America |
242
|
|
Visit Site | |
| Buerklin |
|
|
Visit Site | |
| Chip One Stop |
297
|
1 x $4.16
|
Visit Site | |
| CoreStaff |
500
|
|
Visit Site | |
| Farnell UK |
162
|
|
Visit Site | |
| Heilind Americas |
9,017
|
|
Visit Site | |
| Interstate Connecting Components |
2,104
|
|
Visit Site | |
| Newark |
832
|
|
Visit Site | |
| Onlinecomponents |
1,517
|
|
Visit Site | |
| Powell Electronics |
29
|
|
Visit Site | |
| Sager |
|
|
Visit Site | |
| TME |
53
|
|
Visit Site | |
| TTI Americas |
3,676
|
2 x $3.81
|
Visit Site | |
| Verical |
53
|
|
Visit Site | |
| element14 Singapore |
161
|
|
Visit Site |
