5413969-2
BNC Connector Jack, Female Socket 50 Ohms Through Hole Solder
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 5413969-2 by TE Connectivity AMP Connectors and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

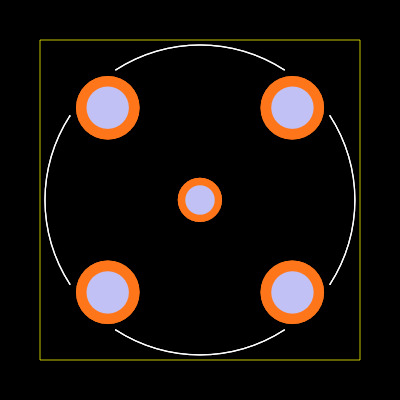

Footprint
No web preview
This Footprint is Available for

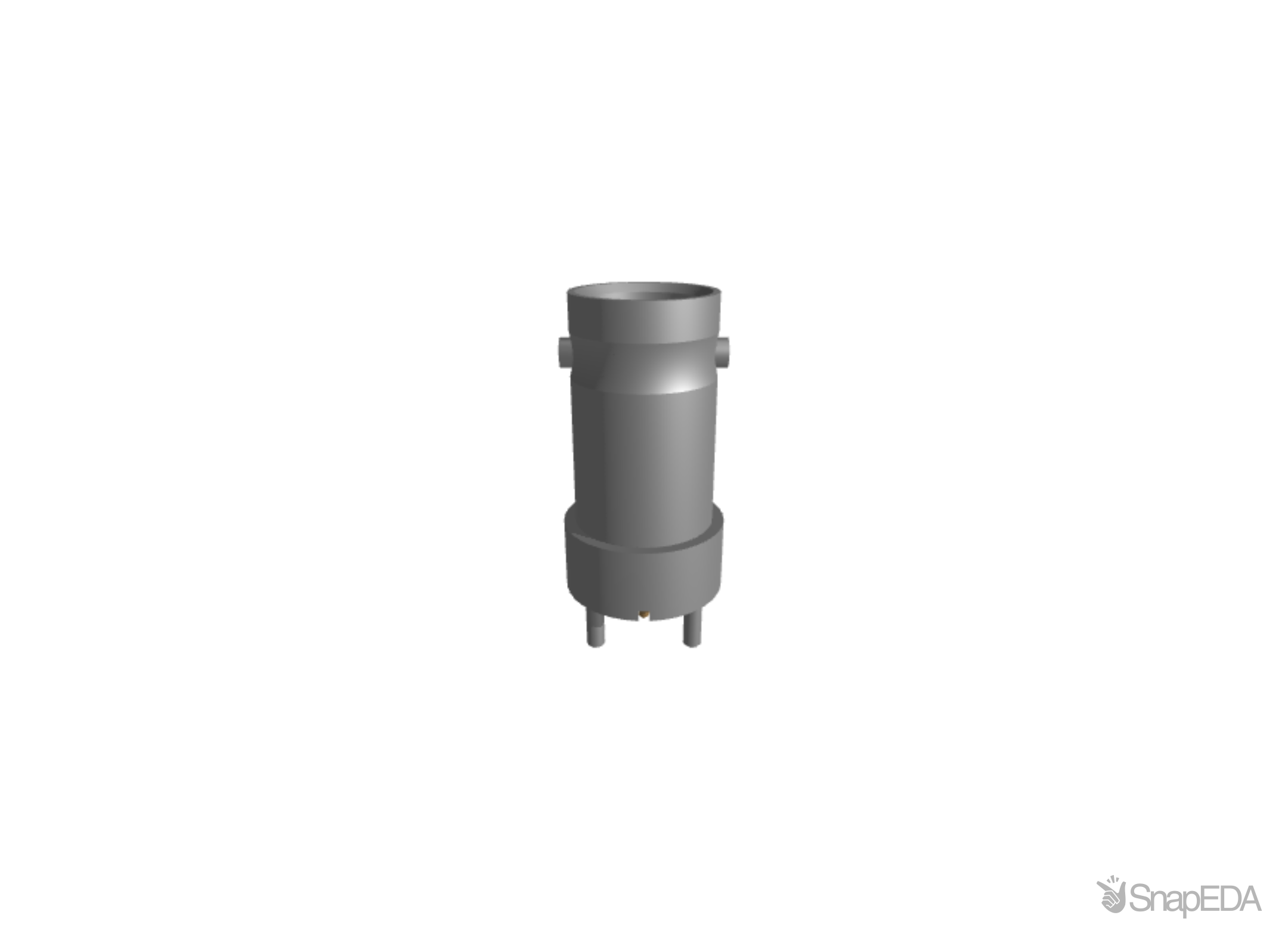

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 5413969-2
| Part Name | 5413969-2 |
| Manufacturer | TE Connectivity |
| RF Contact Captivation Method | Mechanical |
| Port Configuration | Single Port |
| Termination Method to Printed Circuit Board | Through Hole |
| Body Insulation | Without |
| RF Connector Style | Jack |
| RF Connector Coupling Mechanism | Bayonet |
| RF Connector Center Contact Material | Beryllium Copper |
| Dielectric Material | PTFE |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Retention | Without |
| TE Internal Number | 5413969-2 |
| PCB Tail Length | 3.3 |
| PCB Mount Orientation | Vertical |
| Connector System | Cable-to-Board |
| Body Plating Material | Tin |
| Number of Coaxial Contacts | 1 |
| Impedance | 50 |
| Sealable | No |
| Connector Mounting Type | Board Mount |
| RF Connector Mated Outer Diameter (Approximate) | .572 |
| RF Connector Center Contact Plating Thickness | 1080 |
| Operating Temperature Range | -67 – 185 |
| Packaging Method | Carton |
| RF Interface | BNC |
| Detent | With |
| Body Material | Zinc |
| Number of Positions | 1 |
| Operating Frequency | 4 |
| Grade | Commercial |
| RF Connector Center Contact Plating Material | Gold |
| Height Above PC Board | .81 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Contact Material | Beryllium Copper |
| Body Plating | Tin |
| Mounting Type | Through Hole |
| Gender | Female |
| Body Orientation | Straight |
| Coaxial Connector Type | BNC Connector |
| Minimum Operating Temperature | -55 (°C) |
| Termination Method | Solder |
| Operating Frequency | 4 (GHz) |
| Impedance | 50 (Ω) |
| Contact Plating | Gold |
| Size | Miniature |
| Maximum Operating Temperature | +85 (°C) |
| Series Number | 5413969 |
