551-0207F

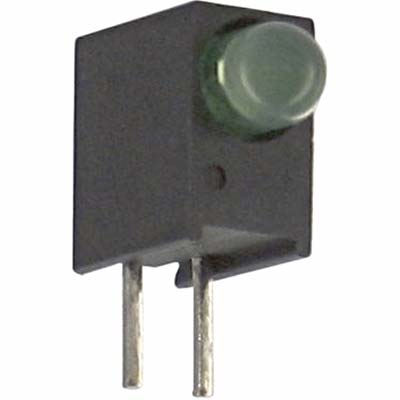

Indicator Light LED PCB Mount 3mm Bulb .200 in. High Centerline Green 16mcd | Dialight 551-0207F
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 551-0207F by Dialight and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 551-0207F
| Part Name | 551-0207F |
| Manufacturer | Dialight |
| Category | Electronic Components |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Lens Colour | Green |
| Dominant Wavelength | 563 nm |
| Dimensions | 8.89 x 4.32 x 7.11 (mm) |
| Mounting Type | Through Hole |
| Forward Current (A) | 60 (mA) |
| Lens Finish | Diffused, Tinted |
| Viewing Angle | 45 ° |
| Height | 7.11 (mm) |
| Width | 4.32 (mm) |
| Intensity | 16 (mcd) |
| Number Of Leds | 1 |
| Length | 8.89 (mm) |
| Led Colour(S) | Green |
| Number Of Pins | 2 |
| Led Size | 3mm (T-1) |
| Configuration | Single |
| Led Orientation | Right Angle |
Inventory for the 551-0207F by Dialight from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
|
|
Visit Site | |
|
★ Featured
|
3,800
|
420 x $0.83
|
Visit Site | |
| Mouser |
|
|
Visit Site | |
| Onlinecomponents |
900
|
|
Visit Site | |
| RS Americas |
69
|
|
Visit Site | |
| Verical |
900
|
|
Visit Site |
No issues have been reported for the 551-0207F
