553-0112F

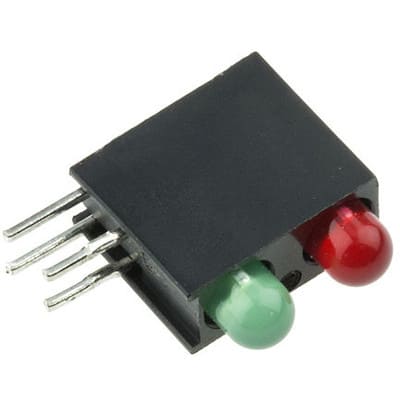

LED Circuit Board Indicator 3mm Bulb Green/Red Bi-Level Hi Diffused Tinted 16mcd | Dialight 553-0112F
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 553-0112F by Dialight and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 553-0112F
| Part Name | 553-0112F |
| Manufacturer | Dialight |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Number Of Leds | 2 |
| Dimensions | 8.1 x 4.3 x 9.7 (mm) |
| Mounting Type | Through Hole |
| Dominant Wavelength | 563 / 650 nm |
| Viewing Angle | 45 ° |
| Height | 9.7 (mm) |
| Width | 4.3 (mm) |
| Intensity | 16|10 (mcd) |
| Length | 8.1 (mm) |
| Supply Voltage (V) | 3 V |
| Led Colour(S) | Green, Red |
| Number Of Pins | 4 |
| Led Orientation | Right Angle |
