553443-5
SOLIS SP SPD22-16COM22-18MIL839 | TE Connectivity 553443-5
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 553443-5 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

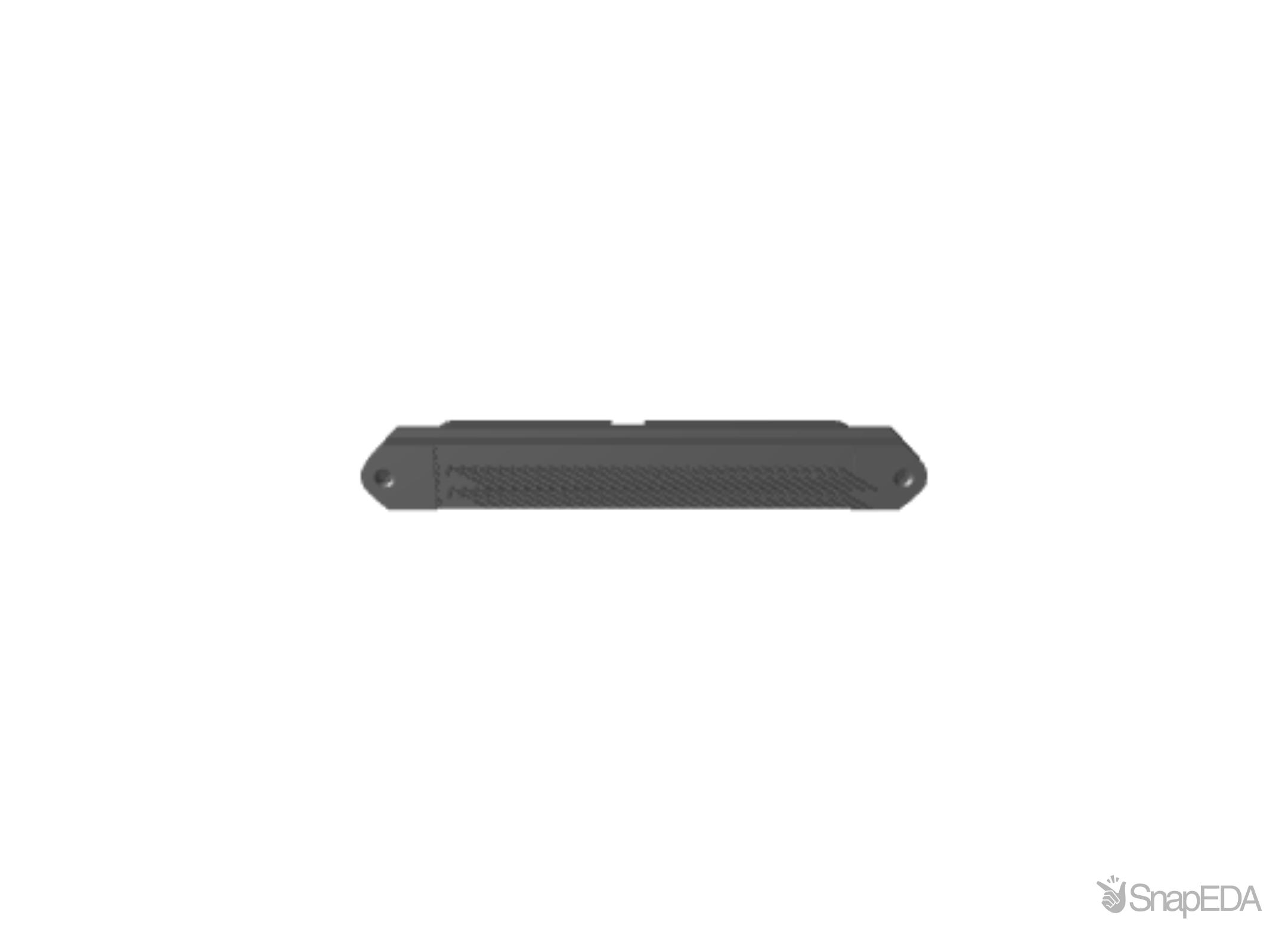

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 553443-5
| Part Name | 553443-5 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Centerline (Pitch) | .085 |
| Grounded | No |
| Circuit Application | Signal |
| Housing Material | Polyester |
| Row-to-Row Spacing | .085 |
| Connector & Contact Terminates To | Printed Circuit Board |
| Connector Style | Receptacle |
| Number of Positions | 64 |
| PCB Mount Retention Type | Action/Compliant Tail |
| Profile | Standard |
| PCB Mount Retention | With |
| PCB Thickness (Recommended) | .062 – .125 |
| TE Internal Number | 553443-5 |
| PCB Mount Orientation | Vertical |
| Connector System | Cable-to-Board |
| Shielded | No |
| Number of Rows | 2 |
| Housing Color | Black |
| Product Type | Connector |
| Connector Mounting Type | Board Mount |
| Panel Attachment Style | Rear Mount |
| Operating Temperature Range | -55 – 105 |
| Mounting Hole Diameter | 3.3 |
| Packaging Method | Tray |
| Packaging Quantity | 20 |
| Sealable | No |
| Contact Mating Area Plating Material | Gold |
| RoHS | True |
| PCB Mounting Style | Through Hole |
| Contact Base Material | Copper Alloy |
| Orientation | Standard |
| Termination Post Length | 4.58 |
| Color | Natural |
| UL Flammability Rating | UL 94V-0 |
| Panel Mount Feature | With |
| Contact Current Rating (Max) (A) | 3 |
| Contact Mating Area Plating Thickness | .76 |
| Preloaded | Yes |
| Mating Connector Lock | Without |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
