5557730-1

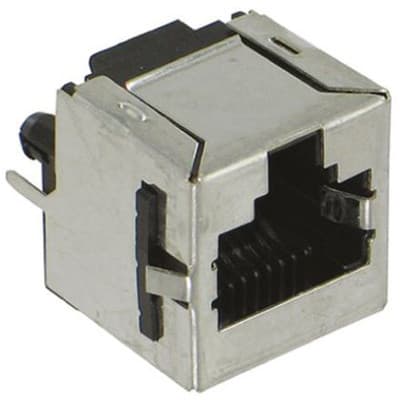

Single Port Modular Jack CAT3 RJ45 8Contacts | TE Connectivity 5557730-1
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 5557730-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 5557730-1
| Part Name | 5557730-1 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| コネクタ製品タイプ | Connector Assembly |
| 端子の下地めっきの材料 | Nickel |
| Centerline (Pitch) | .04 |
| Circuit Application | Signal |
| Port Configuration | Single Port |
| Connector Product Type | Connector Assembly |
| Modular Jack Latch Orientation | Standard - Latch Down |
| Housing Material | Polyester Moulding Compound |
| PCB Ground Tab Location | 2.95 |
| Connector & Contact Terminates To | Printed Circuit Board |
| Number of Positions | 8 |
| Number of Loaded Positions | 8 |
| Panel Mount Feature | With |
| PCB Thickness (Recommended) | .062 |
| Connectors & Connector Components Type | Connector |
| TE Internal Number | 5557730-1 |
| PCB Tail Length | 3.18 |
| PCB Mount Orientation | Vertical |
| Status Indicator | None |
| Connector Height | .658 |
| Housing Color | Black |
| Contact Underplating Material | Nickel |
| Contact Base Material | Phosphor Bronze |
| Connector Mounting Type | Panel |
| Operating Temperature Range | -40 – 185 |
| Shielded | Yes |
| Mating Entry Location | Top |
| Port Matrix Configuration | 1 x 1 |
| Packaging Method | Package |
| Packaging Quantity | 128 |
| Keyed | Yes |
| Modular Jacks & Plugs Products | RJ Type Jacks & Plugs |
| Contact Mating Area Plating Material | Gold |
| Panel Mount Feature Type | Panel Stops |
| Modular Jack & Plug Interface Type | RJ45 |
| RoHS | True |
| Connector Contact Density | Standard |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Shield Plating Material | Tin |
| Number of PCB Ground Tabs | 2 |
| Modular Connector Style | Jack |
| Shield Material | Copper Alloy |
| Performance Category | Cat 3 |
| UL Flammability Rating | UL 94V-0 |
| Contact Mating Area Plating Material Thickness | 1.27 |
| Grounding Options | PCB and Panel Ground |
| Contact Current Rating (Max) (A) | .2 |
| Connector Profile | Standard |
| PCB Contact Termination Area Plating Material | Tin |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Contact Material | Phosphor Bronze |
| Number Of Ways | 8 |
| Orientation | Vertical |
| Mounting Type | Through Hole |
| Width | 18.17 (mm) |
| Series | CGS TE |
| Shield Type | Shielded |
| Depth | 16.77 (mm) |
| Number Of Ports | 1 |
| Length | 16.77 (mm) |
| Ethernet Connector Type | RJ45 Connector |
| Contact Plating | Gold, Nickel Plated, Tin |
| Gender | Female |
| Lan Category | Cat3 |
| Series Number | 5557730 |
