5569984-2
SnapVerified
RJ11 Series 6 Pos 1x1 16.50mm Height 3.18mm Tail Length Through Hole Mod Jack
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 5569984-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

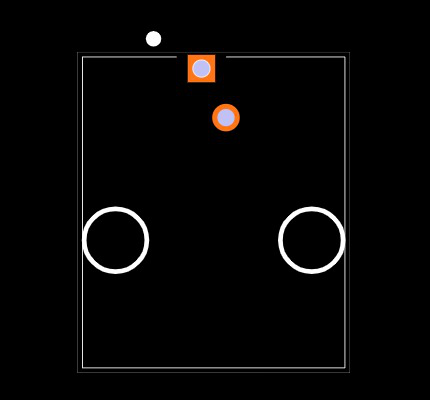

Footprint
No web preview
This Footprint is Available for

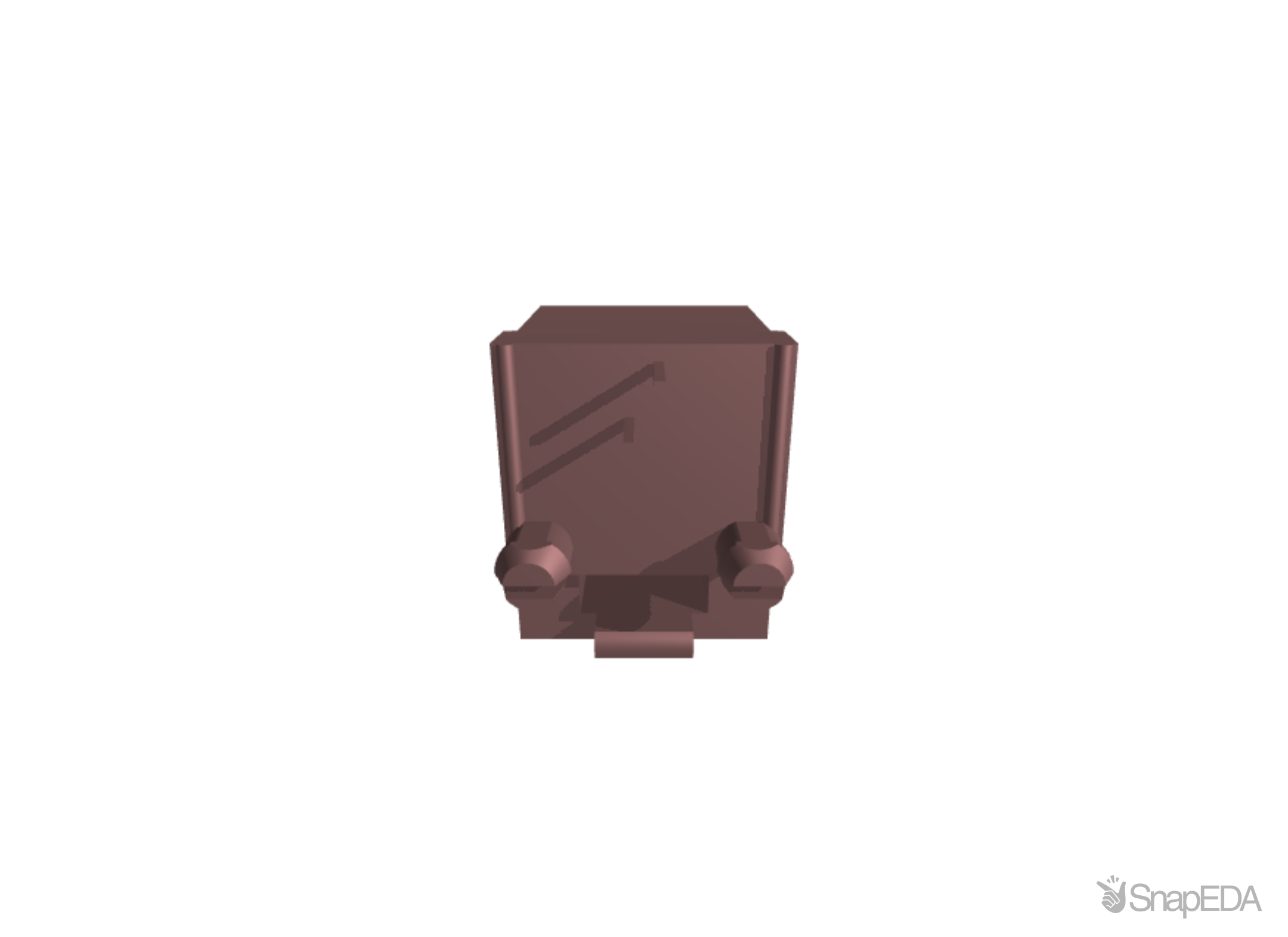

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 5569984-2
| Part Name | 5569984-2 |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | 1.02 |
| Circuit Application | Signal |
| Port Configuration | Single Port |
| UL Flammability Rating | UL 94V-0 |
| Housing Material | High Temperature Nylon |
| Connector & Contact Terminates To | Printed Circuit Board |
| Number of Positions | 6 |
| Grounding Options | None |
| PCB Thickness (Recommended) | 1.57 |
| Connectors & Connector Components Type | Connector |
| TE Internal Number | 5569984-2 |
| PCB Tail Length | .125 |
| PCB Mount Orientation | Right Angle |
| Connector System | Cable-to-Panel |
| Status Indicator | None |
| Connector Height | 16.5 |
| Housing Color | Black |
| Contact Underplating Material | Nickel |
| Contact Base Material | Phosphor Bronze |
| Connector Mounting Type | Board Mount |
| Operating Temperature Range | -40 – 185 |
| Shielded | No |
| Mating Entry Location | Top |
| Connector Profile | Standard |
| Packaging Method | Package |
| Packaging Quantity | 176 |
| Keyed | No |
| Modular Jacks & Plugs Products | RJ Type Jacks & Plugs |
| Contact Mating Area Plating Material | Gold |
| Modular Jack & Plug Interface Type | RJ11 |
| RoHS | True |
| Life Cycle Status | End of Life |
| Connector Contact Density | Standard |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| 端子の下地めっきの材料 | Nickel |
| Modular Connector Style | Jack |
| Performance Category | Cat 3 |
| Modular Jack Latch Orientation | Standard - Latch Down |
| Contact Mating Area Plating Material Thickness | 50 |
| Panel Mount Feature | With |
| Contact Current Rating (Max) (A) | .2 |
| Port Matrix Configuration | 1 x 1 |
| PCB Contact Termination Area Plating Material | Tin |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Number Of Ways | 2 |
| Orientation | Straight |
| Mounting Type | PCB Mount |
| Gender | Female |
| Shield Type | Unshielded |
| Depth | 16.01 (mm) |
| Width | 13.59 (mm) |
| Length | 16.51 (mm) |
| Ethernet Connector Type | RJ11 Connector |
| Contact Plating | Gold |
| Series | 5569984 |
| Lan Category | Cat3 |
| Contact Material | Phosphor Bronze |
