5645384-1
SnapVerified
Conn Power Card Edge SKT 36 POS 2.54mm Solder RA Thru-Hole Tray
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 5645384-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

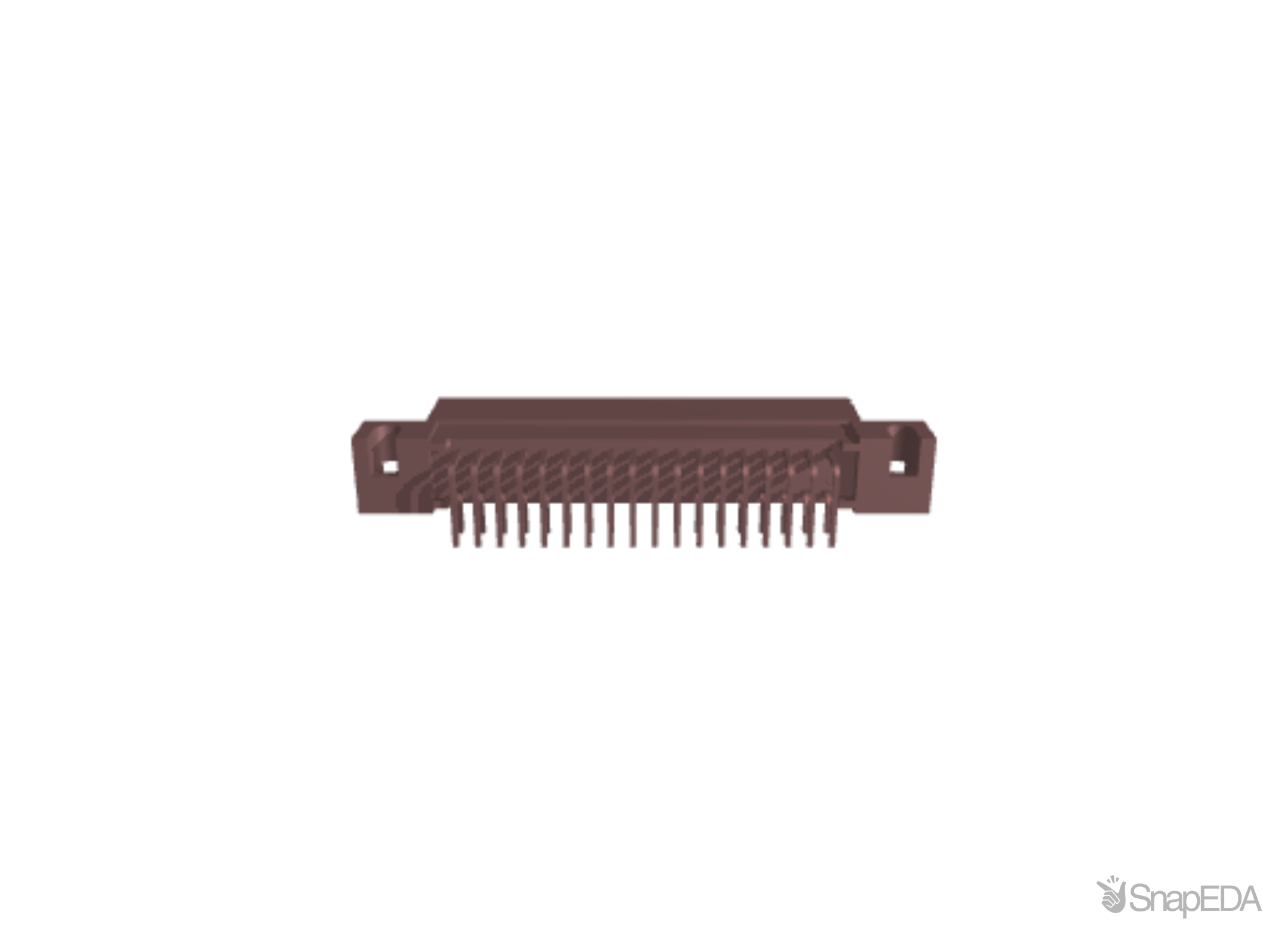

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 5645384-1
| Part Name | 5645384-1 |
| Manufacturer | TE Connectivity |
| Centerline (Pitch) | .1 |
| Circuit Application | Power & Signal |
| Contact Termination Area Plating Finish | Bright |
| Mating Retention | Without |
| Number of Power Positions | 36 |
| Operating Voltage (V) | 400 V |
| Connector & Contact Terminates To | Printed Circuit Board |
| PCB Mount Retention | Without |
| Connector System | Board-to-Board |
| Housing Material | Polyester GF |
| Termination Post & Tail Length | 2.29 |
| Anzahl der Einzelpositionen | 0 |
| TE Internal Number | 5645384-1 |
| PCB Mount Orientation | Right Angle |
| PCB Mount Alignment | Without |
| Number of Rows | 2 |
| Housing Color | Black |
| Contact Underplating Material | Nickel |
| Number of Dual Positions | 18 |
| Contact Base Material | Phosphor Bronze |
| Connector Mounting Type | Board Mount |
| Operating Temperature Range | -67 – 185 |
| Packaging Method | Tray |
| Housing Type | Receptacle |
| Card Slot Depth | 7.52 |
| Keying & Polarized Position Locations | 0 |
| Contact Termination Area Plating Material | Tin-Lead |
| Number of Positions | 36 |
| Packaging Quantity | 112 |
| Contact Mating Area Plating Material | Gold |
| Panel Mount Feature Type | Mounting Ears |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| 端子の下地めっきの材料 | Nickel |
| Mounting Ear Position | Low |
| UL Flammability Rating | UL 94V-0 |
| Height | .64 |
| Power Contact Centerline | .1 |
| Contact Current Rating (Max) (A) | 3 |
| Contact Mating Area Plating Thickness | .76 |
| Product Type | Connector Assembly |
| End Caps | Without |
| Contact Type | Socket |
| Contact Termination Area Plating Thickness | 2.54 |
| Position Locations Omitted | None |
| Mating Alignment | Without |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet |
Inventory for the 5645384-1 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
216
|
|
Visit Site |
No issues have been reported for the 5645384-1
