5645980-1
1 Position PC Pin Receptacles, Socket Press Fit Connector
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 5645980-1 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

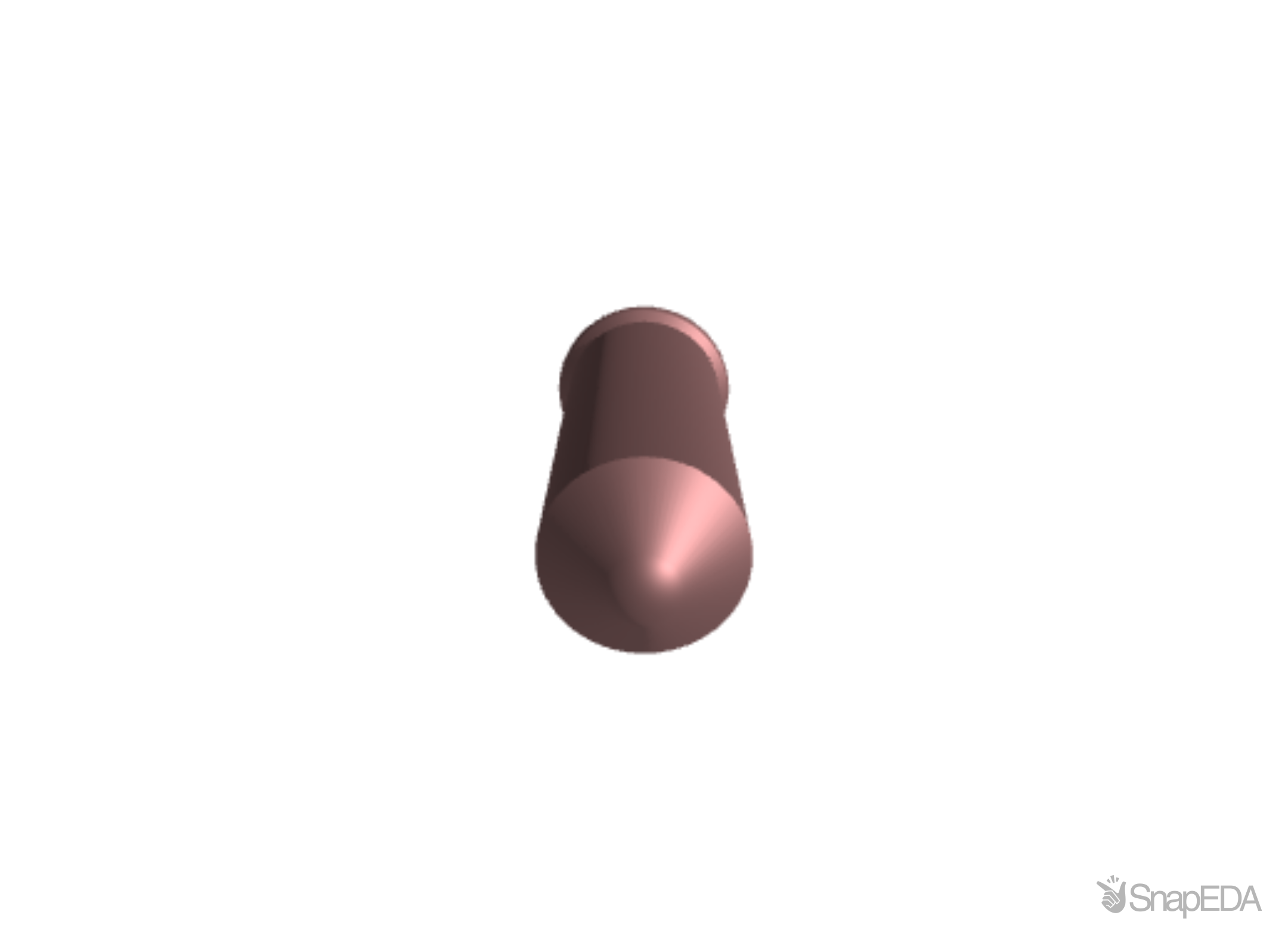

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 5645980-1
| Part Name | 5645980-1 |
| Manufacturer | TE Connectivity |
| Hole Size (Recommended) | .102 |
| Circuit Application | Power & Signal |
| Mating Pin Diameter Range | .042 – .049 |
| Sleeve Plating Material | Tin |
| Termination Method to Printed Circuit Board | Through Hole - Press-Fit |
| Wire/Cable Type | Discrete Wire |
| Connector & Contact Terminates To | Printed Circuit Board |
| Profile | Zero |
| Termination Method to Wire & Cable | Solder |
| PCB Thickness (Recommended) | .79 – 3.18 |
| Insertion Method | Hand/Semi-Automatic |
| Sleeve Style | Bullet Nose |
| TE Internal Number | 5645980-1 |
| Connector System | Cable-to-Board |
| Spring Material | Beryllium Copper |
| Contact Base Material | Beryllium Copper |
| Contact Transmits (Typical) | Signal (Data)/Power |
| Contact Spring Plating Material | Tin |
| Operating Temperature Range | -85 – 257 |
| Sleeve Material | Copper |
| Packaging Method | Loose Piece |
| Packaging Quantity | 2000 |
| RoHS | True |
| Sealant | No |
| Product Type | Contact |
| Contact Spring Plating Thickness | 2.54 |
| Socket Type | Discrete |
| Contact Current Rating (Max) (A) | 7.5 |
| Contact Mating Area Plating Thickness | 30 |
| Contact Type | Socket |
| Wire Size | .823 – 1.04 |
| Socket Length | 7.82 |
| Sealable | No |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
