5650712-1
SnapVerified
Conn Card Edge SKT 30 POS 1.27mm Solder ST Thru-Hole Box
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 5650712-1 by TE Connectivity AMP Connectors and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for

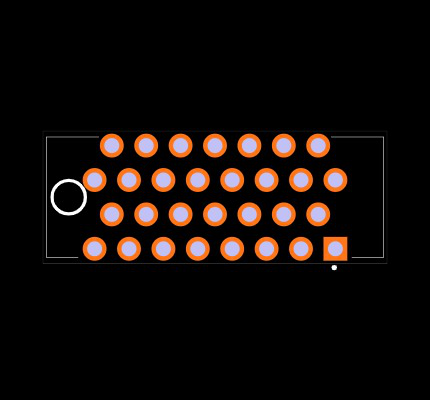

Footprint
No web preview
This Footprint is Available for

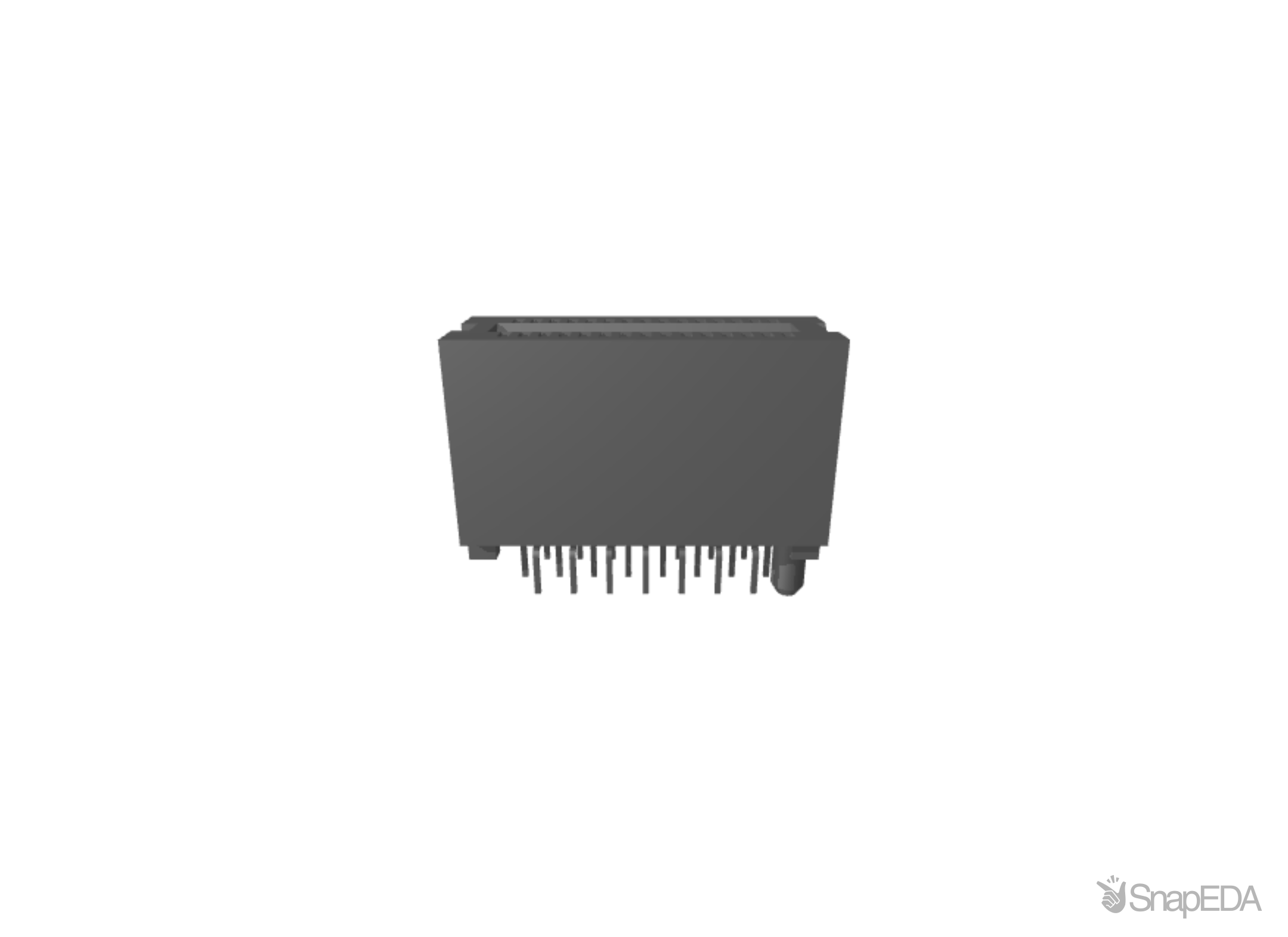

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 5650712-1
| Part Name | 5650712-1 |
| Manufacturer | TE Connectivity |
| Zeilenanzahl | 2 |
| Centerline (Pitch) | .05 |
| Circuit Application | Signal |
| Housing Material | High Temperature Thermoplastic |
| Connector & Contact Terminates To | Printed Circuit Board |
| Operating Voltage (V) | 203 |
| Connector Style | Receptacle |
| Height | .55 |
| Number of Positions | 30 |
| PCB Mount Retention Type | Boardlock |
| PCB Mount Retention | With |
| Connector System | Board-to-Board |
| Termination Post & Tail Length | 2.54 |
| TE Internal Number | 5650712-1 |
| PCB Mount Orientation | Vertical |
| PCB Mount Alignment | With |
| Housing Color | Brown |
| Contact Underplating Material | Nickel |
| Number of Dual Positions | 15 |
| Contact Base Material | Phosphor Bronze |
| Connector Mounting Type | Board Mount |
| PCB Contact Termination Area Plating Material Thickness | 100 |
| Mating Retention | Without |
| Operating Temperature Range | -55 – 85 |
| Packaging Method | Box |
| Card Slot Depth | 7.62 |
| Packaging Quantity | 35 |
| Contact Mating Area Plating Material | Gold |
| RoHS | True |
| Termination Method to Printed Circuit Board | Through Hole - Solder |
| Daughter Board Thickness | 1.37 – 1.78 |
| 端子の下地めっきの材料 | Nickel |
| Contact Mating Area Plating Material Thickness | .76 |
| Contact Current Rating (Max) (A) | 1 |
| Connector Contact Load Condition | Fully Loaded |
| PCB Contact Termination Area Plating Material Finish | Bright |
| Contact Type | Socket |
| PCB Contact Termination Area Plating Material | Tin-Lead |
| Board-to-Board Configuration | Parallel |
| Mating Alignment | Without |
