57202G5214LF

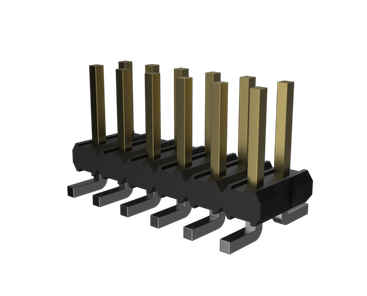

HEADER, VERT, 28WAY; Pitch Spacing:2mm; No. of Contacts:28Contacts; Gender:Header; Product Range:Minitek 57202 Series; Contact Termination Type:Solder; No. of Rows:2Rows; Contact Plating:Gold Plated Contacts; Contact Material:Phosphor Bronze; SVHC:No SVHC (15-Jan-2019); Colour:Black; Contact Resistance:25mohm; Contact Termination:Solder; Current Rating:2A; Flammability Rating:UL94V-0; Insulation Resistance:1000Mohm; Lead Spacing:2mm; Material:High Temperature Thermoplastic; No. of Mating Cycles:100; Operating Temperature Max:125°C; Operating Temperature Min:-55°C; Row Pitch:2mm; Termination Method:Solder; Voltage Rating VAC:200V; Withstand Voltage:650V
Availability: Out of Stock
What is SnapEDA?
SnapEDA is a free library of symbols & footprints for the 57202G5214LF by Amphenol and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 24 hours!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 57202G5214LF
| Part Name | 57202G5214LF |
| Manufacturer | Amphenol |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
We could not find inventory or pricing across major distributors for the 57202G5214LF by Amphenol.
