5745652-2
Hood, D-Sub, 15Pos, 90DegExit, AMP, Die-CastMetal, 0.375In.CblDia, EMI/RFIShield | TE Connectivity 5745652-2
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the 5745652-2 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

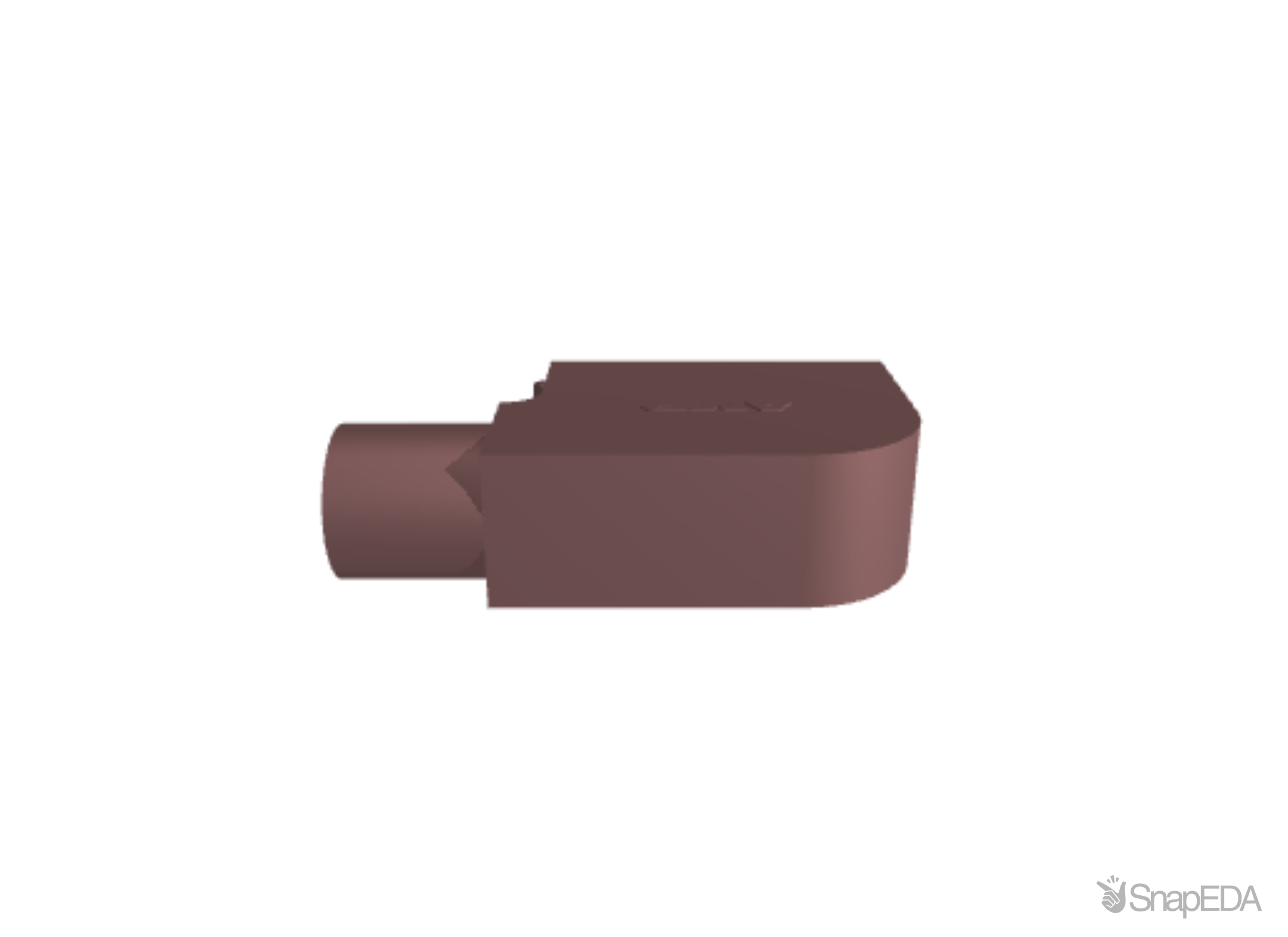

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the 5745652-2
| Part Name | 5745652-2 |
| Manufacturer | TE Connectivity |
| Category | Connectors |
| Shield Plating Finish | Bright |
| Slide Latch | With |
| Shell Size | 2 |
| Number of Positions | 15 |
| Cable Clamp Material | Zinc Alloy |
| Screw & Hole Thread Size | 4-40 |
| TE Internal Number | 5745652-2 |
| Connector & Contact Terminates To | Wire & Cable |
| Cable Clamp Type | Two-Piece RFI/EMI Shield |
| Product Type | Accessory |
| Cable Insulation Diameter | 9.53 |
| Operating Temperature Range | -55 – 105 |
| Shielded | Yes |
| Packaging Method | Bag |
| Packaging Quantity | 1 |
| Cable Exit Angle | 90 |
| Grommets | Without |
| RoHS | True |
| Shield Plating Material | Nickel over Copper |
| Slide Latch Material | Stainless Steel |
| Accessory Type | Strain Relief Kit |
| Cable Clamp Plating Material | Nickel over Copper |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Series | AMPLIMITE |
| Colour | Silver |
| Housing Material | Zinc |
| D Sub Shell Size | A |
| Number Of Contacts | 15 |
| Body Orientation | Right Angle |
